In-circuit programming and debugging

In the in-circuit debugging/programming configuration, STice allows the application to be
programmed in the microcontroller and for the application to be debugged while it runs on
the microcontroller on the application board. STice supports the SWIM protocol, making it
possible to in-circuit program and debug the microcontroller using only one general purpose
I/O.
In both the emulation and the in-circuit programming/debugging configuration, STice is
driven by the ST visual develop (STVD) or ST visual programmer (STVP) integrated
development environment running on the host PC. This provides total control of advanced
application building, debugging and programming features from a single easy-to-use
interface.

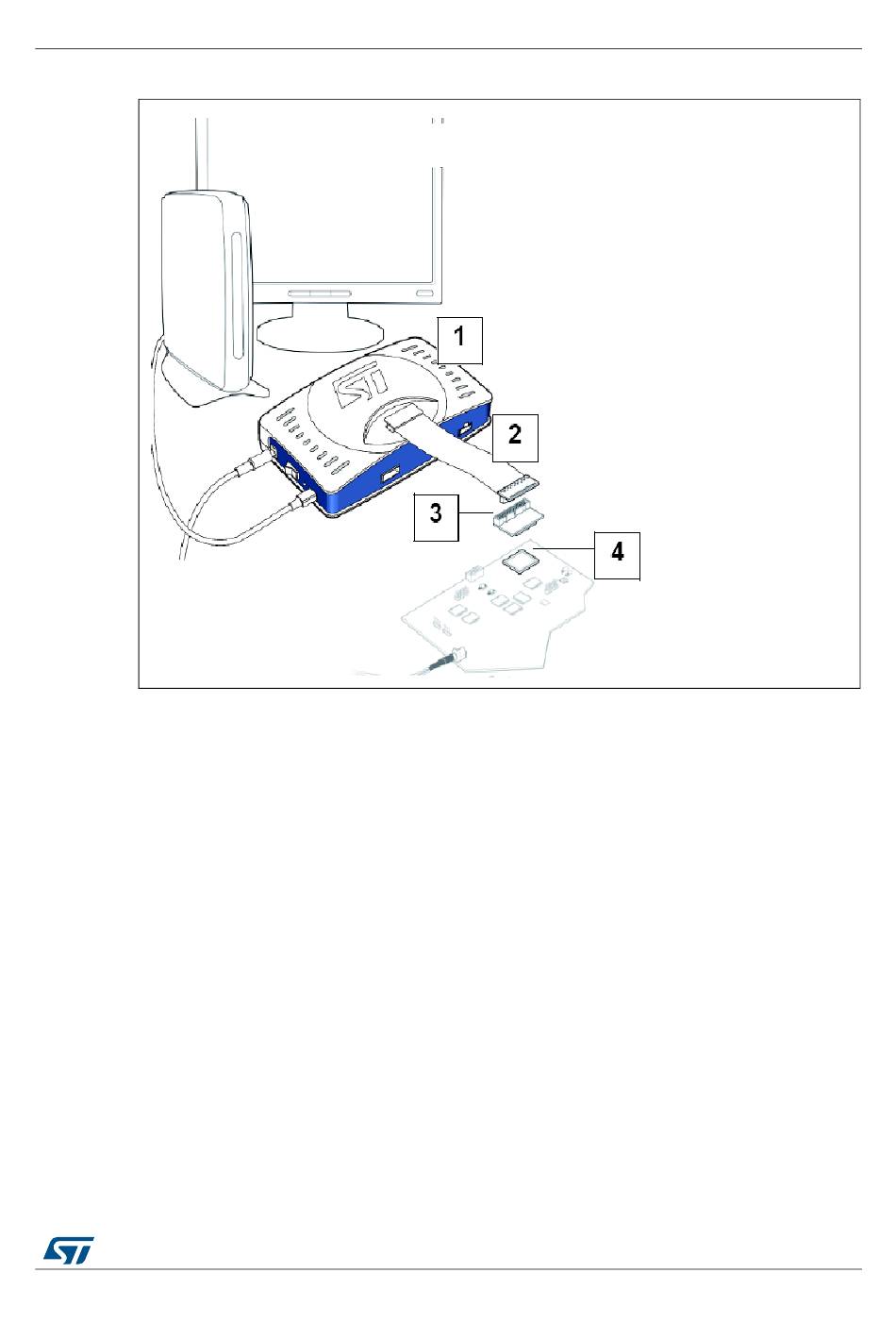

Figure 14. STice in emulation configuration

Free ST/STM8 toolset: STVD and STVP running on your PCdrive STice
AD/xxxx: Connection
adapter to link connection
cable to microcontroller
STice-SYSxxx: Includes all emulation resources, MEB, TEB,
CF/FPxxx: Connection flex to connect to application board
