ATTACH A STEEL-FRAMED STYLE BACKBOARD

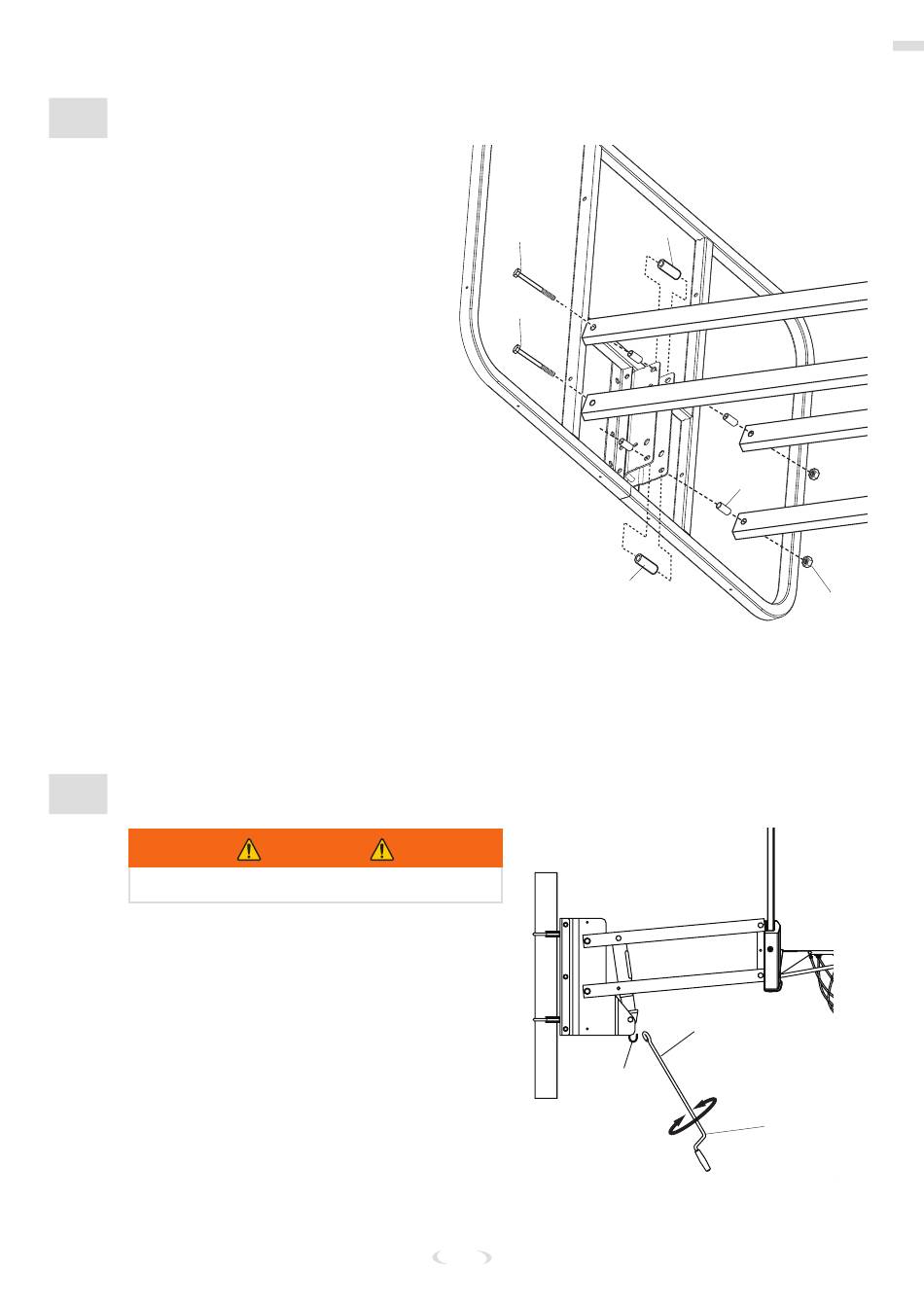

1. Attach backboard using hardware
shown.

Operation

J
ADJUSTING THE HEIGHT
DO NOT ALLOW CHILDREN TO ADJUST THE HEIGHT.
1. Position the looped end of the crank (22) onto
the hook.
2. Rotate the crank handle to raise or lower the
backboard.
HEIGHT ADJUSTMENT
WARNING
TO ADJUST BACKBOARD:
Position looped end of
crank onto hook as shown.
Rotate crank handle to
raise or lower backboard
#6
#6
#25
Hook
21
#25
#15
Crank
#22
