SPALDING U-Turn Lift System Owner's Manual page 13

Universal elevator mount
Table of Contents

Advertisement

Hardware for these procedures are not included due to various roof and wall construction materials and design structure.
D

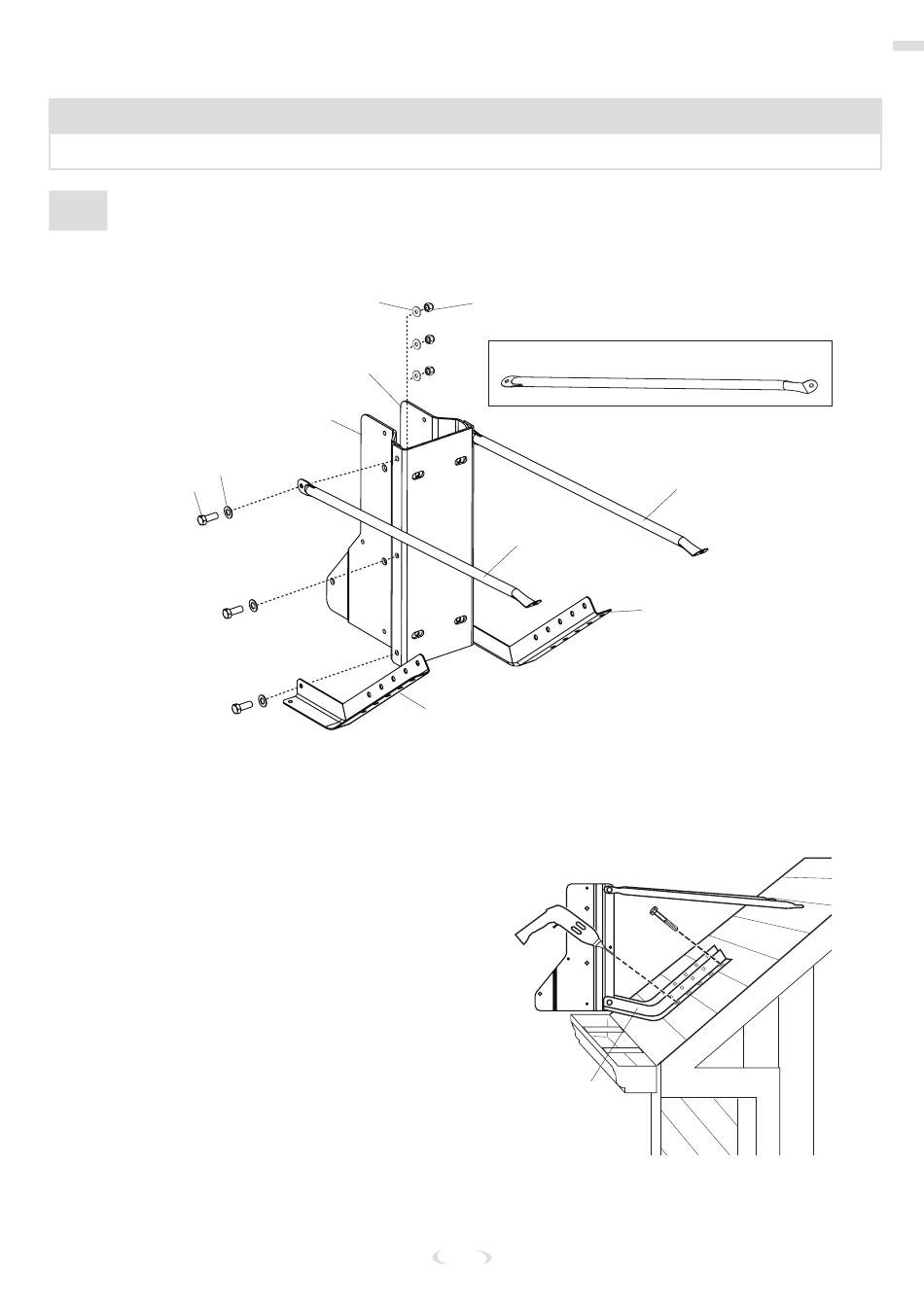

INSTALL THE ELEVATOR MOUNT TO A FLAT OR ANGLED ROOF
1. Attach struts (23), angle brackets (26 & 27), and jack support brackets (18 & 19) to pole bracket
(17) with bolts (3), washers (9) and nuts (11) as shown.
#9
#3
2. Drill holes in roof. Position angled brackets
and secure to roof.
NOTE
#9
#11
#19
#18
#26
13
To U-Channel
#23
#27
#26 & #27
Assemble the Elevator Mount
To Roof
#23
