Backboard Mounting

Required Parts:
#4 Spacer, 1 .8 Long
#8 Locknut, Hex Head, 1/2-13
#16 Spacer, Metal, .75 O .D ., 4" Long
Section G-I are options for backboard mounting.
Backboard and frame style will vary.
Follow instructions that are packaged with backboard for specific assembly details.
G

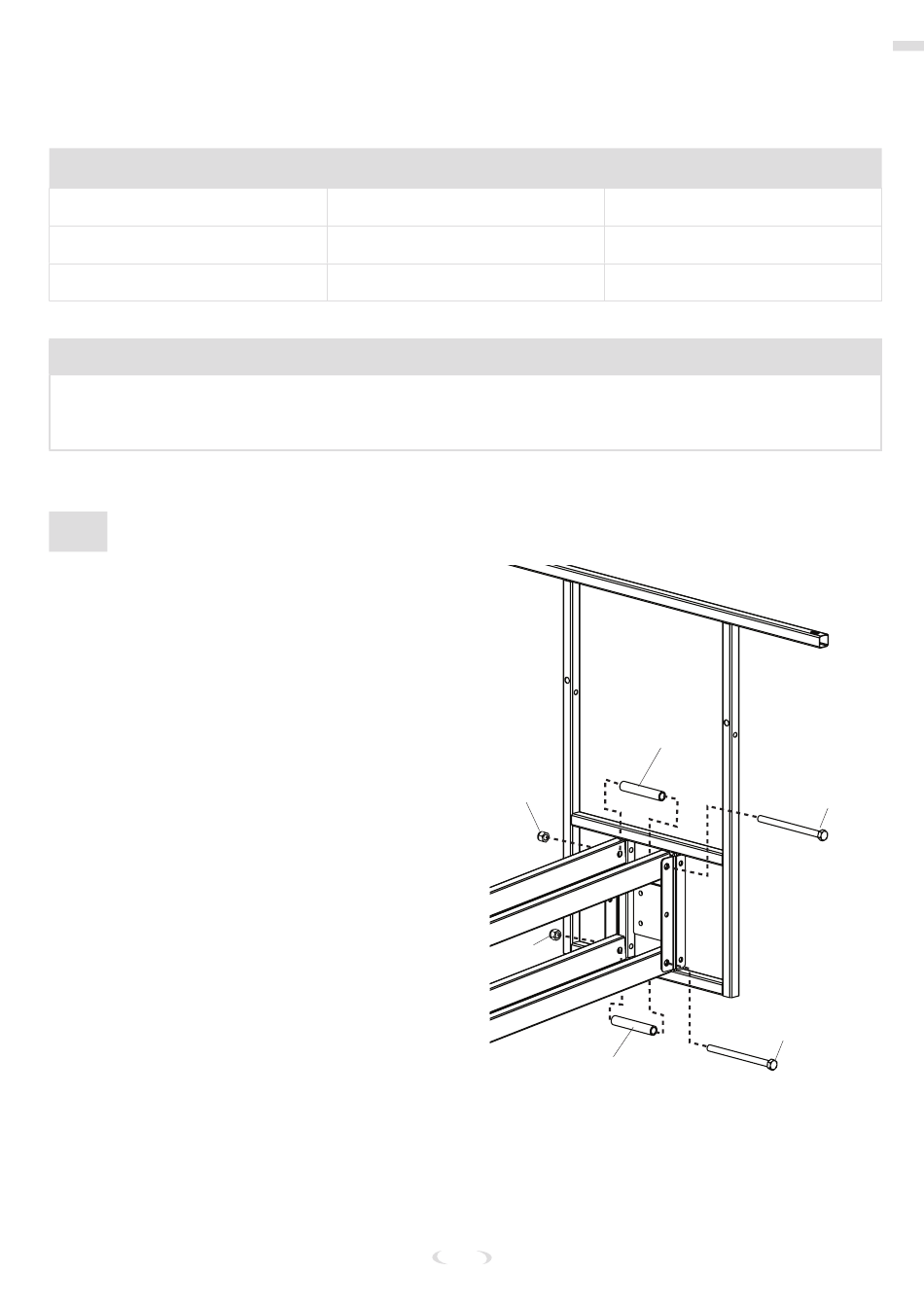

ATTACH AN H-FRAME STYLE BACKBOARD
1. Attach backboard using hardware
shown.
#5 Bolt, Hex Head, 1/4-20 x 2-1/4" Long
#13 Nut, Hex, Locking 1/4-20
#20 Bracket, Elevator
NOTE
#8
19
#6 Bolt, Hex Head, 1/2-13 x 7" Long
#15 Spacer, Plastic, 1" Long
#25 Spacer, Plastic, .73 O .D ., 1 .7" Long
#16
#8
#16
Backboard Mounting
#6
#6
