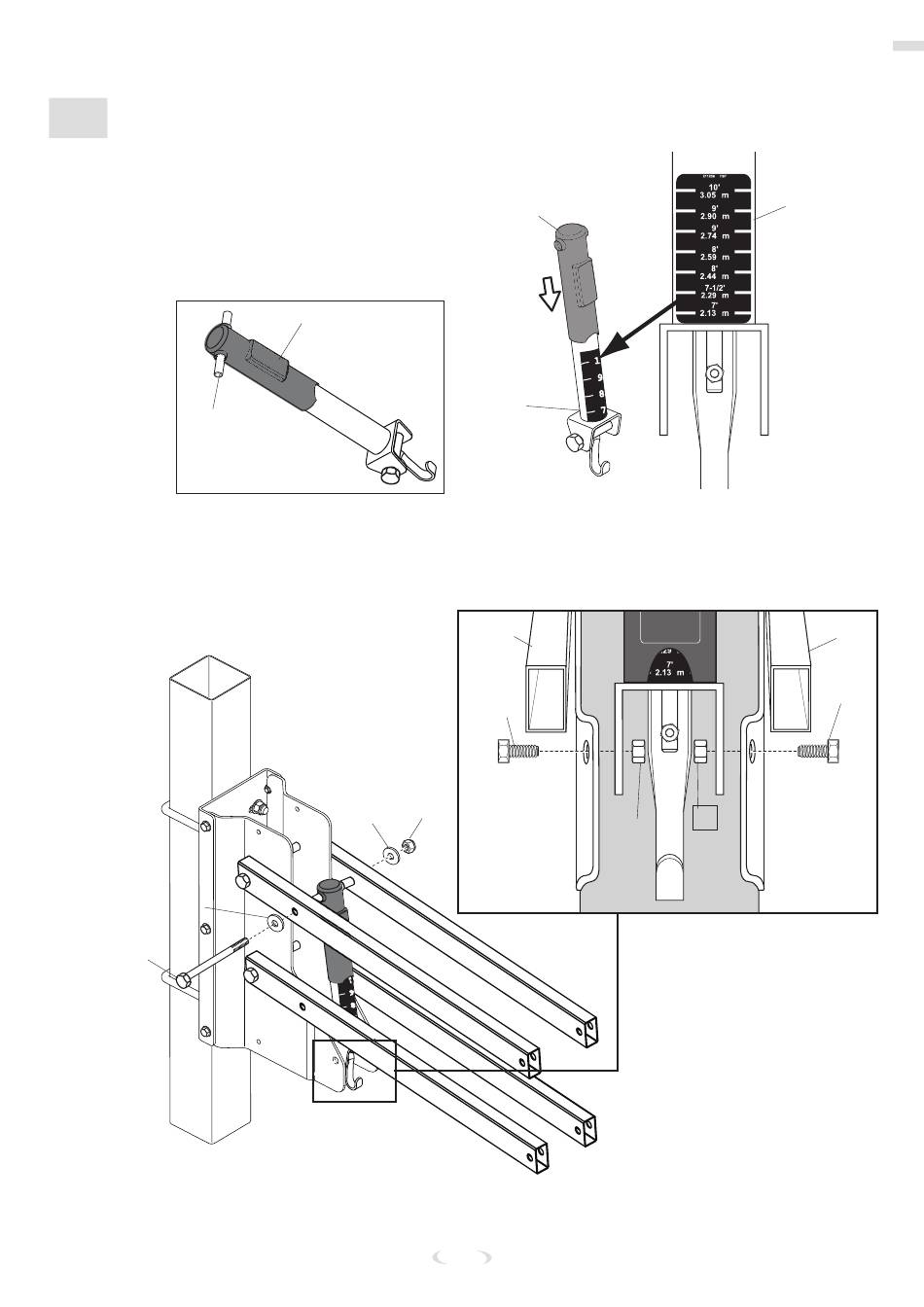

ASSEMBLE THE ELEVATOR
3. Attach height decal (28) on screw jack
(24). Align lower edge of decal (28)
with screw jack bottom.
4. Place cover (21) over screw jack (24).
5. Insert spacer (16) into screw jack
assembly (24) as shown.
6. Install screw jack assembly (24) using bolts (6 & 14), washer (10) and nut (8) as shown.
#10
#6
#21
#16
#10
#21
#24
#30
#14
#8
17
Assemble the Elevator Structure/Mechanism
#8
#8
#28
#30
#14
