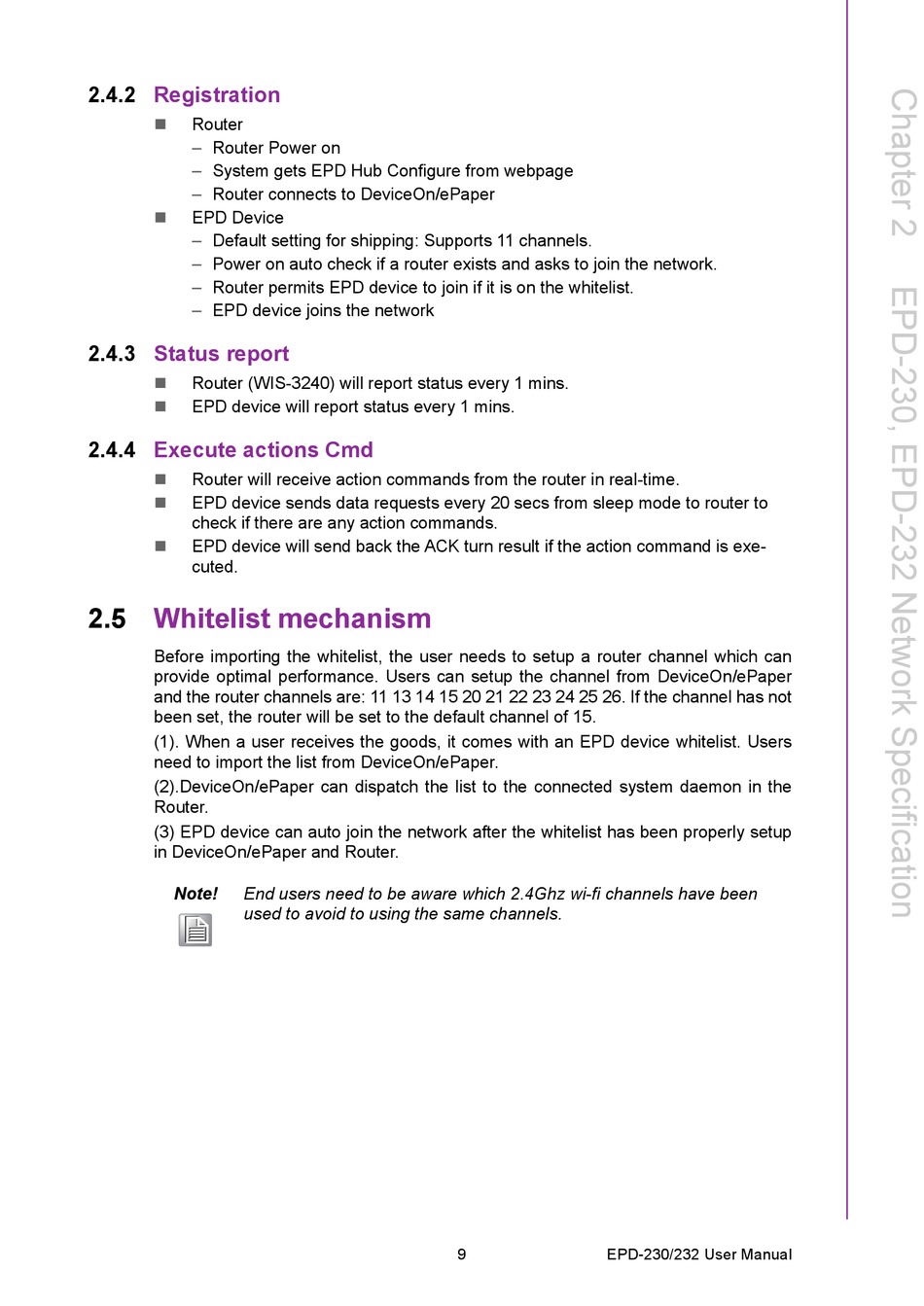

2.4.2

Registration

Router

– Router Power on
– System gets EPD Hub Configure from webpage
– Router connects to DeviceOn/ePaper
EPD Device

– Default setting for shipping: Supports 11 channels.
– Power on auto check if a router exists and asks to join the network.
– Router permits EPD device to join if it is on the whitelist.
– EPD device joins the network
2.4.3

Status report

Router (WIS-3240) will report status every 1 mins.

EPD device will report status every 1 mins.

2.4.4

Execute actions Cmd

Router will receive action commands from the router in real-time.

EPD device sends data requests every 20 secs from sleep mode to router to

check if there are any action commands.
EPD device will send back the ACK turn result if the action command is exe-

cuted.
2.5

Whitelist mechanism

Before importing the whitelist, the user needs to setup a router channel which can
provide optimal performance. Users can setup the channel from DeviceOn/ePaper
and the router channels are: 11 13 14 15 20 21 22 23 24 25 26. If the channel has not
been set, the router will be set to the default channel of 15.
(1). When a user receives the goods, it comes with an EPD device whitelist. Users
need to import the list from DeviceOn/ePaper.
(2).DeviceOn/ePaper can dispatch the list to the connected system daemon in the
Router.
(3) EPD device can auto join the network after the whitelist has been properly setup
in DeviceOn/ePaper and Router.
Note!
End users need to be aware which 2.4Ghz wi-fi channels have been
used to avoid to using the same channels.
9 EPD-230/232 User Manual
