Single Power Source Connections

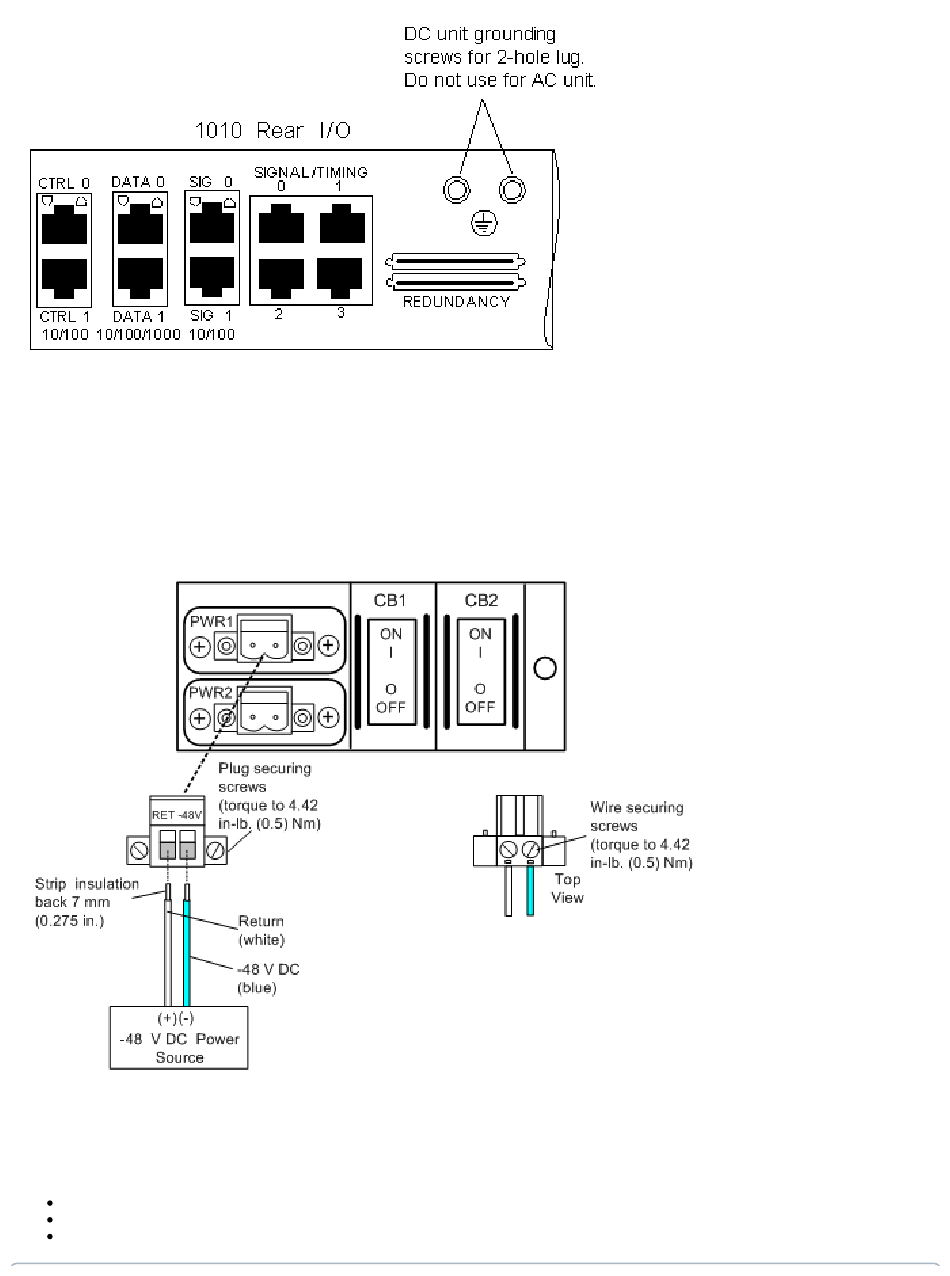

The DC Power Module displayed below is located at the rear of the docking station. Connect power as displayed in diagram below. Internally the
output of the DC power module connects to a panel-mounted connector via a cable assembly. This connector mates with a DC-to-DC 12 V DC
power supply connector on the tray.

DC Connections

Follow the steps below when connecting a single DC Power Source to the DC power module.
Ensure both circuit breakers on the DC power module are set to OFF (O).
Turn power OFF at power source.
Route the RET and -48V wires from the external power source to the DC power module plug. Secure the wires to the plug with screws.
