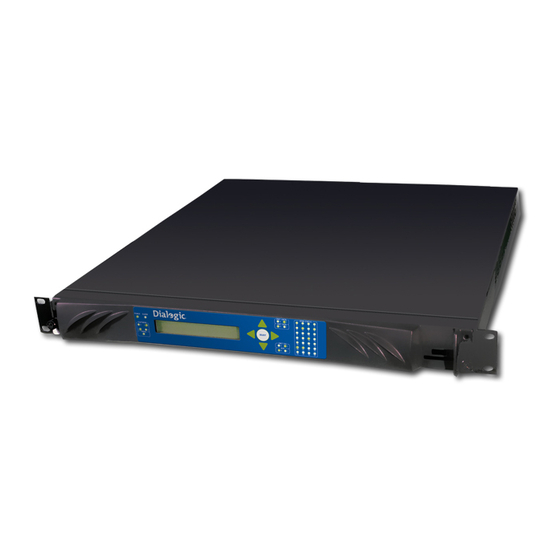

Dialogic img 1010 integrated media gateway
Hide thumbs
Also See for IMG 1010:
- Quick start manual (18 pages) ,
- Installation instructions manual (9 pages) ,
- Installation and setup manual (169 pages)
Related Manuals for Dialogic IMG 1010
Summary of Contents for Dialogic IMG 1010

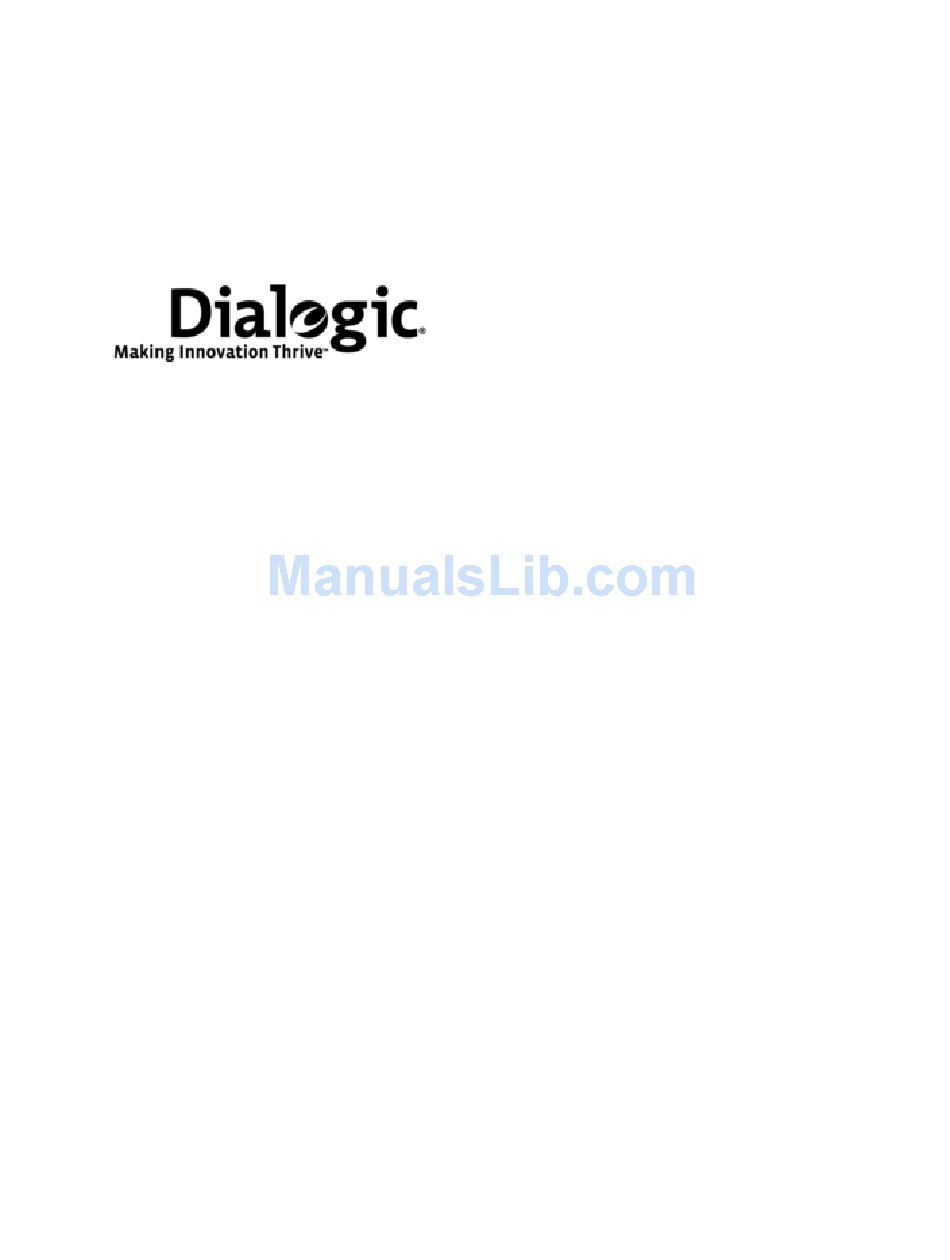

- Page 1 ® Dialogic IMG 1010 Integrated Media Gateway Quick Start Guide April 2009 07-8728-04 www.dialogic.com...
-
Page 2: Copyright And Legal Notice
INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT OF A THIRD PARTY. Dialogic products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications. -
Page 3: Hardware Limited Warranty
Dialogic's option. Dialogic will not accept C.O.D. shipments. Dialogic reserves the right to refuse to repair or replace any Product which shows signs of abuse, misuse, neglect or has been... -
Page 4: Connecting Ac Power
Connecting AC Power Power Specifications If the IMG 1010 is powered by AC voltage then the AC input power must conform to the specifications in the table below. Insert one end of AC cord into rear of IMG 1010 and the other end into a grounded wall outlet, uninterruptible power supply (UPS), or surge protector. - Page 5 IMG 1010 Quick Start Guide -48vdc wiring When connecting -48 vdc to the IMG 1010, follow the instructions in the table and diagram below 14 AWG Machine Tool Wire (MTW) Blue = -48v White = -48v return DC Power Module Plugs Dialogic Supplied (In Plastic Bag) The DC power module plugs are polarity-sensitive.
-
Page 6: Grounding Img1010 (Dc Version Only)
IMG 1010 Quick Start Guide Grounding IMG1010 (DC Version Only) The DC version of the IMG 1010 should be connected to a true earth ground. To connect chassis to ground you will need the following equipment: 14-16 AWG machine tool wire (MTW) (green/yellow) •... -
Page 7: Connecting And Configuring Network Management Port 'Ctrl 0'
IMG 1010 along with the GCEMS server to download system software and start configuring the IMG 1010 using the ClientView GUI. On the rear of the IMG 1010 are the network interfaces. The first interface -CTRL 0- is a Fast Ethernet port dedicated to network management. -
Page 8: Connecting Data0 Port
Connecting DATA0 Port 1. The port DATA 0 that is located on the rear of the IMG 1010 is a Gigabit-Ethernet port and is dedicated to VoIP Bearer traffic. The DATA 0 port can be on either the same IP network as the management network, or can be connected to a separate network. -
Page 9: Connecting Tdm Signaling And Bearer Ports
Configuration > Node Configuration Wizard • Configuration > Basic Configuration • From here, the IMG 1010 can be configured for your network. Use the Online Manual Configuration, Clientview, and ClientView Pane sections to configure the IMG 1010. Dialogic Corporation Part # 07-8728-04...
