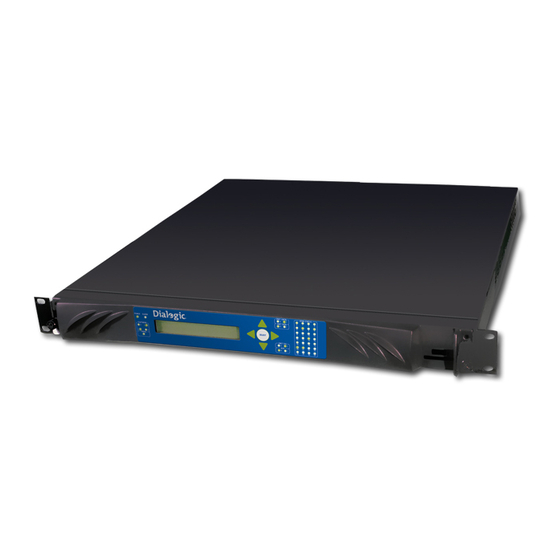

Dialogic IMG 1004 Quick Start Manual
Integrated media gateway
Hide thumbs
Also See for IMG 1004:
- Installation and setup manual (169 pages) ,
- Quick start manual (10 pages) ,
- Quick start manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for Dialogic IMG 1004
Summary of Contents for Dialogic IMG 1004
- Page 1 Dialogic ® IMG 1004 Integrated Media Gateway Quick Start Guide March 2010 07-8724-02 www.dialogic.com...
-
Page 2: Hardware Limited Warranty
DIALOGIC PRODUCTS INCLUDING LIABILITY OR WARRANTIES RELATING TO FITNESS FOR A PARTICULAR PURPOSE, MERCHANTABILITY, OR INFRINGEMENT OF ANY INTELLECTUAL PROPERTY RIGHT OF A THIRD PARTY. Dialogic products are not intended for use in medical, life saving, life sustaining, critical control or safety systems, or in nuclear facility applications. -
Page 3: Table Of Contents
Table Of Contents Table of Contents Revision history ..................... iv Overview ........................ 5 Shipping Information ....................5 Connecting AC Power ....................5 Power Specifications ..................... 5 AC Power Module ....................5 Configuring Linux on GCEMS server ................6 Connecting and Configuring Network Management Port „CTRL‟ ........7 Installing GCEMS Software. -
Page 4: Revision History
Revision history Revision Release date Notes 07-8754-02 April 2009 Last modified: 03/10/2010 Refer to http://www.dialogic.com for product updates and for information about support policies, warranty information, and service offerings. -
Page 5: Overview
The IMG 1004 is powered by an AC voltage. The AC input power must conform to the specifications in the table below. Insert one end of AC cord into rear of IMG 1004 and the other end into a grounded wall outlet, uninterruptible power supply (UPS), or surge protector. -
Page 6: Configuring Linux On Gcems Server
System and GCEMS application have already been installed. Downloading System Software to the IMG 1004 will be the next step to getting the IMG 1004 configured. See topics under IMG 1004-Installation and Setup Guide > IMG 1004-Software Installation and Setup in online documentation. -
Page 7: Connecting And Configuring Network Management Port „Ctrl
2. Once the cables are connected, configure FTP and DHCP on the GCEMS server. Locate the MAC address which is printed on a label located on the rear panel of the IMG 1004. This will be used in the dhcpd.conf file creation. -
Page 8: Installing Gcems Software
IMG_10.5.x.135.bin IMGUserInterface_10.5.x.135.bin NOTE: If you do not have a support contract with Dialogic, then the software supplied to you on the Software CD can be used. 3. Refer to the topics under the following headings in the Online Documentation to install the GCEMS software IMG 1004-Installation and Setup Guide >... -
Page 9: Connecting Data Port
Connecting DATA Port 1. The port DATA that is located on the rear of the IMG 1004 is a 100 Mbit port and is dedicated to VoIP Bearer traffic. The DATA port can be either on the same IP network as the management network, or can be connected to a separate network. -
Page 10: Connecting Tdm Signaling And Bearer Ports
Once the IMG 1004 has software installed, the cabling is connected, and the GCEMS server has been configured, the ClientView application can be used to configure the system. Below are a few topics from the Online Documentation to get started on configuring the IMG 1004 through the ClientView GUI.
