Page 1

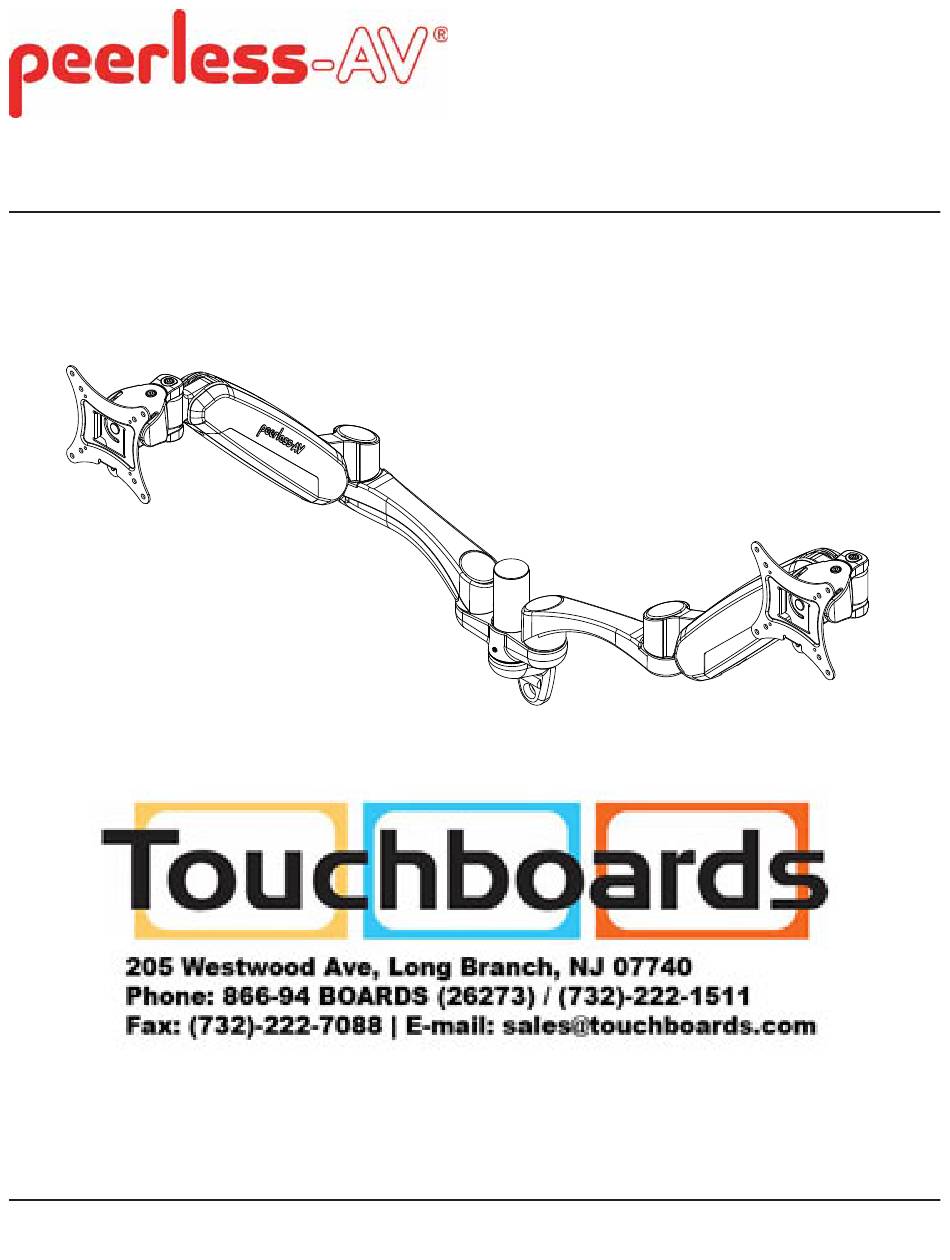

Dual Arm Wall Mount for 19" - 30" LCD Screens Models: LCW620AD Max Load Capacity per arm: 15 lbs (6.8 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 07-25-11 SHEET #: 090-9206-5 11-29-12...
Page 2
NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
Before you begin, make sure all parts shown are included with your product. Parts List LCW620AD Description A wall plate B double link arm assembly C wood screw D M6 washer E concrete anchor F M4 x 12 mm phillips screw...
Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is fi rmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
Installation to Solid Concrete and Cinder Block WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
Attaching Adapter Plate to Screen WARNING • Tighten screws so adapter plate is fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
Page 7
Insert dual arm support (O) onto wall plate (A) as shown in fi gure 3.1. Secure dual arm support (O) with one M6 x 8mm phillips screw (K), one M6 plastic washer (L) and fl at cover (N). Insert arm assembly (B) onto dual arm support (O) as shown in fi...
Page 8
Reinstall knobs through back of arm assemblies (B) and secure into back of adapter plates. Cables may be routed using cavity in arm assembly (B). Remove the cable cover on arm assembly (B) by pressing fi rmly in the middle of the cable cover and then pulling the fl...
Page 9
To lock down rotation, tighten set screw shown in detail 2. To lock down tilt, tighten screw shown in detail 3. To lock down swivel, tighten screw shown in detail 4. To lock down height adjustment, tighten set screw shown in detail 5. TILT SCREW SET SCREW DETAIL 3...
