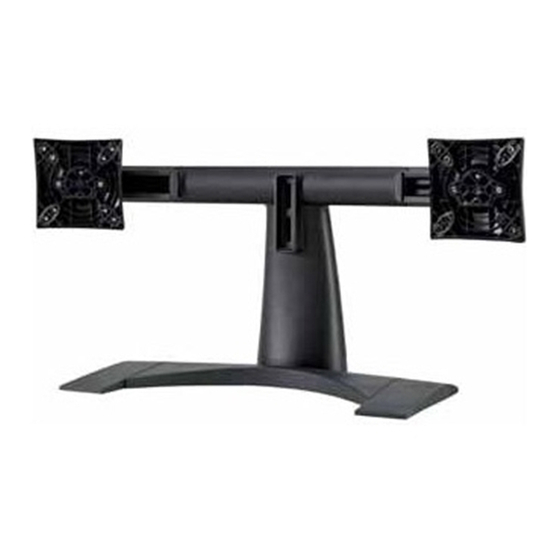

- Page 1 Dual-Screen Desktop Mount for 17" to 24" Displays Models: LCT-203 Max Load Capacity: 22.5 lb (10.2 kg) per arm 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 04-24-12 SHEET #: 090-9209-2 05-31-12...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor.
- Page 3 Before you begin, make sure all parts shown are included with your product. Parts list Description Qty. Part # A Dual arm assembly 1 125-5357 B VESA plate 2 125-5358 C arm cover 2 125-5360 D base 1 125-5359 E M10 flat head socket cap screw 1 520-1743 F M10 nut 1 520-1733...
- Page 4 Attaching VESA Plates to Display WARNING • Tighten screws so VESA plates are fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
- Page 5 Attach base (D) to arm assembly (A) using one M10 Attach VESA plates to dual arm assembly (A) fl at head screw (E), one M10 fl at washer (H), one using one M6 socket head screw (L) and one M6 M10 split lock washer (G), and one M10 hex nut (F).
- Page 6 ISSUED: 04-24-12 SHEET #: 090-9209-2 05-31-12 © 2012, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners. Peerless Industries, Inc. 2300 White Oak Circle Aurora, Il 60502 www.peerless-av.com...
- Page 7 Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product. This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state. www.peerless-av.com © 2012 Peerless Industries, Inc.
