Summary of Contents for peerless-AV LG-WMF86BH

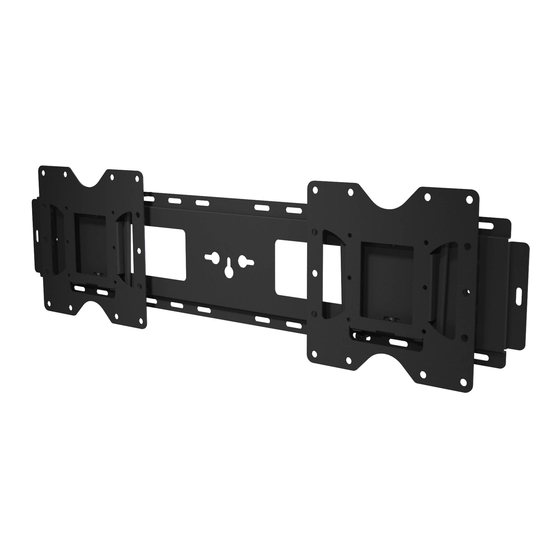

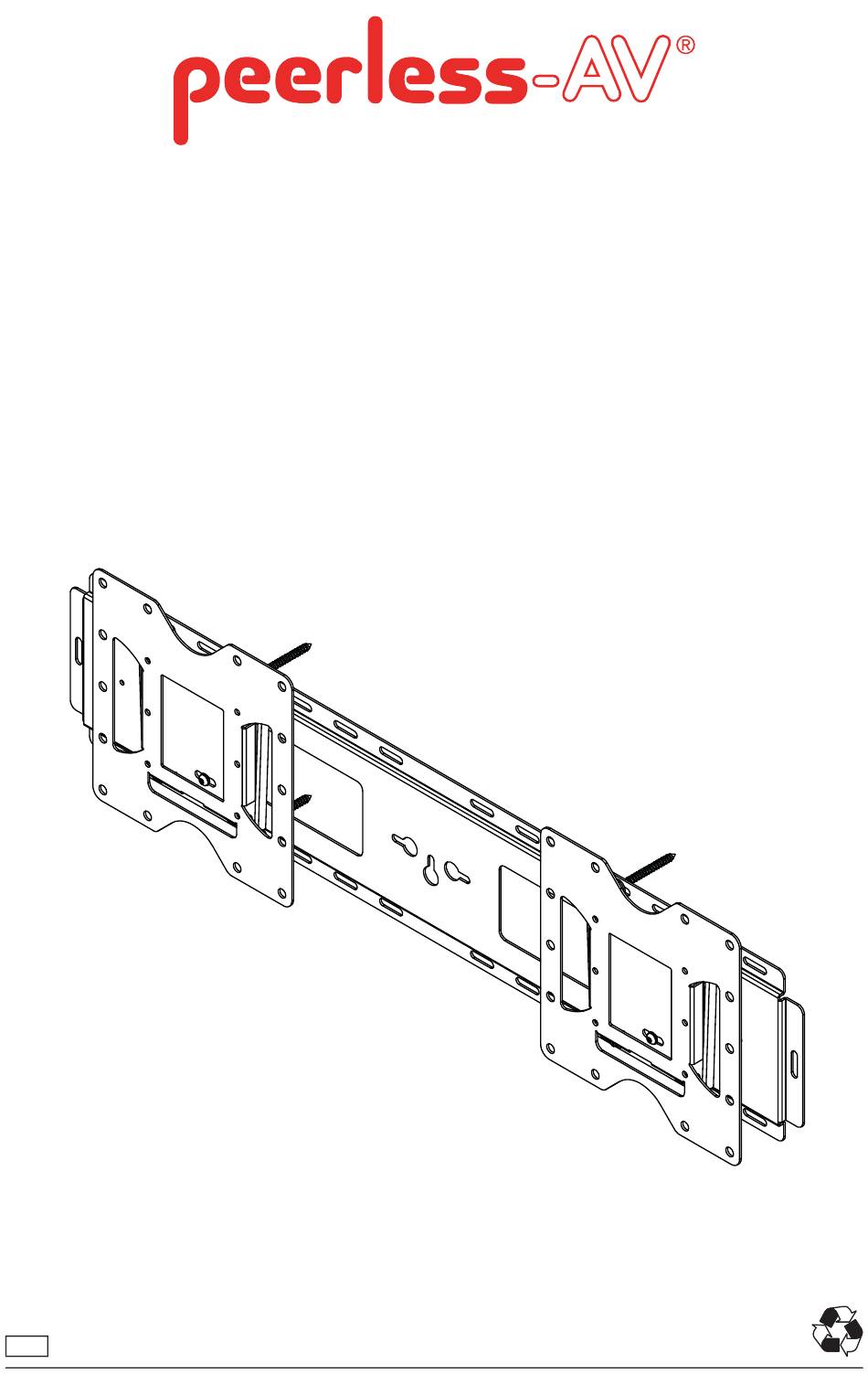

- Page 1 LG-WMF86BH FOR LG-86BH5C 2016-06-2 #:126-9128-1...
- Page 2 WARNING ENG - This product is designed to be installed on wood stud, solid concrete or cinder block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing make sure the supporting surface will support the combined load of the equipment and hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
- Page 3 Symbols WARNING Skip to step. Screws must get at least three full turns and fi t snug. Do not overtighten screws. Display center. Tools Needed for Assembly. ENG To properly tighten screws: Tighten until screw head makes contact, then tighten another 1/2 turn.
-
Page 4: Parts List
Parts List Description Part # A wall plate 125-P1547 B PF632 PF632 C M5 x 6mm socket pin serrated screw 510-1114 D 4mm allen wrench 560-9646 B ( 2 ) PF632 A ( 1 ) PF632 wall plate C ( 4 ) D ( 1 ) M5 x 6mm 4mm allen wrench... - Page 5 Concrete/Cinder block. Wood stud wall. WARNING ENG - When installing Peerless wall mounts on a wood stud wall covered with gypsum board (drywall), verify that the wood studs are a minimum of 2" x 4" nominal size. Do not install over gypsum board thicker than 5/8". 1a-1 Use stud fi...
- Page 6 1a-2 Level wallplate. Mark mounting holes on stud center lines. 2016-06-2 #:126-9128-1...
- Page 7 1a-3 2.5" (64mm) 5/32" 5/32" (4mm) (4mm) Drill mounting holes into supporting surface (2.5" (64mm) minimum depth required). Mounting hole must center on stud. 1a-4 Level wallplate. Install using wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). wood screws provided with PF632 2016-06-2 #:126-9128-1...
- Page 8 WARNING ENG - When installing Peerless wall mounts on a concrete wall, the wall must be at least 8" thick with a minimum compressive strength of 2000 psi. When installing Peerless wall mounts on a cinder block wall, the cinder blocks must meet ASTM C-90 specifi...
- Page 9 1b-3 1b-3 Insert anchor fl ush to concrete. concrete anchors provided with PF632 1b-4 1b-4 1b-4 1b-4 Level wallplate. Install using concrete anchors and wood screws provided. 3/8" (10mm) Maximum 80 in. • lb (9 N.M.). wood screws provided with PF632 2016-06-2 #:126-9128-1...
- Page 10 backplate from PF632 C (4) front plate from PF632 screen side screws from PF632 2016-06-2 #:126-9128-1...
- Page 11 security screws from PF632 2016-06-2 #:126-9128-1...
-
Page 12: Limited Five-Year Warranty
This warranty gives specifi c legal rights, and you may also have other rights which vary from state to state. Peerless-AV Peerless-AV Europe Peerless-AV de Mexico 2300 White Oak Circle Unit 3 Watford Interchange, Ave de las Industrias 413...
