Installation and Assembly
IMPORTANT! Read entire instruction sheet before you start installation and assembly.
IMPORTANT! The product is made to support screens with a VESA compliant hole pattern.
For safe mounting, mounting screws must turn at least three times in the screen inserts.

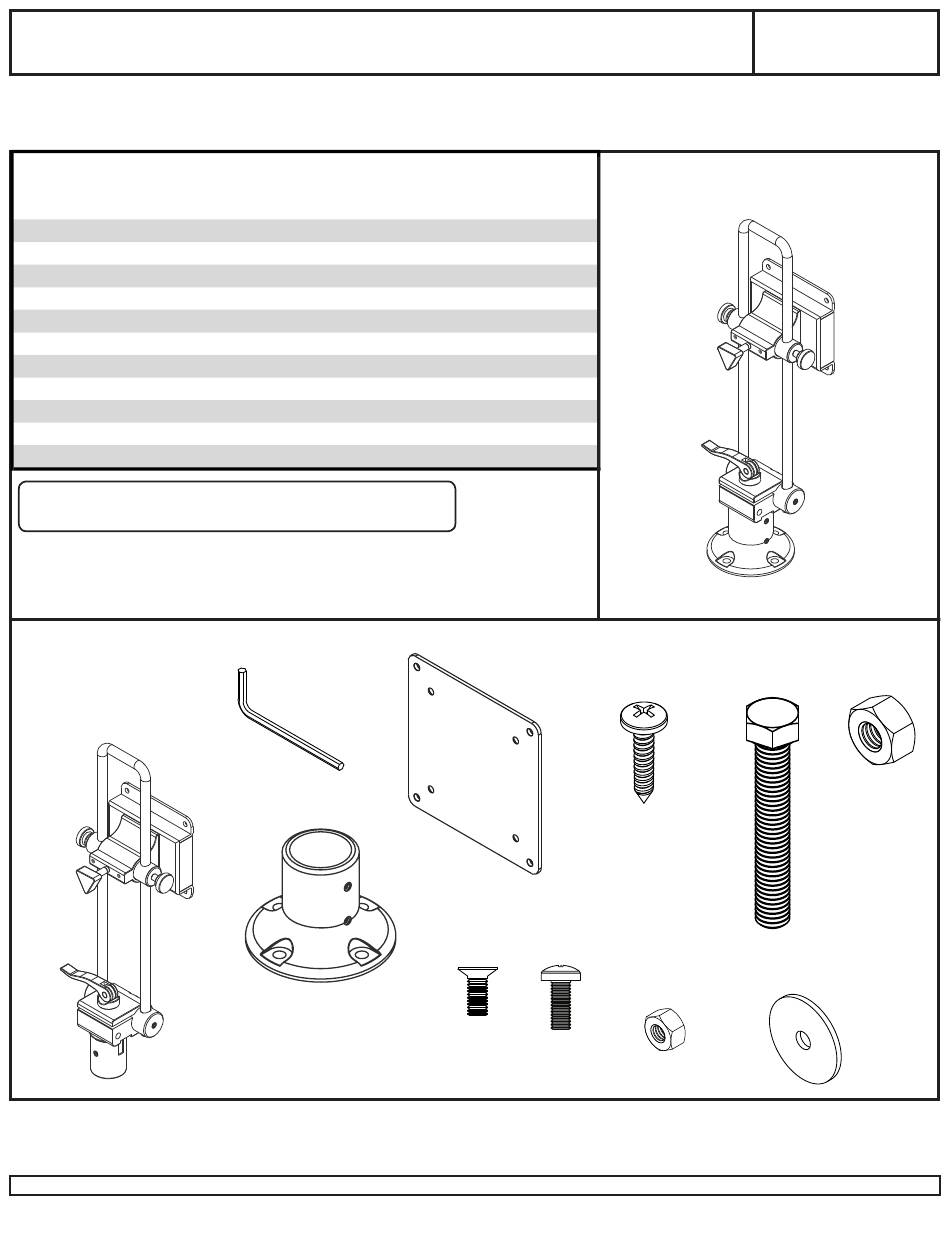

Parts List
Description
A mount assembly
B 3mm allen wrench
C mounting base
D adapter plate
E M4 x 8mm countersink screw
F M4 x 10mm phillips screw
G wood screw #14 x 1
H hex bolt
I hex nut
J M4 x 0.7mm nut
K pressure plate
NOTE: You may not use all hardware provided.
NOTE: Some parts may not appear exactly as illustrated.
A
Visit the Peerless Web Site at www.peerless-av.com
- Monitor Desktop Stand
Qty. Part #
B
C
LCV-100
1
091-1091
1
560-0073
1
091-1089
1
095-4354
520-1795
4
4
520-1796
510-9159
4
1
-
1
-
4
530-1082
1
-
D
E
F
1 of 4
Models: LCV-100
MAX Load Capacity:
LCV-100
H
G
J
ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13
For customer service call 1-800-865-2112.
25 lb (11.4KG)
I
K
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV LCV-100
Summary of Contents for peerless-AV LCV-100
- Page 1 K pressure plate NOTE: You may not use all hardware provided. NOTE: Some parts may not appear exactly as illustrated. 1 of 4 ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13 Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.
- Page 2 Important! Mount is to be installed onto desktops 3/4" to 1-5/8" thick only! For thicker mounting surfaces, you may have to provide your own hardware. DESKTOP DESKTOP 2 of 4 ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13 Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.
- Page 3 LCD monitor using four M4 x 10 mm phillips screws (F) as shown in detail 2. DETAIL 1 DETAIL 2 3 of 4 ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13 Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.
- Page 4 5 then tighten knob. For screens 15 lbs and over, it may be necessary to tighten set screws with the 3mm Allen wrench (B). SET SCREWS DETAIL 5 4 of 4 ISSUED:11-7-02 SHEET #: 090-9066-8 12-17-13 Visit the Peerless Web Site at www.peerless-av.com For customer service call 1-800-865-2112.
