Installation and Assembly:

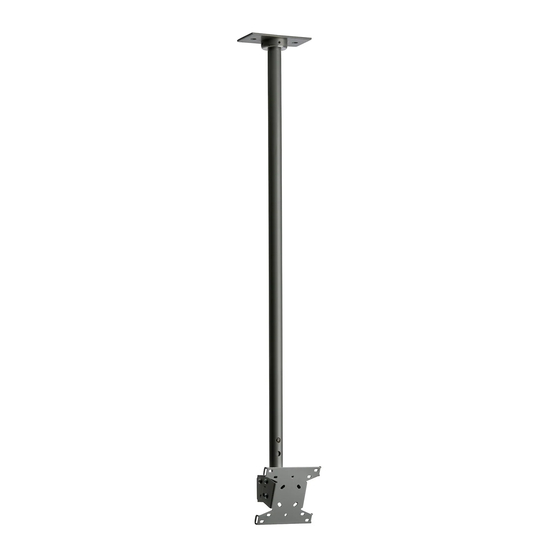

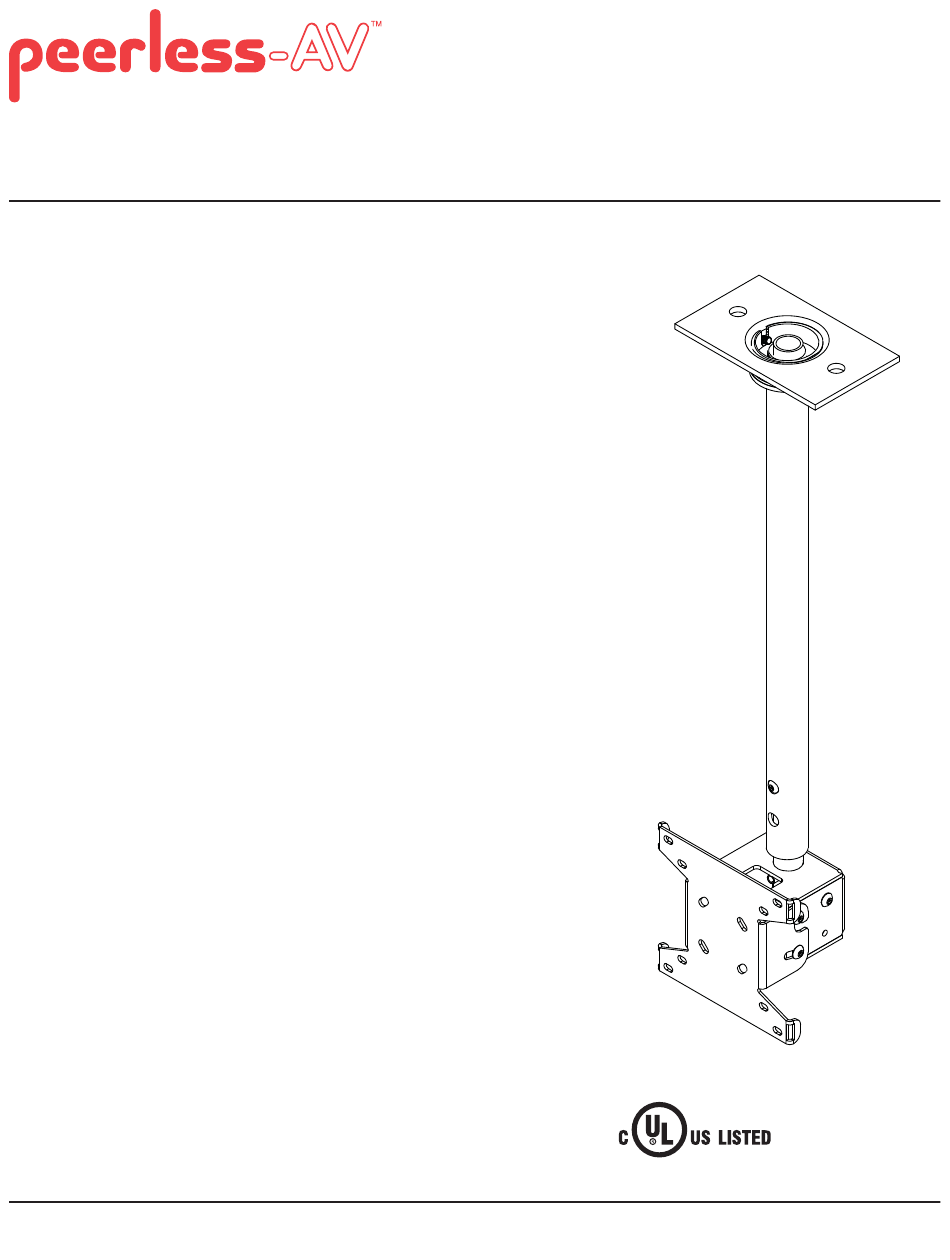

Ceiling mount for LCD screens up to 29"
Models: LCC-18, LCC-18-S, LCC-36, LCC-36-S, LCC-36-W
Patent Pending
Features:
• Comes in two adjustable height ranges (in 1" increments): 18"-30" and
36"-48".
.
• -5° to +20° adjustable tilt
• Screen can be mounted in standard position or face-down.
• Portrait or landscape orientation.
• Ceiling plate included.
• Hardware included for wood or concrete installations.
• Theft resistant security fasteners included.
®
• VESA
75/100 mm compliant (Non-VESA adapter offered separately).
• Comes in black or silver. LCC 36-W offered in white.
• 360° swivel action.
Max UL Load Capacity: 40 lb (18.1 kg)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
ISSUED: 09-27-04 SHEET #: 100-9004-7 09-28-12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV LCC-18
Summary of Contents for peerless-AV LCC-18
- Page 1 • Comes in black or silver. LCC 36-W offered in white. • 360° swivel action. Max UL Load Capacity: 40 lb (18.1 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com ISSUED: 09-27-04 SHEET #: 100-9004-7 09-28-12...
-
Page 2: Table Of Contents
Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact your local distributor. -
Page 3: Parts List
Parts List LCC-18 LCC-18S LCC-36 LCC-36S Description Qty. Part # Part # Part # Part # A tube assembly 055-1520 055-4520 055-1521 055-4521 B ceiling plate 580-1042 580-4042 580-1042 580-4042 C tilt bracket 055-1551 055-4551 055-1551 055-4551 D reducer 580-1009... -
Page 4: Installation To Wood Joist Finished Ceilings, Exposed Wood Joists, Or Wood Beam Ceilings
Installation to Wood Joist Finished Ceilings, Exposed Wood Joists, or Wood Beam Ceilings Drill two 5/32" (4 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach ceiling plate (B) with two #14 x 2.5" (6 mm x 65 mm) wood screws (E) as shown using 3/8"... -
Page 5: Installation To Concrete Ceilings
Installation to Concrete Ceilings Drill two 1/4" (6 mm) dia. holes to a minimum depth of 2.5" (64 mm). Attach ceiling plate (B) using two CONCRETE CEILING concrete anchors (H) and #14 x 2.5" wood screws (E) as shown in Illustration A and 1, 2, and 3 (below). Tighten all fasteners. -
Page 6: Installing Reducer
Installing Reducer Thread reducer (D) onto tube assembly (A) until tight. Insert set screw (I) into reducer as shown in fi gure 2.1. Tighten screw using hex wrench (J). Note: Set screw (I) is used to jam against the threads of tube assembly to prevent any excess movement. -
Page 7: Flush Mount Installation
Flush Mount Installation Screw reducer (D) into ceiling plate (B) until notch in reducer is aligned with one of the four holes in ceiling plate and set screw (I) is at least partially covered by ceiling plate as shown in fi gure 3.1. Secure reducer with one M5 x 10 mm F-type socket pin screw (P) using security allen wrench (G) as shown in fi... -
Page 8: Installation To Extension Column
Installation to Extension Column Screw extension column (EXT or ADJ Series) to ceiling plate (B). Align the notch with one of the four holes in the ceiling plate and secure extension column with a M5 x 10 mm socket pin screw (P) using security allen wrench (G). -
Page 9: Installation To Lightweight Suspended Ceiling Plate
Installation to Lightweight Suspended Ceiling Plate Refer to instruction sheet for lightweight suspended ceiling plate (CMJ 455) for attachment of ceiling plate to ceiling. Screw extension column (EXT or ADJ Series) to retaining collar in ceiling tray. Align the notch with one of the four holes in retaining collar and secure extension column with one M5 x 10 mm socket pin screw (P) using security... -
Page 10: Attaching Tilt Bracket To Lcd Screen
Attaching Tilt Bracket to LCD Screen Note: This product is designed to accommodate screens with VESA ® compliant hole patterns. For safe mounting, please make sure that mounting screws turn at least three complete turns in the screen inserts. FOR VESA 75 MOUNTING PATTERN: 1) Choose hole pattern indicated below. -
Page 11: Installation Of Screen In The Vertical Position
Installation of Screen in the Vertical Position Insert two M5 x 12 mm screws (F) into column bracket of tube assembly (A) (see fi gure 5.1). Leave approximately 3/16" of thread exposed (see fi gure 5.2). 3/16" EXPOSED COLUMN THREAD BRACKET fi... -
Page 12: Installation Of Screen In The Horizontal Position
Installation of Screen in the Horizontal Position Insert two M5 x 12 mm screws (F) into column bracket of tube assembly (A) (see fi gure 5.1). Leave approximately 3/16" of thread exposed (see fi gure 5.2). COLUMN BRACKET 3/16" EXPOSED THREAD fi...
