Installation and Assembly:
Desktop Mount with Desk Clamp and Grommet for 19" - 30"
LCD Screens

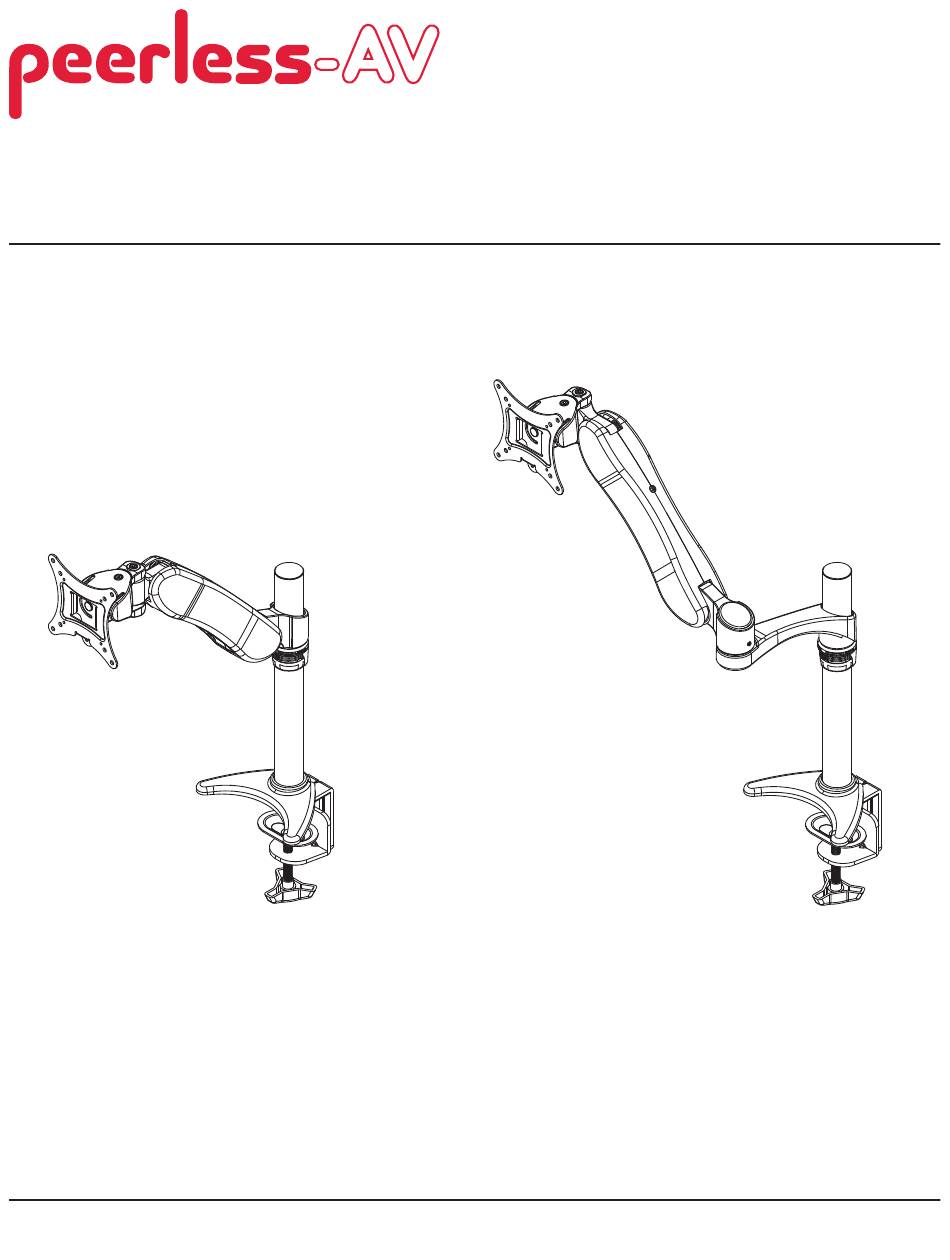

Models: LCT420A, LCT620A
LCT620A
LCT420A
Max Load Capacity: 20 lbs (9 kg)
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com
ISSUED: 07-25-11 SHEET #: 090-9203-1
Advertisement
Table of Contents
Related Manuals for peerless-AV LCT420A
Summary of Contents for peerless-AV LCT420A
- Page 1 Installation and Assembly: Desktop Mount with Desk Clamp and Grommet for 19" - 30" LCD Screens Models: LCT420A, LCT620A LCT620A LCT420A Max Load Capacity: 20 lbs (9 kg) 2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com...
- Page 2 NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-865-2112.
- Page 3 Before you begin, make sure all parts shown are included with your product. Parts List LCT420A LCT620A Description A column assembly B single link arm assembly double link arm assembly C grommet assembly D round rubber pads E square rubber pads...
- Page 4 Clamp Installation Method Grommet Installation Method Remove clamp assembly from column assembly Apply four rubber pads (D, E) to bottom of column (A) as shown in fi gure 1.1. Remove mounting plate assembly (A) as shown below. Attach column from grommet assembly (C) and attach to column assembly (A) to mounting surface with a maximum assembly (A) with four M6 x 8 mm screws using thickness of 3".
- Page 5 Attaching Arm Assembly to Screen WARNING • Tighten screws so arm assembly is fi rmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached.
- Page 6 Loosen and position lock collar to desired height and retighten lock collar as shown in fi gure 5.1. Insert arm assembly (B) onto column assembly (A) and let it rest on lock collar as shown in fi gure 5.2. Tighten set screw on rear of arm assembly (B) using 2.5 mm allen wrench (L) as shown in fi gure 5.3. fi...
