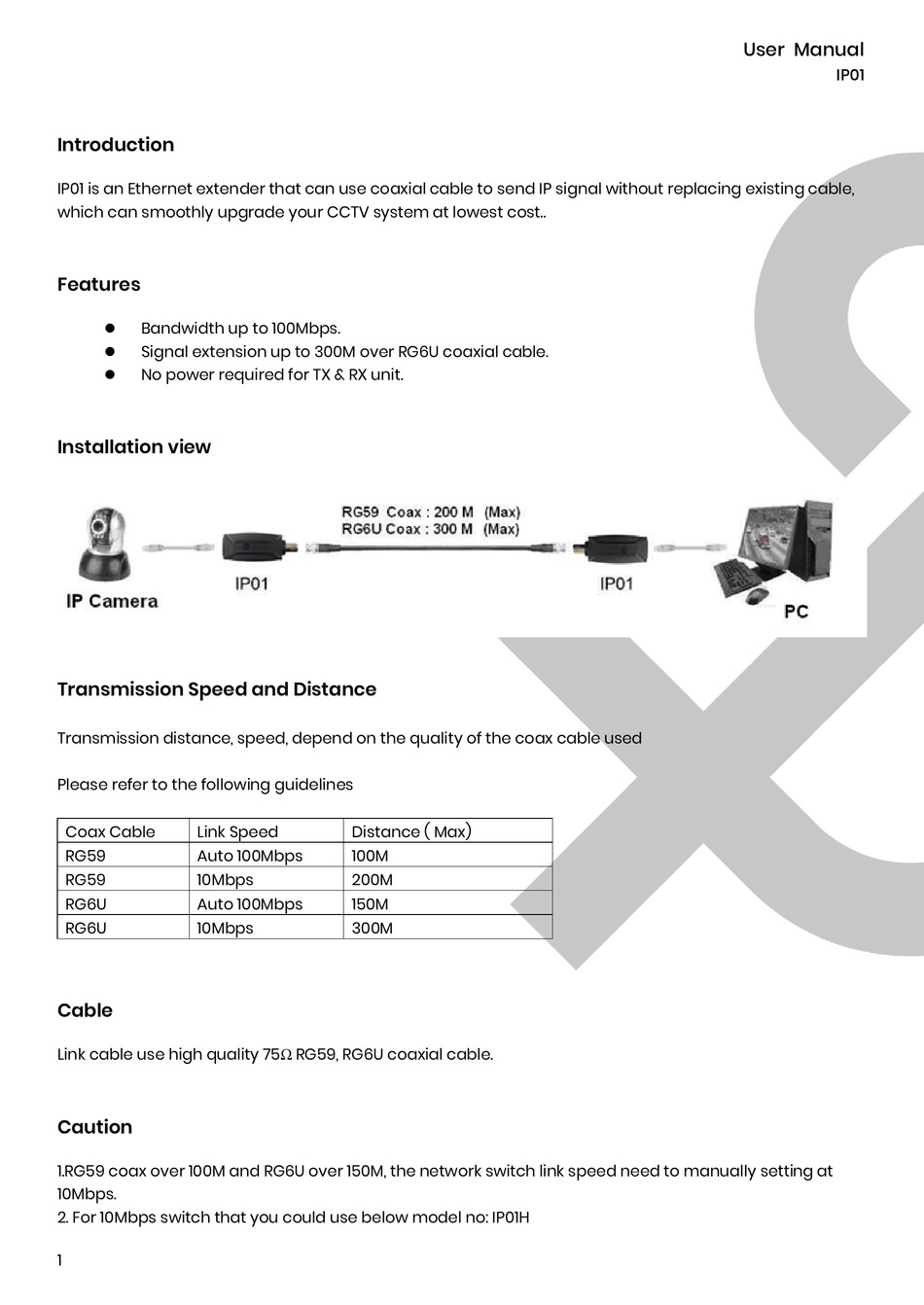

Introduction; Features; Transmission Speed And Distance; Cable - SC&T IP01 User Manual

Introduction

IP01 is an Ethernet extender that can use coaxial cable to send IP signal without replacing existing cable,
which can smoothly upgrade your CCTV system at lowest cost..

Features

Bandwidth up to 100Mbps.

Signal extension up to 300M over RG6U coaxial cable.

No power required for TX & RX unit.

Installation view

Transmission Speed and Distance

Transmission distance, speed, depend on the quality of the coax cable used
Please refer to the following guidelines
Coax Cable Link Speed
RG59 Auto 100Mbps
RG59 10Mbps
RG6U Auto 100Mbps
RG6U 10Mbps

Cable

Link cable use high quality 75Ω RG59, RG6U coaxial cable.
Caution
1.RG59 coax over 100M and RG6U over 150M, the network switch link speed need to manually setting at
10Mbps.
2. For 10Mbps switch that you could use below model no: IP01H
1
Distance ( Max)
100M
200M
150M
300M
