SC&T IP05I Manual

ITEM NO.: IP05 POE INJECTOR
The IP05I Power over Ethernet (PoE) Injector is designed to supply power to PoE IP
cameras , Wireless Access Points or other PoE Powered Devices (PDs) through the
Ethernet cable. The IP05I supplies 48V DC power over pairs (4/5,7/8) of the
TIA/EIA-568 Cat 5/5e/6 cable through the Gigabit Ethernet PoE port.
This IP05
POE kit is a cost-effective solution to send data and power over original
Ethernet network but eliminates the need of power cable and converter. It is
perfect for network application such as IP camera, VoIP and wireless access point
This POE kits include two devices, the injector IP05I sends both power and data
over signal CAT5 cable to your IP device. The splitter separates the data and
power and delivers them to the IP device.

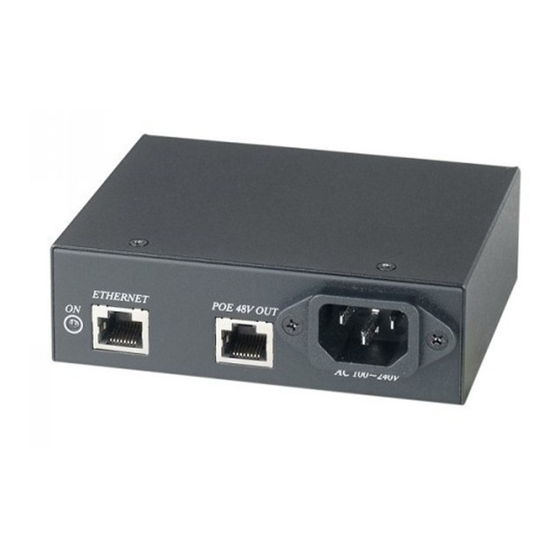

IP05I POE Gigabit Injector
Mix Ethernet and power into RJ45 port.

Compatible IEEE 802.3af (12.95W) POE standard, PSE/PD.

Provides DC 48V power over RJ45 Ethernet cable to device with Ethernet port.

Supports POE power up to 12.95 Watts for POE port.

Support 10/100/1000 BASE-T transmission rate.

Power input LED indication.

Distance up to 100 meters (Max)

Installation View:
IP CABLING TRANSMISSION – POE
100M (Max)
1
