SC&T IP01 Manual

Ip cabling transmission – passive. ip01k?4 x ip01 ip extender + 1 x ip01h 4 port ethernet switch kit package

ITEM NO.: IP01K = (IP01 4 units + IP01H 1 unit)

IP01：

IP01H：

IP01 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP

camera signal. Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT NEXT

specification. The working range could up to 200 meters at 10Mbps speed.

IP01H 4 port Ethernet Switch is special design and built in 4 pieces IP01 (IP extender over coax)

with BNC interface to send and extender TCP/IP signal over coaxial cable. Used in set with IP01

at IP camera side or any TCP/IP equipment, to send the IP signal up to 200 meters over your

existing coax cable. 4 BNC port based on 10Mbps transmission speed, 1 port RJ45 to your

NVR/computer based on 10/100Base-T.

IP01K：4 x IP01 IP extender + 1 x IP01H 4 Port Ethernet Switch Kit Package



Package include：4 pieces x IP01, 1pcs x IP01H with power adapter.

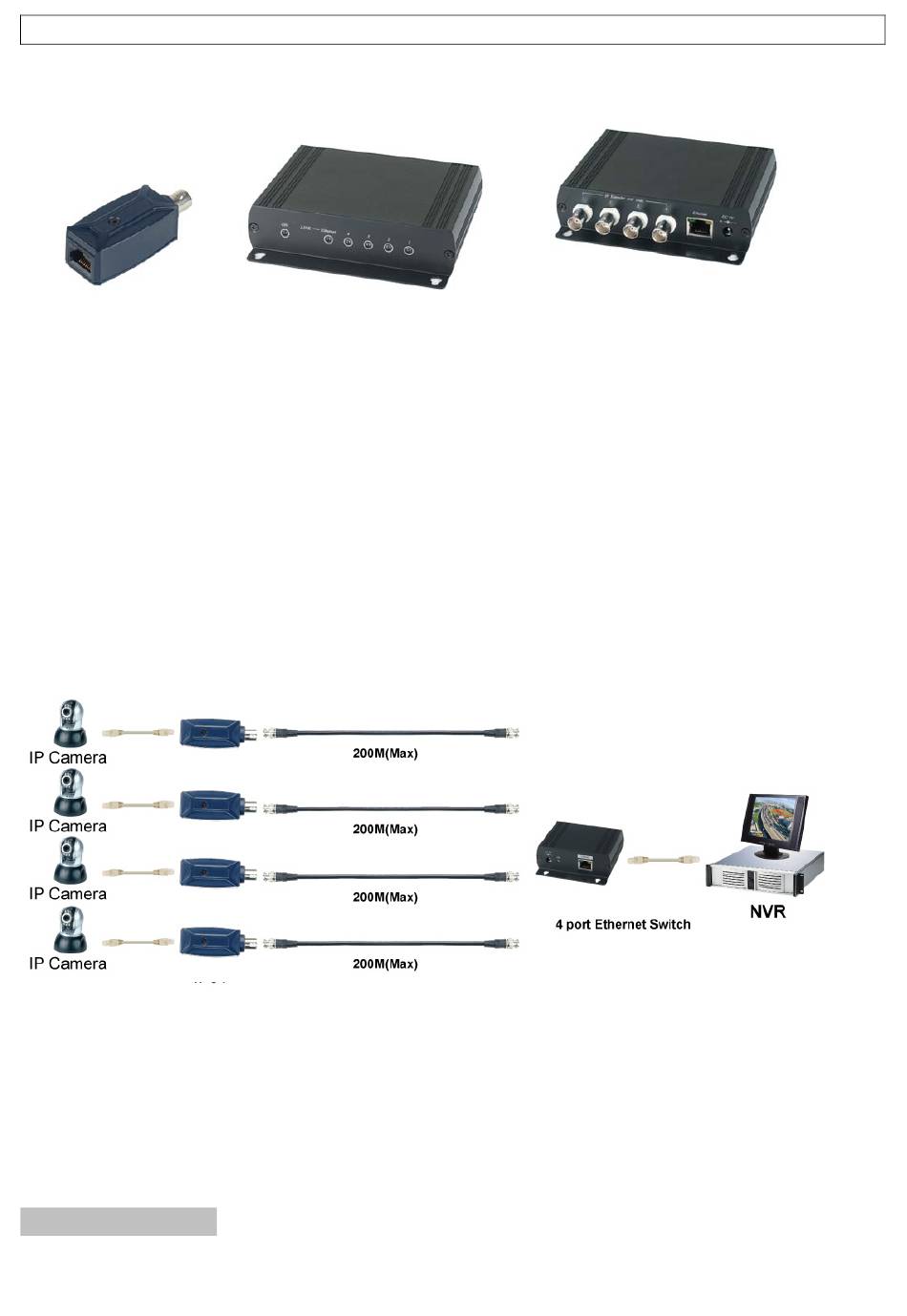

Installation View:

IP01

Caution: IP01H unit with BNC male terminator at channel 2, 3, 4.

Do not remove the terminator if you do not use these channels.

Otherwise, it will cause this Switch not working.

Related model:

FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV

IP CABLING TRANSMISSION – Passive

IP Extender over Coax

Ethernet Switch with 4Port 10Base-T+ 1Port 10/100Base E

IP01

IP01H

Table of Contents

Do you have a question about the IP01 and is the answer not in the manual?

Page 1 Ethernet Switch with 4Port 10Base-T+ 1Port 10/100Base E IP01 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP camera signal. Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT NEXT specification.
Page 2 4 Port Ethernet Switch with 4 port BNC and 1 port RJ45.  RJ45 terminal support 10/100Mbps auto detect function  BNC terminal support 10Mbps, must work with IP01.  LED indication: Link/Active, Power.  Complies with standard IEEE802.3 and IEEE802.3u.
