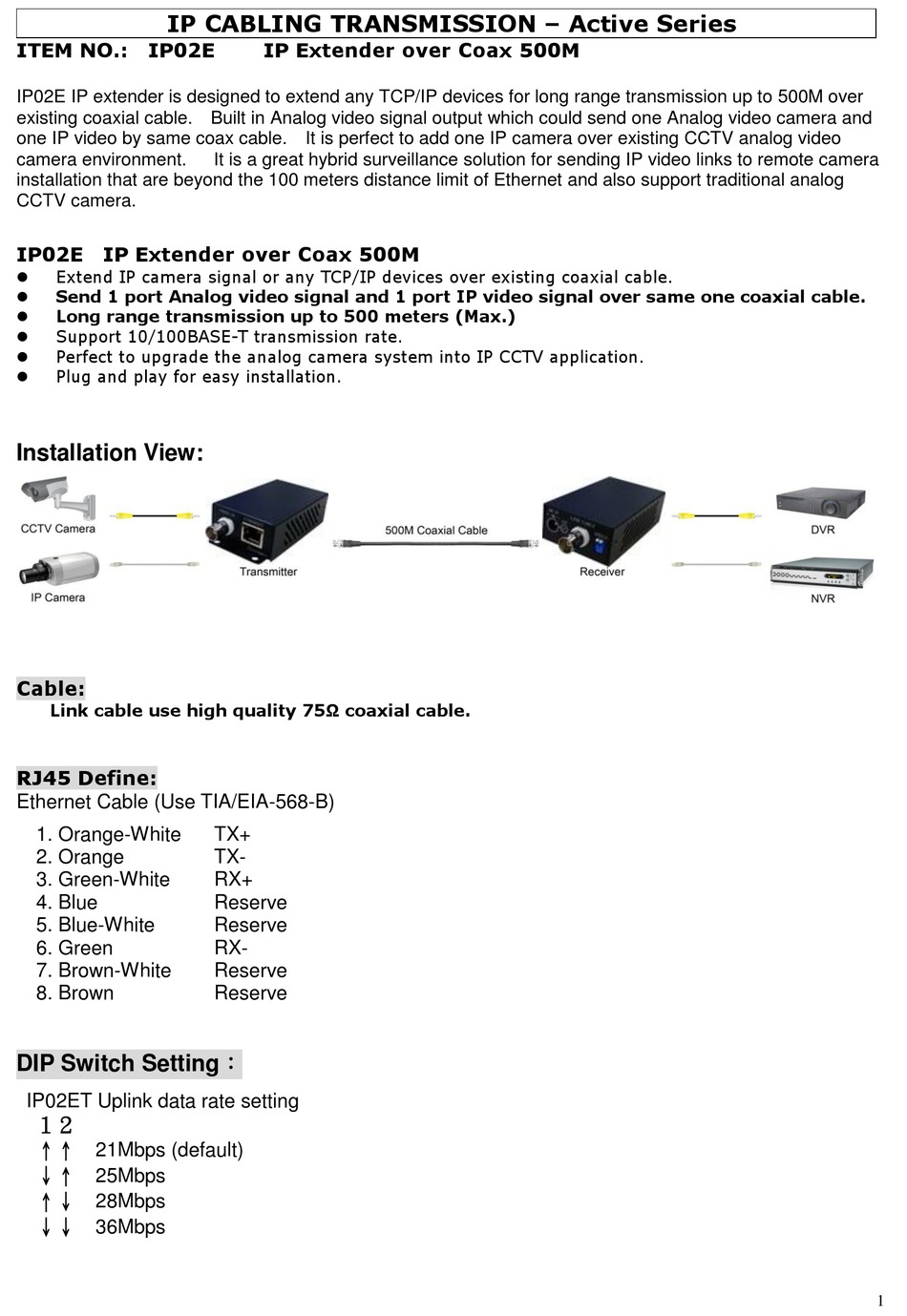

SC&T IP02ET Manual

IP CABLING TRANSMISSION – Active Series
ITEM NO.: IP02E
IP02E IP extender is designed to extend any TCP/IP devices for long range transmission up to 500M over
existing coaxial cable. Built in Analog video signal output which could send one Analog video camera and
one IP video by same coax cable. It is perfect to add one IP camera over existing CCTV analog video
camera environment.
installation that are beyond the 100 meters distance limit of Ethernet and also support traditional analog
CCTV camera.

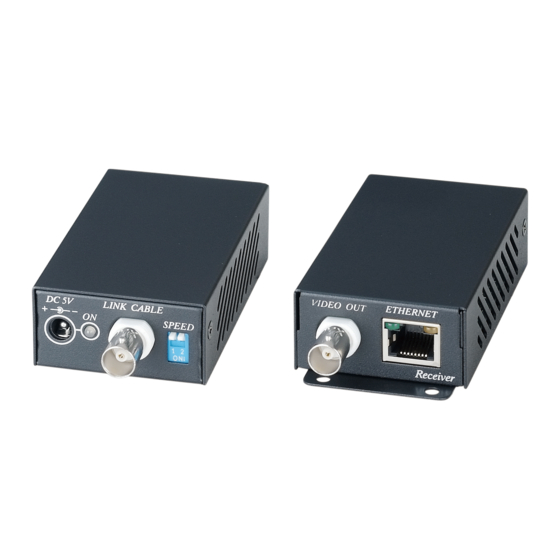

IP02E IP Extender over Coax 500M
Extend IP camera signal or any TCP/IP devices over existing coaxial cable.

Send 1 port Analog video signal and 1 port IP video signal over same one coaxial cable.

Long range transmission up to 500 meters (Max.)

Support 10/100BASE-T transmission rate.

Perfect to upgrade the analog camera system into IP CCTV application.

Plug and play for easy installation.


Installation View:

Cable:
Link cable use high quality 75Ω coaxial cable.
RJ45 Define:
Ethernet Cable (Use TIA/EIA-568-B)
1. Orange-White
2. Orange
3. Green-White
4. Blue
5. Blue-White
6. Green
7. Brown-White
8. Brown
DIP Switch Setting：
IP02ET Uplink data rate setting
１２
↑↑ 21Mbps (default)
↓↑ 25Mbps
↑↓ 28Mbps
↓↓ 36Mbps

IP Extender over Coax 500M

It is a great hybrid surveillance solution for sending IP video links to remote camera
TX+
TX-
RX+
Reserve
Reserve
RX-
Reserve
Reserve
1
