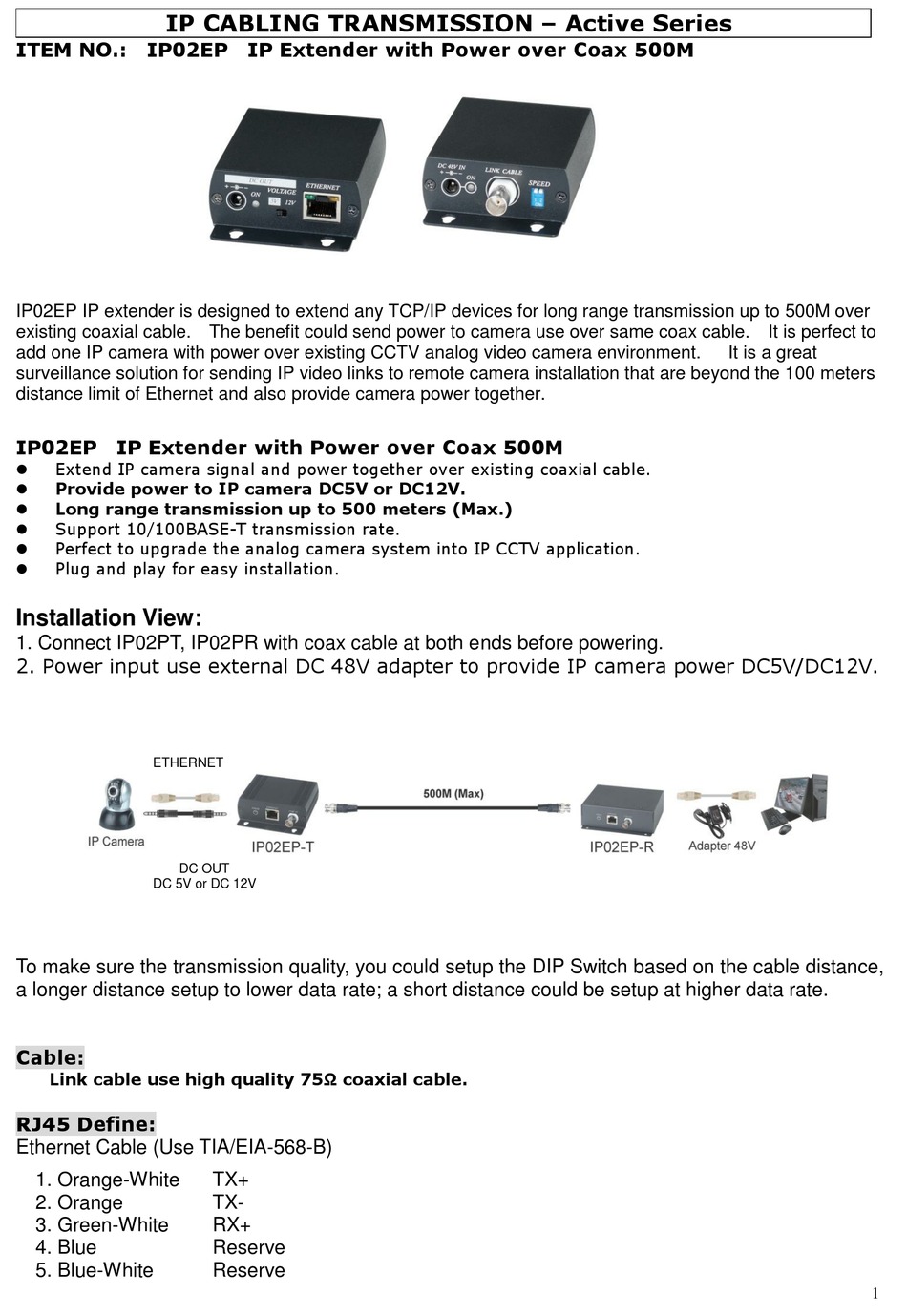

IP CABLING TRANSMISSION – Active Series
ITEM NO.: IP02EP IP Extender with Power over Coax 500M
IP02EP IP extender is designed to extend any TCP/IP devices for long range transmission up to 500M over
existing coaxial cable. The benefit could send power to camera use over same coax cable. It is perfect to
add one IP camera with power over existing CCTV analog video camera environment.
surveillance solution for sending IP video links to remote camera installation that are beyond the 100 meters
distance limit of Ethernet and also provide camera power together.
IP02EP IP Extender with Power over Coax 500M
Extend IP camera signal and power together over existing coaxial cable.
Provide power to IP camera DC5V or DC12V.
Long range transmission up to 500 meters (Max.)
Support 10/100BASE-T transmission rate.
Perfect to upgrade the analog camera system into IP CCTV application.
Plug and play for easy installation.
Installation View:
1. Connect IP02PT, IP02PR with coax cable at both ends before powering.
2. Power input use external DC 48V adapter to provide IP camera power DC5V/DC12V.
ETHERNET
DC OUT
DC 5V or DC 12V
To make sure the transmission quality, you could setup the DIP Switch based on the cable distance,
a longer distance setup to lower data rate; a short distance could be setup at higher data rate.
Cable:
Link cable use high quality 75Ω coaxial cable.
RJ45 Define:
Ethernet Cable (Use TIA/EIA-568-B)
1. Orange-White
2. Orange
3. Green-White
4. Blue
5. Blue-White
TX+
TX-
RX+
Reserve
Reserve
It is a great
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IP02EPT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SC&T IP02EPT

  • Page 1 IP CABLING TRANSMISSION – Active Series ITEM NO.: IP02EP IP Extender with Power over Coax 500M IP02EP IP extender is designed to extend any TCP/IP devices for long range transmission up to 500M over existing coaxial cable. The benefit could send power to camera use over same coax cable. It is perfect to add one IP camera with power over existing CCTV analog video camera environment.
  • Page 2 ↑↑ 3Mbps (default) ↓↑ 4Mbps ↑↓ 9Mbps ↓↓ 11Mbps LED Indication: : Power ON/OFF Green Blue : Power output DC 5V : Power output DC12V : Ethernet 10/100Mbps linking Yellow : Flash → Data transmission Green Panel View: IP02EPT IP02EPR...
  • Page 3: Specifications

    Specifications: ITEM NO. IP02EPT IP02EPR RJ45 x 1(Ethernet) ,BNC x 1 (75 Ω) Transmission Interface DC JACK 2.0mm x 1 Power Input Connector BNC ( DC48V) (DC 48V 0.83A 40W) DC JACK 2.5mm x 1 Power Output Connector BNC ( DC48V) (DC 5V 2A,DC 12V 1A)

This manual is also suitable for:

Ip02epr
