- Page 1 User Manual TREK-733L RISC All-in-One Light duty Mobile Data Terminal...
- Page 2 No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd.
- Page 3 20cm (8 inches) during normal operation. Changes or modifications not expressly approved by the party responsible for com- pliance could void the user’s authority to operate the equipment. TREK-733L User Manual...
- Page 4 Technical Support and Assistance Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –...
- Page 5 One High Density Cable (include Power and I/O) Ordering Information Part Number Description TREK-733L NXP (Freescale) Cortex-A9 i.MX6DL Dual Core 1.0 GHz, 1GB DRAM, 4GB eMMC, Android 4.4.2, LTE MC7304 TREK-733L-LWBADA0E (Ext. ANT), GNSS(Ext. ANT), WLAN/BT (Int. ANT), Power and I/O Cable TREK-733L NXP (Freescale) Cortex-A9 i.MX6DL Dual Core...
- Page 6 CAUTION: Any unverified component could cause unexpected damage. To ensure the correct installation, please always use the components (ex. screws) provided with the accessory box. TREK-733L User Manual...
- Page 7 Micro SD card and SIM card: Turn off the power before inserting or removing the storage cards. Record of Revision Version Date Page Description Remark 2016/09/27 All Preliminary Release TREK-733L User Manual...
- Page 8 TREK-733L User Manual viii...
-
Page 9: Table Of Contents
Dimensions ....................5 Figure 1.1 TREK-733L dimensions..........5 Chapter System Setup ........7 A Quick Tour of the TREK-733L Mobile Data Terminal ......8 Figure 2.1 Front view of TREK-733L ........... 8 2.1.1 Power LED Behavior..............8 2.1.2 Light Sensor.................. 8 2.1.3... - Page 10 Reset your Android One to factory settings ........ 36 OTA update (over-the-air update)............37 5.8.1 Android device layout ..............37 5.8.2 OTA from USB................38 VPM Update.................... 39 5.9.1 Install update tool................ 39 5.9.2 Update VPM ................40 TREK-733L User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information This chapter gives background information on the TREK-733L Mobile Data Terminal. Sections include: Features Product Specifications Dimensions... -
Page 12: Introduction

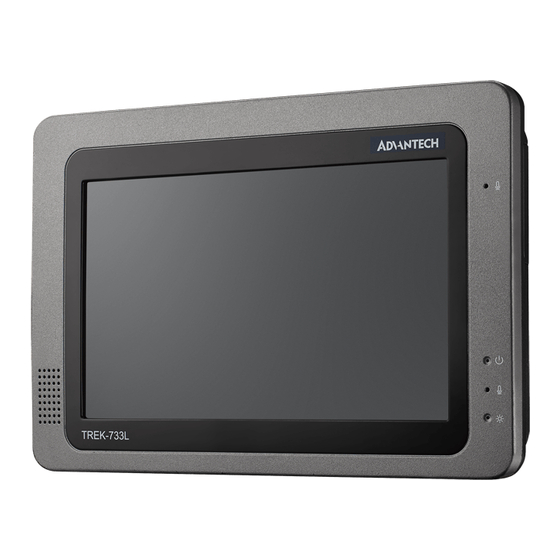

1.1 Introduction TREK-733L is an ARM based Android 4.4.2 platform with 7" display and capacitive touch screen all-in-one light duty mobile data terminal (MDT). Powered by NXP (Fre- escale) 1.0 GHz processor, 1GB DRAM and rich wireless communication interface include 4G LTE and WLAN/BT provide high speed data exchange with performance required by fleet management company. - Page 13 - 2 Hrs for Low Power Condition Operation - Charging Time: 3 Hrs Mounting AMPS Mounting ARM Compatible Dimension Mechanical 205 mm x 139 mm x 33.5 mm (W x D x H) Weight 820 g (incl. Battery) TREK-733L User Manual...
- Page 14 Sierra Wireless MC7354 via Mini PCIe Slot for US - LTE: B2 (1900), B4 (AWS1700/2100), B5 (850), B13 (700), B17 (700), B25 (1900G) - HSPA+ UMTS: B1 (2100), B2 (1900), B4 (AWS1700/2100), B5 (850), B8 (900) / CDMA EVDO: BC0 (800), BC1 (1900), BC10 (800) TREK-733L User Manual...
-
Page 15: Dimensions
1.4 Dimensions Unit: mm Figure 1.1 TREK-733L dimensions TREK-733L User Manual... - Page 16 TREK-733L User Manual...
-
Page 17: Chapter 2 System Setup
Chapter System Setup This chapter details system setup on TREK-733L. Sections include: A Quick Tour of the Mobile Data Terminal Installation Procedures... -
Page 18: A Quick Tour Of The Trek-733L Mobile Data Terminal
2.1 A Quick Tour of the TREK-733L Mobile Data Terminal Before starting to set up the Mobile Data Terminal, take a moment to become familiar with the locations and functions of the controls, drives, connectors and ports, which are illustrated in the figures below. When the Mobile Data Terminal is placed inside truck glove cabinet or under the passenger’s seat next to the driver, its front appears... -
Page 19: Reset Button
2.1.3 Reset Button TREK-733L is able to use reset button to reboot system. Press this switch to reset the system without power off the system. SIM card Slot Micro-SD Slot Backup Battery (Power & I/O cable) LTE AUX Antenna Conn. -
Page 20: Installation Procedures
2.2.1 Connecting the Power Cord STEP 2: Connect the High Density Cable (HDC) to the DC inlet of TREK-733L. On the open- wire end, one pin is reserved for positive voltage and is marked "B+" which needs to be connected to the power "+" side; one pin is reserved for ground and is marked "GND";... -
Page 21: Connecting The Wwan Signal
HDC Connetor 2.2.2 Connecting the WWAN signal STEP 3: After system boot up correctly, insert SIM card and start APN setting for WWAN con- nection.(Default APN is blank). TREK-733L User Manual... - Page 22 TREK-733L User Manual...
-
Page 23: Chapter 3 Hardware & Peripheral
Chapter Hardware & Peripheral This chapter details the installa- tion of hardware for TREK-733L. Sections include: Installing the Storage Device and SIM Card Installing Optional Accessories... -
Page 24: Installing The Storage Device And Sim Card
3.1 Installing the Storage Device and SIM Card Users can install SIM card and storages (micro-SD card) easily on TREK-733L. Micro SD card is an optional storage. In order to access Micro-SD connector and SIM card, system has to been turned off. Then, release the side door on the right side of TREK- 733L. -
Page 25: Installing Standard Wireless Options
TREK-MNT-301E TREK-MNT-302E TREK-MNT-303E 3.3 Installing Standard Wireless Options For TREK-733L, WWAN, Bluetooth/WiFi and GNSS modules are already installed inside of unit. (WWAN is available for option.) 3.3.1 LTE/GNSS (External Antenna) Position of external LTE/GNSS antenna port is shown as below. - Page 26 TREK-733L User Manual...
-
Page 27: Chapter 4 Pin Assignments
Chapter Pin Assignments This chapter explains pin assign- ments of the TREK-733L. -
Page 28: Power And I/O Cable
RS-232 5V power (Share 5V,3A with RS232-1, +V5_HD_RS1 RS232-2 & USB) RS-232 5V power (Share 5V,3A with RS232-1, +V5_HD_RS2 RS232-2 & USB) ISO_DI_5 Isolation Digital Input 5 ISO_DI_6 Isolation Digital Input 6 (support Speed Line) USB_HD_DP_H USB D+ USB_HD_DN_H USB D- TREK-733L User Manual... - Page 29 Isolation Digital Input 1 ISO_DI_2 Isolation Digital Input 2 ISO_DI_3 Isolation Digital Input 3 ISO_DI_4 Isolation Digital Input 4 Digital signal GND CVBS_HD Analog Video CVBS Input Digital signal GND RS232_TX1_HD RS-232 Port 1 TX RS232_RX1_HD RS-232 Port 1 RX TREK-733L User Manual...
-
Page 30: Rs-232-1/Rs-232-2 Connector
RS-232-1 5V power (Share 5V,3A with RS232-2 & +V5_HD_RS1 USB) RS-232-2 connector pin define Pin Number Pin Name Description RS232_RX2_HD RS-232 Port 2 RX RS232_TX2_HD RS-232 Port 2 TX GND_RS2 RS-232 Port 2 GND RS-232-2 5V power (Share 5V,3A with RS232-1 & +V5_HD_RS2 USB) TREK-733L User Manual... -
Page 31: Iso Di/Do Connector
Isolation Digital Input 5 ISO_DI_6 Isolation Digital Input 6 (support Speed Line) Digital signal GND ISO_DI_2 Isolation Digital Input 2 ISO_DI_1 Isolation Digital Input 1 ISO_DI_4 Isolation Digital Input 4 ISO_DI_3 Isolation Digital Input 3 4.1.3 USB Connector TREK-733L User Manual... - Page 32 Standard USB A type female connector Pin Number Pin Name Description USB 5V power (Share 5V,3A +V5_USB with RS232-1 & RS232-2) USB_D- USB Data- USB_D+ USB Data+ Drain Wire TREK-733L User Manual...
-
Page 33: Power & I/O Cable
4.2 Power & I/O Cable (P/N: 1700025781-01) TREK-733L User Manual... - Page 34 TREK-733L User Manual...
-
Page 35: Chapter 5 Welcome To Android
Chapter Welcome to Android... -
Page 36: Navigation Buttons
Touch the All Apps icon. Swipe from right to left, if necessary, to find the app that you want. Touch & hold the app until the Home screen appears, slide it into place and lift your finger. TREK-733L User Manual... -
Page 37: Touch & Type
You can open your device’s Settings app from the All Apps screen or from Quick Set- tings. For example, to change notification sounds, volumes and more, go to Settings > Device > Sound. To change brightness, font size and more, go to Settings > Device > Display. TREK-733L User Manual... -
Page 38: Use The Keyboard
The tab disappears after a few moments. To make it reappear, touch the text again. Delete text. Touch to delete selected text or the characters before the cur- Type capital letters. Touch the Shift key once to switch to capital letters for one TREK-733L User Manual... -
Page 39: Use Next-Word Suggestions
& input. To turn next-word suggestions on or off, go to Settings > Personal > Language & input > Keyboard & input methods > Android keyboard. Touch the Settings icon, then tick the box next to Next-word suggestions. TREK-733L User Manual... -
Page 40: Gesture Typing
You can speak to enter text in most places where you can enter text with the on- screen keyboard. Touch a text field, or a location in text you’ve already entered in a text field. Touch the Microphone key on the on-screen keyboard. TREK-733L User Manual... -
Page 41: Settings
On phones: Swipe down from the top of the screen with two fingers. To open the Settings app from Quick Settings, touch the Settings icon. The Settings app controls the core Android settings for networks, hardware, location, security, language, accounts and so on. TREK-733L User Manual... -
Page 42: Accessibility
A daemon, which runs commands on a device. The daemon runs as a background process on each emulator or device instance.A server, which manages communication between the client and the daemon. The server runs as a background process on your development machine. TREK-733L User Manual... -
Page 43: Adb Connect Device
5.5.1 ADB connect device: ADB via Wifi Mode Enable ADB function on TREK-733L, to put startup folder into USB driver and connect to TREK-733L. Open wifi on TREK-733L and check PC and TREK-733L are under wifi environ- ment. Execute ADB under c:\> and type adb connect xxx.xxxx.xxxx:55555 (xxx is wifi IP address on TREK-733L) Copt the apk what you want to install in same path and type adb install xxxx.apk... -
Page 44: Prepare Apk Install Disk
ADB to see /data/app Use linux pm command to remove applications same as install apk use Start_Up.sh command: pm uninstall xxx folder com.xxxx.xxx| for example: to remove advwwan pm uninstall com.advantech.advwwan TREK-733L User Manual... -
Page 45: Reload System Image
5.7.1 eMMC Image Reload from SD Card Use SD reload image to eMMC follow step Pepare Image file seems xxx.img.md5 and xxx.img Use msd5sum to check file the command was "md5sum -c xxx.img.md5" Use "df -h" to check disk position TREK-733L User Manual... -
Page 46: Reset Your Android One To Factory Settings
When your device has finished erasing, select the option to reboot your device. You'll see the Welcome screen just as you did when you turned the device on for the first time. When you're done with the setup process, follow these steps to restore your data. TREK-733L User Manual... -
Page 47: Ota Update (Over-The-Air Update)
Tiny partition used by recovery to stash some information away about what it's doing in case the device is restarted while the OTA package is being applied. TREK-733L User Manual... -
Page 48: Ota From Usb
The system will automatically update system image OTA from internal storage Format USB Disk to FAT32. Copy update.zip file to internal storage /Data/OTA Set system property "sys.update.start" to "1" Waite 1x Sec The system will automatically update system image TREK-733L User Manual... -
Page 49: Vpm Update
Those Step are 1.Install update tool 2. select VPM version 3.Update VPM 5.9.1 Install update tool Follow chapter "APK install" to install VPM upgrade tool of FirmwareUpdateTool_V1.0.apk . The Command was "pm install /mnt/media_rw/udisk/startup/VPM/FirmwareUpdateTool_V1.0.apk " The APK installed will see FirmwareUpgrade tool on the apk list. TREK-733L User Manual... -
Page 50: Update Vpm
5.9.2 Update VPM If want to upgrade firmware follow next step. Double click FirmwareUpgrade to execute update tool Use browser to select latest firmware version. To select upgrade file location folder. TREK-733L User Manual... - Page 51 Select firmware file for upgrade Press upgrade button to update firmware Wait finish the system will reboot automatically TREK-733L User Manual...
- Page 52 No part of this publication may be reproduced in any form or by any means, electronic, photocopying, recording or otherwise, without prior written permis- sion of the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2016...
