specimen by sliding it on the stage from the front toward the rear. After
setting the specimen, return the specimen holding lever gently
Remove specimen holder for fast hand scanning of slides
●

4. Objectives

Objectives are installed in revolving nosepiece. If necessary to reinstall,
●
lower the stage completely, screw the objectives into the revolving
nosepiece so that clockwise rotation of the nosepiece brings the next
higher magnification objective into position.

5. Condenser

The condenser is mounted in the stage and it is used in conjunction
●
with the iris diaphragm. The function of the condenser is to provide
full illumination to the specimen plane and to enhance the resolution and
contrast of the object being viewed.

6. Eyepiece tube

● Eyepiece tube is preinstalled in microscope arm. If necessary to reinstall,
loosen the eyepiece tube clamp screw, insert the round dovetail mount
on the eyepiece tube into the round dovetail mount on the microscope
arm, tighten the eyepiece tube clamp screw to secure the eyepiece tube
in place.

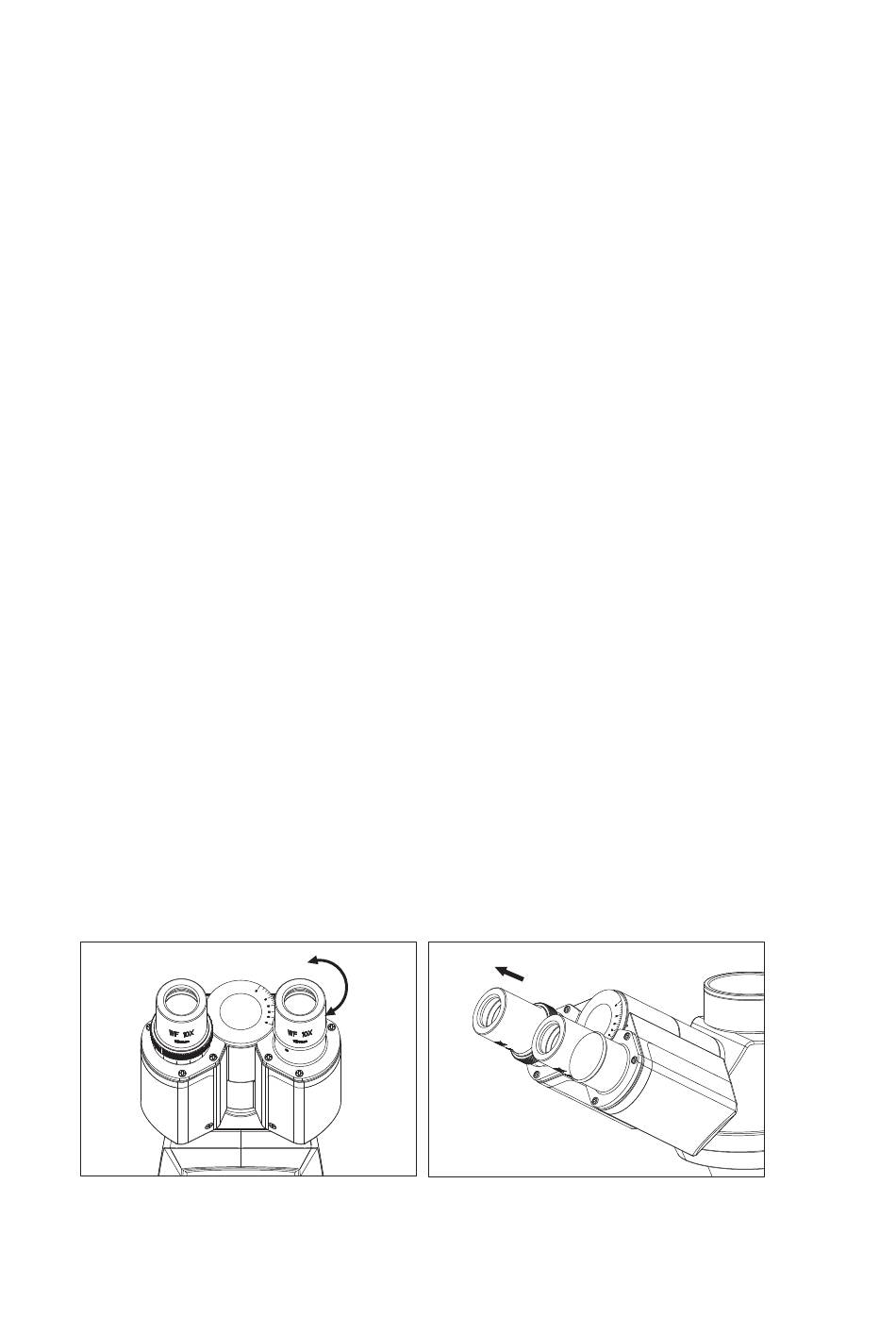

7. Eyepieces

Use the same magnification eyepieces for both the eyes.
●
Insert each eyepiece completely into the eyepiece sleeve.
●
Twist the eyepiece (anti-clockwise or clockwise) with 20-30 degree and
●
put the eyepieces gently out when removing the eyepiece.

8. Filters

The swing-in and swing-out filter holder is under Abbe condenser. Swing
●
8
