Summary of Contents for Swift SW350B

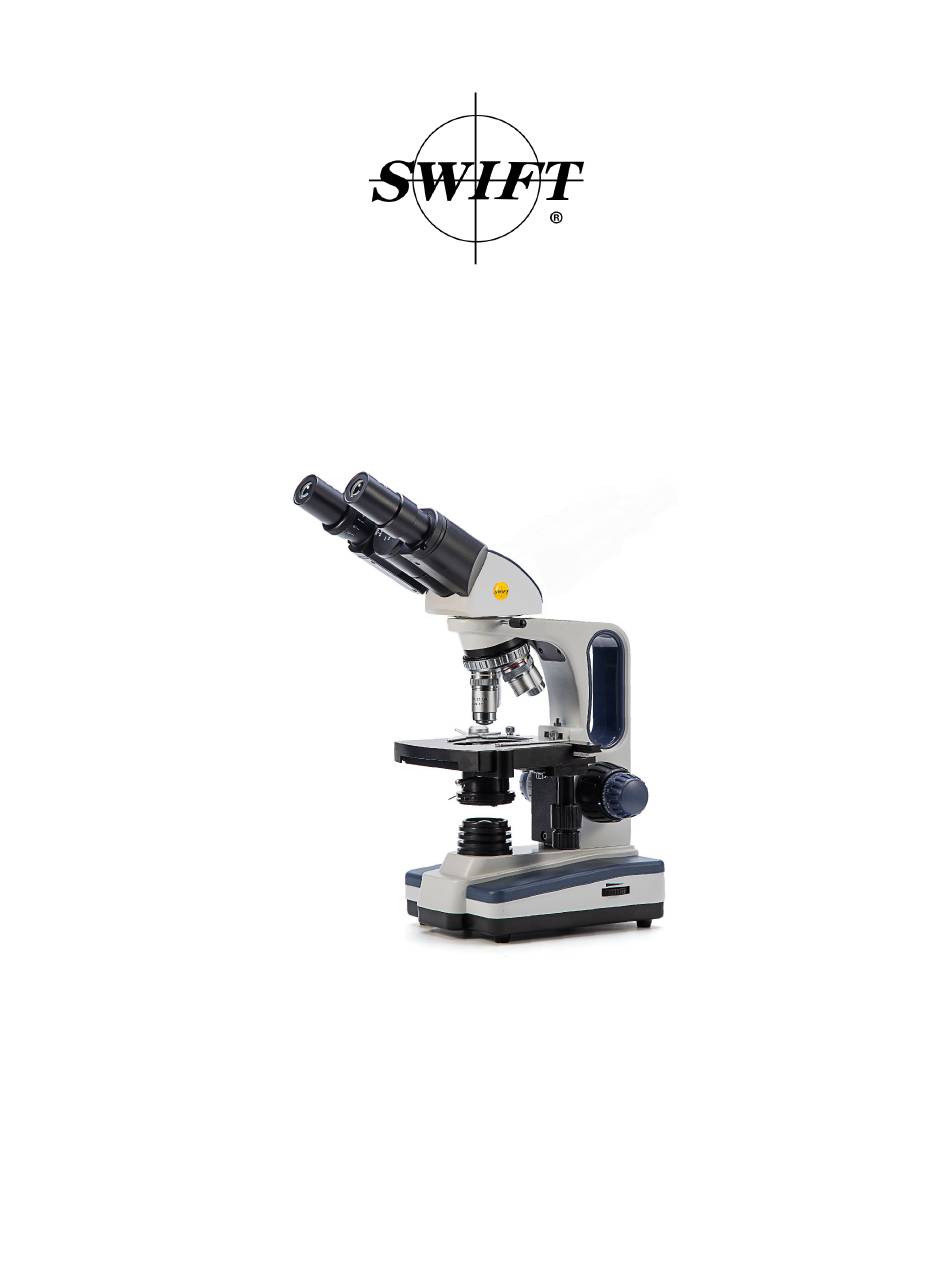

- Page 1 User Guide: SW350B...
-
Page 2: Table Of Contents

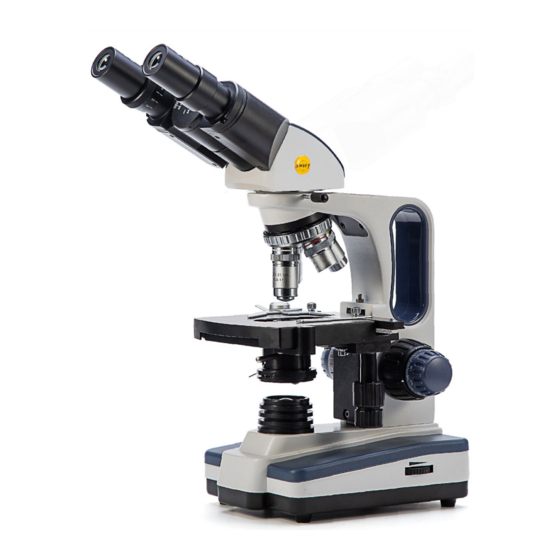

Welcome to your Swift SW350B microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This quick-start guide will introduce you to the components of your new microscope and help you begin to use it. For more information about our microscopes or customer service requests, please visit www.swiftoptical.com. -
Page 3: Specifications
I. Specifications Model SW350B Head 360° rotatable Binocular Siedentopf Inclination 30° Eyepieces Wide-field 10X and 25X pairs Interpupillary distance 48-75mm Diopter adjustment On left tube, +/-5dp Nosepiece Quadruple revolving Objectives Achromatic 4X, NA 0.1, working distance 37.5mm 10X, NA 0.25, working distance 7.35mm 40X(Spring), NA 0.65, working distance 0.29mm... -
Page 4: Parts Of The Microscope
II. Parts of the microscope III. Assembly and set up Carefully remove the microscope from the box and set it on a sturdy, flat surface. Remove the plastic covers from the eyepiece holders on the microscope's head, then place eyepieces into the holders. Locate the power adapter and attach it to the microscope, then plug it in. - Page 5 Clip a slide into the slide holder on the stage. Use the X-Y translational control knobs on the right side of the stage to move the stage front to back or the slide holder left to right to center the specimen over the bulb. Move the eyepieces closer together or further apart until you see one image when you look through them.
-
Page 6: Caring For Your Microscope
If you have a problem, you may be able to correct it yourself. Here are some common issues and easy solutions you can try before calling customer support for service. *Caution: Never disassemble the electrical, mechanical, or optical components. This servicing should only be done by a Swift technician. Issue Possible cause... - Page 7 Visual field is blurry or dirty Dirty objective or eyepiece Clean with compressed air lens or soft brush The slide is dirty Clean the slide with glass cleaner Eyepiece or objective lens Tighten eyepiece or not fully screwed into place objective lenses Poor image quality No cover slip on the...
-
Page 8: Warranty Information And Customer Support
VII. Warranty information and customer support Our microscopes are manufactured to meet ISO 9001 standards. Swift warranties are as follows: ● Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year... - Page 9 (1) year warranty All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period.
