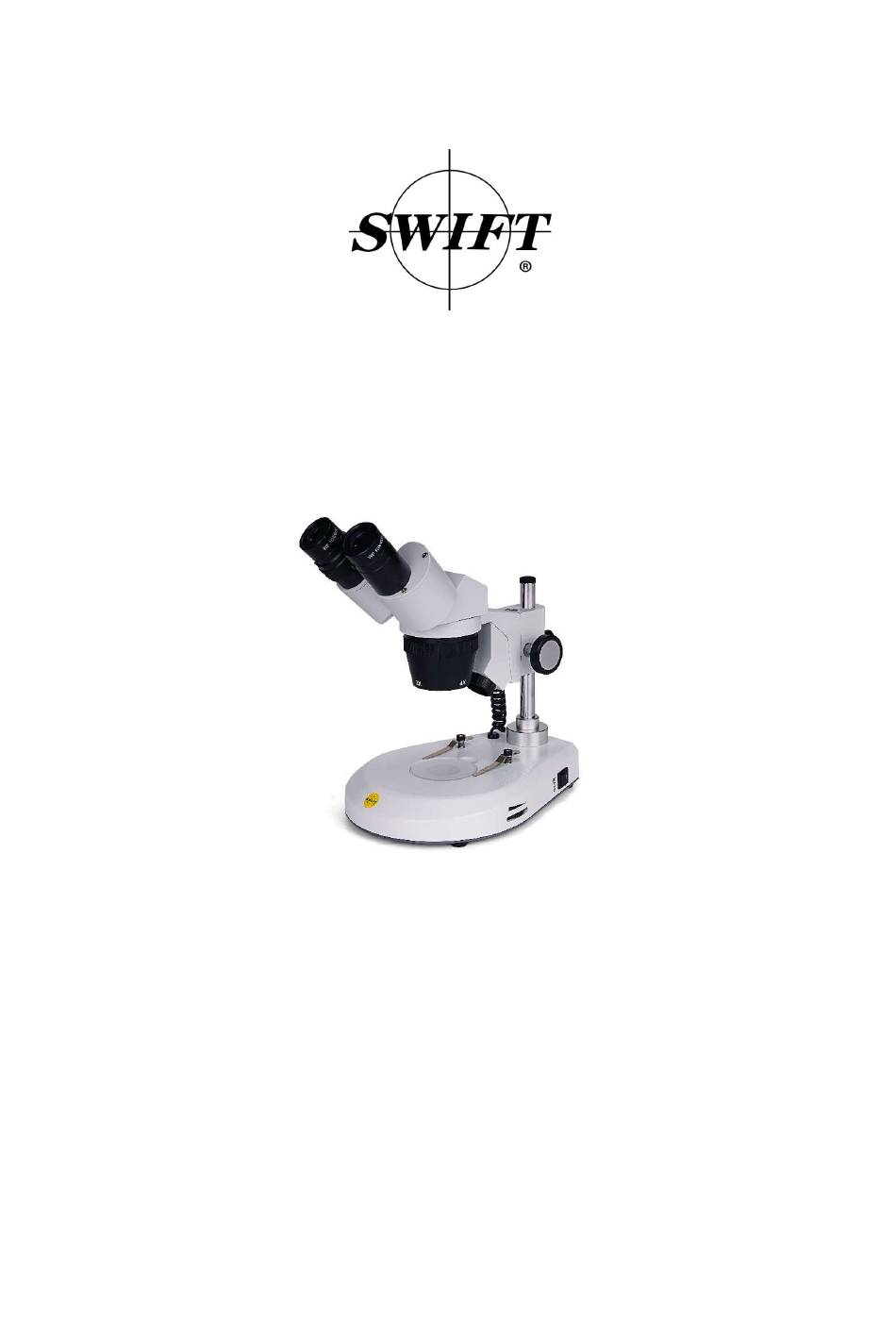

- Page 1 User Guide: The New S30 Stereo Microscope Series Version 2.1...
-
Page 2: Table Of Contents
Welcome to your Swift new S30 Series stereo microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it. -
Page 3: Specifications
Specifications Model S304 S306 S306S Forward-facing Observation tube 360° Rotatable head Binocular Inclination 45° inclined Interpapillary distance 55-75 mm WF10X/20mm, standard Eyepieces 20X/10mm as optional add-ons Diopter adjustment On left tube, +/-5 Objectives 2X, 4X Working distance 57mm 63mm 63mm Focusing travel range 41mm Max. -
Page 4: Parts Of The Microscope
Parts of the microscope S304 with Pillar Transmitted Light Stand (1) Eyepiece (2) Diopter adjustment (3) Forward-facing Binocular head (4) 2X/4X objectives turret (5) Fastening knob (6) Focusing knob (7) Incident light (8) Power switch (9) Stage clips (10) Stage plate (11) Pillar transmitted light stand S304 with Pillar Plain Stand (1) Eyepiece... - Page 5 S306 with Pillar Transmitted Light Stand (1) Eyepiece (2) Diopter adjustment (3) 360° Rotatable Binocular head (4) 2X/4X objectives turret (5) Fastening knob (6) Focusing knob (7) Incident light (8) Power switch (9) Stage clips (10) Stage plate (11) Pillar transmitted light stand S306S with Slim Pillar Transmitted Light Stand (1) Eyepiece (2) Diopter adjustment...
-
Page 6: Assembling The Microscope
S306 with Pillar Plain Stand (1) Eyepiece (2) Diopter adjustment (3) 360 Rotatable Binocular head ° (4) 2X/4X objectives turret (5) Focusing knob (6) Incident light (7) Power switch (8) Stage clips (9) Stage plate (10) Pillar plain stand III. Assembling the microscope The components for the microscope are shipped detached for protection. -
Page 7: Maintenance And Repair
Focusing the microscope To focus the sample, use the focusing knobs located on both sides of the head holder. By turning these knobs, the microscope can be moved up or down a certain distance. This movement is enabled by a “rack and pinion” mechanism. Using the focusing knob, focus the sample until the image is clear. -
Page 8: Troubleshooting
Repair Do not attempt repairs on your own, particularly on the optical parts. Contact a Swift Optical representative through our customer service email or phone line with any issues. VI. Troubleshooting If you have a problem, you may be able to correct it yourself. Here are some common issues and easy solutions you can try before calling customer support for service. -
Page 9: Warranty Information And Customer Support
● One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. Proof of original purchase is required. - Page 10 *For customers living outside the United States, Swift Optical Instruments, Inc. will provide standard warranty service. Both inbound and outbound shipping costs (including duties and taxes) is the responsibility of the consumer. For more information or to submit a repair request, please contact our Customer...
