- Page 1 Swift M10D Series Microscope Use and Care Manual Enduring Quality and Technical Excellence...

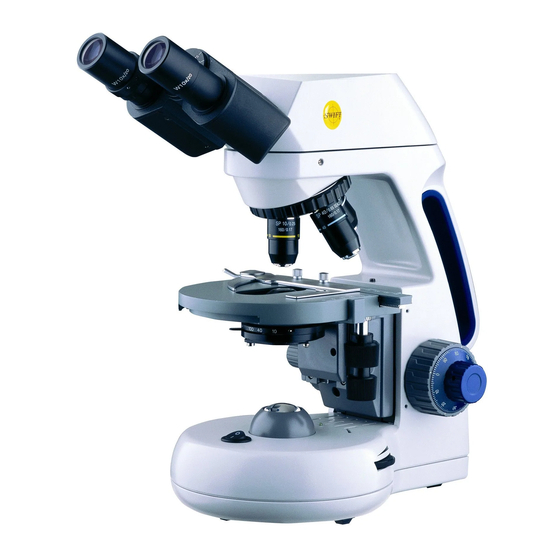

- Page 2 SWIFT M10D SERIES (with 3MP built-in digital camera) The Swift M10D microscope is equipped with superior optics offering bright clarity and crisp resolution, Siedentopf binocular head for ergonomic viewing and durable construction to withstand the rigors of a busy clinical practice or lab. A built-in 3MP digital camera enables users to display, capture pictures or capture video clips of live images.
-
Page 3: Components Of The Microscope
ILLUMINATION the built-in light source which provides the optical system with light. The M10D Series uses a variable intensity 3 volt Light Emitting Diode (LED). -
Page 4: Important Terminology
IRIS DIAPHRAGM a multi-leaf round shaped device which is controlled by a lever. It is similar to a camera shutter, and is installed under the condenser. By moving the lever back and forth, the iris diaphragm opens and closes, increasing and decreasing the contrast of the specimen. If the image is washed out the iris diaphragm is opened too wide. -
Page 5: Focal Length
magnification and convert the image into a field of view easily seen by the human eye. COVER GLASS thin glass cut in circles, rectangles, or squares, for covering the specimen (usually a thickness of 0.15 to 0.17mm). The majority of specimens should be protected by a cover glass, and must be covered when using 40XRD or 100XRD objectives. - Page 6 USING THE SWIFT M10D SERIES MICROSCOPE Once you have learned the terminology and purpose of each component of the microscope, use of the microscope is simple. By following these steps, you will be able to begin studying the specimen quickly and easily.
-
Page 7: Phase Contrast
100XRD objective (between the slide and the objective tip). It is essential to thoroughly clean the objective tip after use. Please contact Swift Optical or your authorized Swift dealer for the appropriate immersion oil to use. IMPORTANT: The focal distance of the 100XRD and 40XRD objective to... -
Page 8: Digital Photography
could only be examined in transmitted light by closing down the substage condenser diaphragm to a small aperture. The narrow cone of illumination produced diffraction with destruction of detail. The M10D can be outfitted with a multi phase system (MA10050) that includes a set of Plan Phase objectives and a special phase condenser carousel. - Page 9 CAUTION Never disassemble, electrical, mechanical or optical components. This servicing should only be done by an authorized Swift technician. The Limited Lifetime Warranty will be null and void if disassembled by a non-Swift dealer. A. PROBLEM - Image appears washed out or weak CORRECTION - 1.
-
Page 10: Care And Cleaning
CARE AND CLEANING Swift microscopes are designed to function with minimal maintenance, but certain components should be cleaned frequently to ensure ease of viewing. The power switch should be turned off or the microscope should be unplugged when not in use. -
Page 11: Led Replacement
LED REPLACEMENT The Swift M10D series is equipped with a 3 watt LED illumination system. The life of the LED may vary depending on use and intensity. To prolong the life of the LED, you should always turn off the unit when not in use. - Page 12 11113 Landmark 35 Drive San Antonio, TX 78233 For all warranty repairs or service requests, please call the Swift repair department at (877) 967-9438 before anything is shipped. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
- Page 13 Swift Optical Instruments, Inc. (877) 967-9438 www.swiftoptical.com...
