- Page 1 User Guide: SW380T...
-
Page 2: Table Of Contents

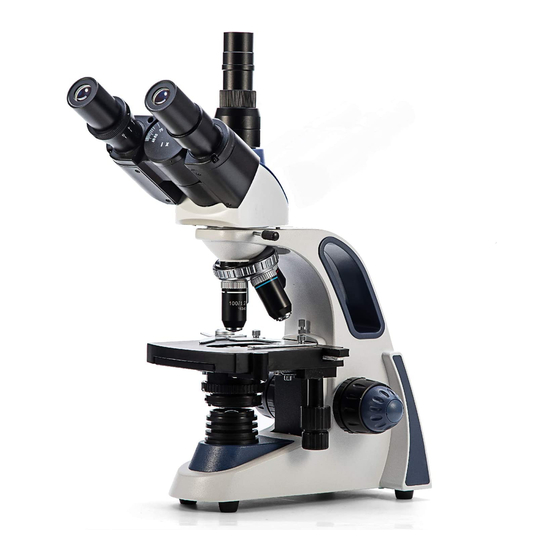

Welcome to your Swift SW380T microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This quick-start guide will introduce you to the components of your new microscope and help you begin to use it. For more information about our microscopes or customer service requests, ... -
Page 3: Specifications
I. Specifications Model SW380T Head 360° rotatable Trinocular Siedentopf Inclination 30° Eyepieces Wide-field 10X and 25X pairs Interpupillary distance 48-75mm Diopter adjustment On left tube, +/-5dp Nosepiece Quadruple revolving Objectives Achromatic 4X, NA 0.1, working distance 37.5mm 10X, NA 0.25, working distance 6.54mm 40X(Spring), NA 0.65, working distance 0.63mm... -
Page 4: Parts Of The Microscope
II. Parts of the microscope III. Assembly and set up Carefully remove the microscope body from the box and set it on a sturdy, flat surface. Remove the microscope head from the box and secure it to the body with the head locking screw, using care not to overtighten. - Page 5 Clip a slide into the slide holder on the stage. Use the X-Y translational control knobs on the right side of the stage to move the stage front to back or the slide holder left to right to center the specimen over the bulb. Move the binocular eyepieces closer together or further apart until you see one image when you look through them.
-
Page 6: Mounting A Camera Attachment
V. Mounting a camera attachment Place the eyepiece adapter into the trinocular camera port on the top of the microscope and mount an eyepiece camera (not included) directly on it. If you would like to use a C-mount camera (not included), unscrew the top ring from the eyepiece adapter. You can then use it as a 1X C-mount for the camera. - Page 7 *Caution: Never disassemble the electrical, mechanical, or optical components. This servicing should only be done by a Swift technician. Issue Possible cause Solution Visual field is uneven, or Nosepiece is not locked in Turn nosepiece until you image is dark at the edges...
-
Page 8: Warranty Information And Customer Support
VI. Warranty information and customer support Our microscopes are manufactured to meet ISO 9001 standards. Swift warranties are as follows: ● Five (5) Year Warranty for Microscopes: Microscopes come with a five (5) year warranty against manufacturing defects. - Page 9 ● One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period.
