Summary of Contents for Swift SW350 Series
- Page 1 User Guide: SW350 Series...

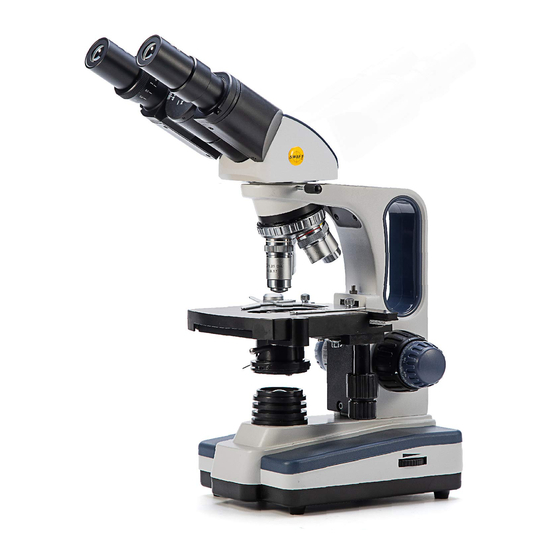

- Page 2 Welcome to your Swift SW350 Series microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it. For more information about our microscopes, software downloads, product...
-
Page 3: Table Of Contents
Table of Contents I. Specifications II. Parts of the microscope III. Assembly and set up IV. Using the microscope V. Mounting a camera attachment(only for Model SW350T) VI. Caring for your microscope VII. Troubleshooting VIII. Warranty information and customer support... -
Page 4: Specifications
I. Specifications Model SW350B SW350T Head 360° rotatable binocular 360° rotatable Trinocular Siedentopf Siedentopf Inclination 30° Eyepieces Wide-field 10X and 25X pairs Interpupillary distance 48-75mm Diopter adjustment On left tube, +/-5dp Nosepiece Quadruple revolving Objectives Achromatic 4X, NA 0.1, working distance 37.5mm 10X, NA 0.25, working distance 7.35mm 40X(Spring), NA 0.65, working distance 0.29mm 100X (Spring, Oil), NA 1.25, working distance 0.18mm... -
Page 5: Parts Of The Microscope
II. Parts of the microscope SW350T III. Assembly and set up Carefully remove the microscope from the box and set it on a sturdy, flat surface. Remove the plastic covers from the eyepiece holders on the microscope's head, then place eyepieces into the holders. You may choose at this time to insert the eyepiece adapter into the trinocular camera port on the top of the microscope and place either a third eyepiece into it or mount an eyepiece camera (not included). -
Page 6: Mounting A Camera Attachment(Only For Model Sw350T)
Move the binocular eyepieces closer together or further apart until you see one image when you look through them. Adjust the bulb brightness to a comfortable intensity with the dimmer wheel. Always start with the lowest power objective lens, in this case the 4X objective, centered over the stage. -
Page 7: Caring For Your Microscope
mount camera (not included), unscrew the top ring from the eyepiece adapter. You can then use it as a 1X C-mount for the camera. The parfocality between the eyepieces and the trinocular port has been preset before shipment and should not need adjustment. If necessary, however, you can rotate the parfocal ring in the eyepiece adapter to adjust the adapter height position and resulting parfocality. -
Page 8: Troubleshooting
If you have a problem, you may be able to correct it yourself. Here are some common issues and easy solutions you can try before calling customer support for service. *Caution: Never disassemble the electrical, mechanical, or optical components. This servicing should only be done by a Swift technician. Issue Possible cause... - Page 9 Oil on objective lens Wipe the lens off with soft cloth and glass cleaner Iris aperture is too narrow Adjust the iris aperture or too wide Image moves while Slide is shifting on the Reposition slide more adjusting focus stage securely in the slide holder Light is too dim Iris aperture is closed too...
- Page 10 Lamp flickers while on Bulb is not inserted into the Check to make sure the socket correctly bulb is fully screwed into the socket Power adapter is not fully Check to make sure that plugged in the adapter is fully connected to wall socket and to the microscope...
-
Page 11: Warranty Information And Customer Support
● One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period. - Page 12 These improvements occasionally involve small modifications to the mechanical structure and optical design of our microscopes. Therefore, some descriptions, illustrations, and specifications in this instruction manual may vary slightly from the microscope you receive. Swift Optical Instruments, Inc. (877) 967-9438 www.swiftoptical.com...
