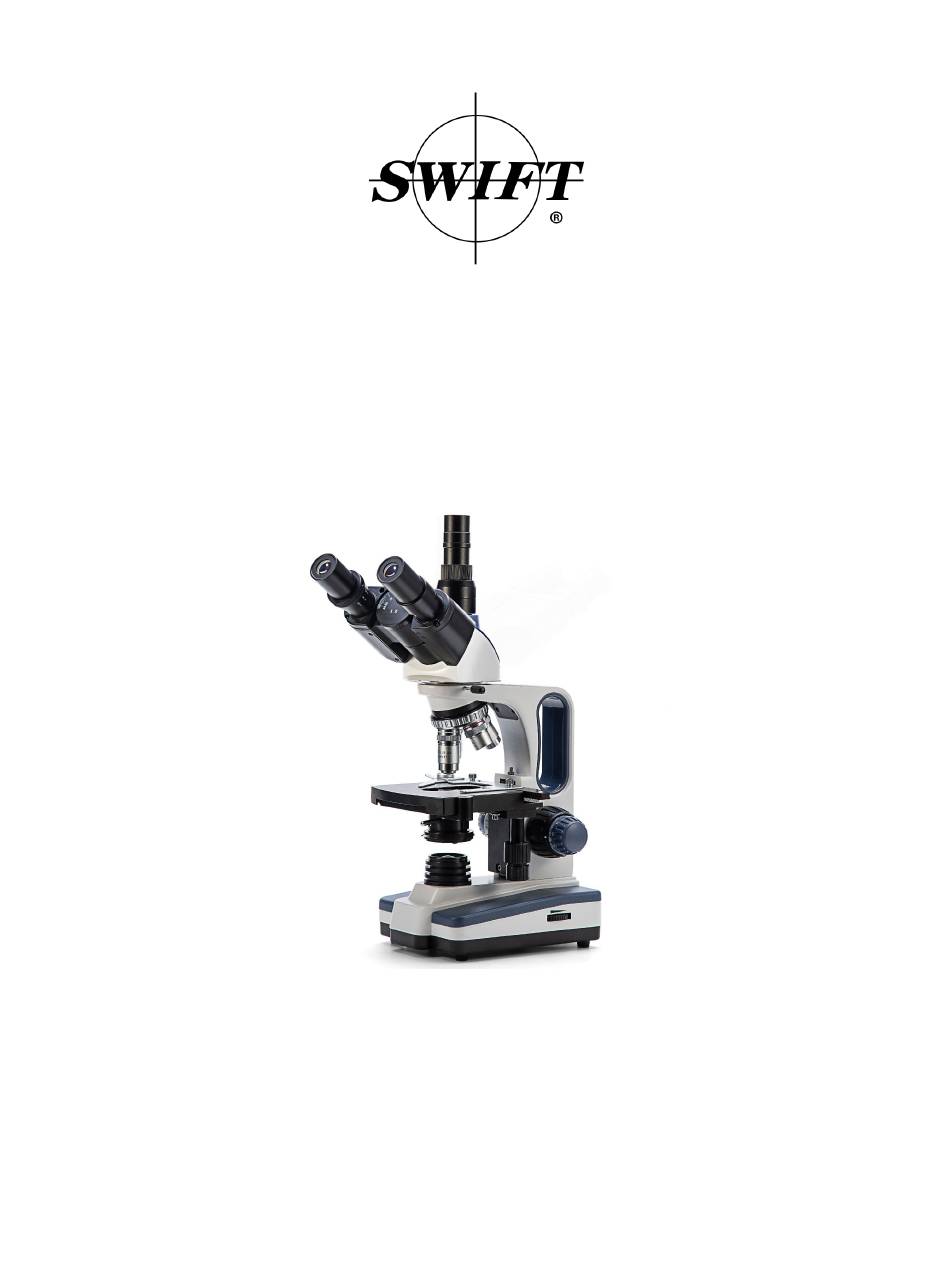

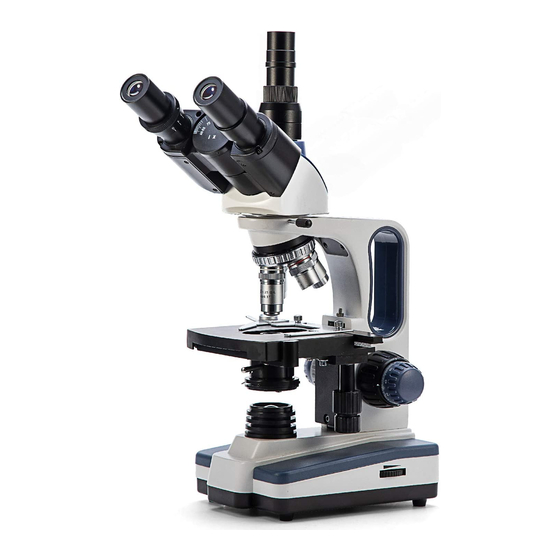

- Page 1 User Guide: SW350T...
-
Page 2: Table Of Contents
Welcome to your Swift SW350T microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This quick-start guide will introduce you to the components of your new microscope and help you begin to use it. For more information about our microscopes or customer service requests, www.swiftoptical.com. -
Page 3: Specifications
I. Specifications Model SW350T Head 360° rotatable Trinocular Siedentopf Inclination 30° Eyepieces Wide-field 10X and 25X pairs Interpupillary distance 48-75mm Diopter adjustment On left tube, +/-5dp Nosepiece Quadruple revolving Objectives Achromatic 4X, NA 0.1, working distance 37.5mm 10X, NA 0.25, working distance 7.35mm 40X(Spring), NA 0.65, working distance 0.29mm... -
Page 4: Parts Of The Microscope
II. Parts of the microscope III. Assembly and set up Carefully remove the microscope from the box and set it on a sturdy, flat surface. Remove the plastic covers from the eyepiece holders on the microscope's head, then place eyepieces into the holders. You may choose at this time to insert the eyepiece adapter into the trinocular camera port on the top of the microscope and place either a third eyepiece into it or mount an eyepiece camera (not included). - Page 5 Clip a slide into the slide holder on the stage. Use the X-Y translational control knobs on the right side of the stage to move the stage front to back or the slide holder left to right to center the specimen over the bulb. Move the binocular eyepieces closer together or further apart until you see one image when you look through them.
-
Page 6: Mounting A Camera Attachment
V. Mounting a camera attachment Place the eyepiece adapter into the trinocular camera port on the top of the microscope and mount an eyepiece camera (not included) directly on it. If you would like to use a C-mount camera (not included), unscrew the top ring from the eyepiece adapter. You can then use it as a 1X C-mount for the camera. - Page 7 *Caution: Never disassemble the electrical, mechanical, or optical components. This servicing should only be done by a Swift technician. Issue Possible cause Solution Visual field is uneven, or Nosepiece is not locked in Turn nosepiece until you image is dark at the edges...
- Page 8 Light is too dim Iris aperture is closed too Open the iris aperture wider Bulb setting is too low Increase intensity on the control wheel Condenser lens is dirty Wipe the condenser lens off with a soft cloth Voltage is too low Use the supplied power adapter Objective lens collides with...
-
Page 9: Warranty Information And Customer Support
(1) year warranty All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period.
Need help?
Do you have a question about the SW350T and is the answer not in the manual?
