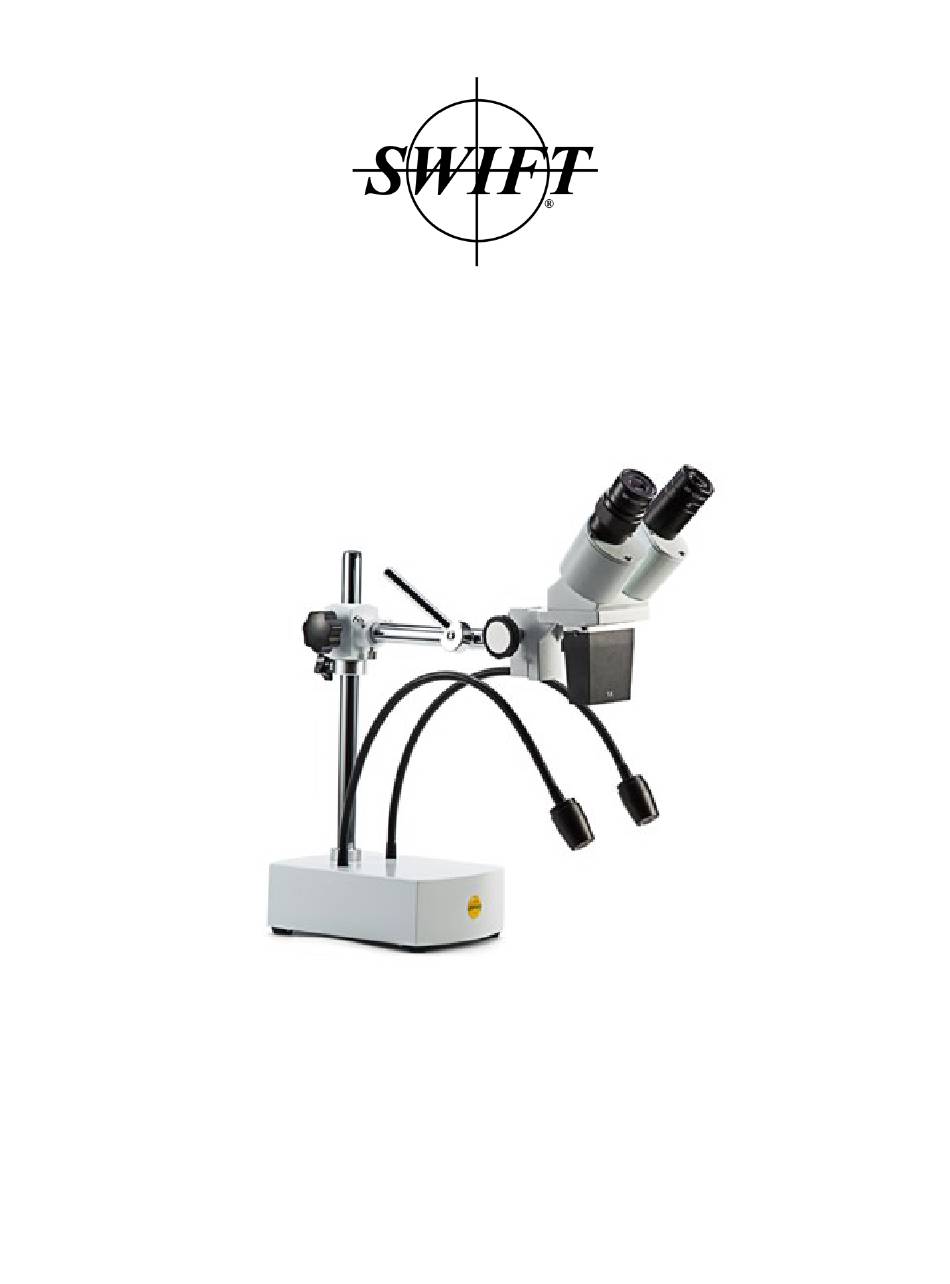

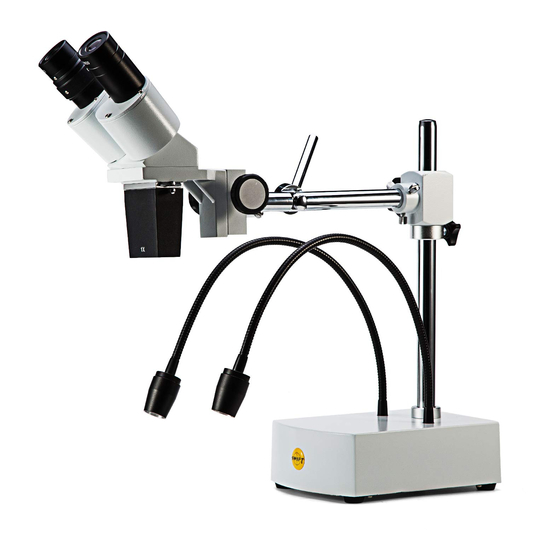

User Guide: the Swift S41-20 Stereo Microscope

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S41-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Swift S41-20

  • Page 1 User Guide: the Swift S41-20 Stereo Microscope...
  • Page 2: Table Of Contents

    Welcome to your Swift S41-20 microscope! Whether you are a seasoned professional or a beginner hobbyist, Swift has the perfect microscope for you. This guide will introduce you to the components of your new microscope and help you begin using it. For more information about our microscopes, software downloads, product manuals, or customer service requests, please visit www.swiftoptical.com.
  • Page 3: Specifications

    I. Specifications Model S41-20 Observation tube Binocular Inclination 45° inclined Interpupillary distance 55-75 mm Eyepieces WF10X, WF20X Objective Total magnifications 10x, 20x Working distance 230mm Focusing Focus travel range 41mm Max. specimen 67mm thickness Stand Single-arm stand, φ18mm vertical pillar, vertical pillar...
  • Page 4: Parts Of The Microscope

    II. Parts of the microscope III. Assembling the microscope The components for the S41-20 microscope are shipped detached for protection. Open the styrofoam packing with care and do not leave any components attached to the packing being removed. Do not discard any of the packing materials until all of the components have been identified.
  • Page 5: Using The Microscope

    Increasing the working surface The two gooseneck lights on this S41-20 microscope are flexible and can be directed in many directions as needed to maximize the surface area covered by the microscope. Likewise, the working arm can swing a full 360° to cover larger surface areas.
  • Page 6: Maintenance And Repair

    Remove the eyepieces when not in use, and place covers on the eyepiece holders. Repair Do not attempt repairs on your own, particularly on the optical parts. Contact a Swift Optical representative through our customer service email or phone line with any issues.
  • Page 7 Issue Possible cause Solution Double images Interpupillary distance is Readjust the eyepieces not correct Diopter adjustment is not Readjust the diopter rings correct Magnification of each Mount eyepieces of the eyepiece is not the same same magnification Dirt appears in the field Dirt on the specimen Clean the specimen of view...
  • Page 8: Warranty Information And Customer Support

    ● One (1) Year Warranty for Electrical and Video components. Does not cover light bulbs, batteries, fuses, or electrical cords. All warranties start from the original date of purchase. Swift provides the repair or replacement of warrantied parts for free, including labor, during the warranty period.
  • Page 9 These improvements occasionally involve small modifications to the mechanical structure and optical design of our microscopes. Therefore, some descriptions, illustrations, and specifications in this instruction manual may vary slightly from the microscope you receive. Swift Optical Instruments, Inc. (877) 967-9438 www.swiftoptical.com...
