Reference Manual
00809-0100-4021, Rev AA
March 2002

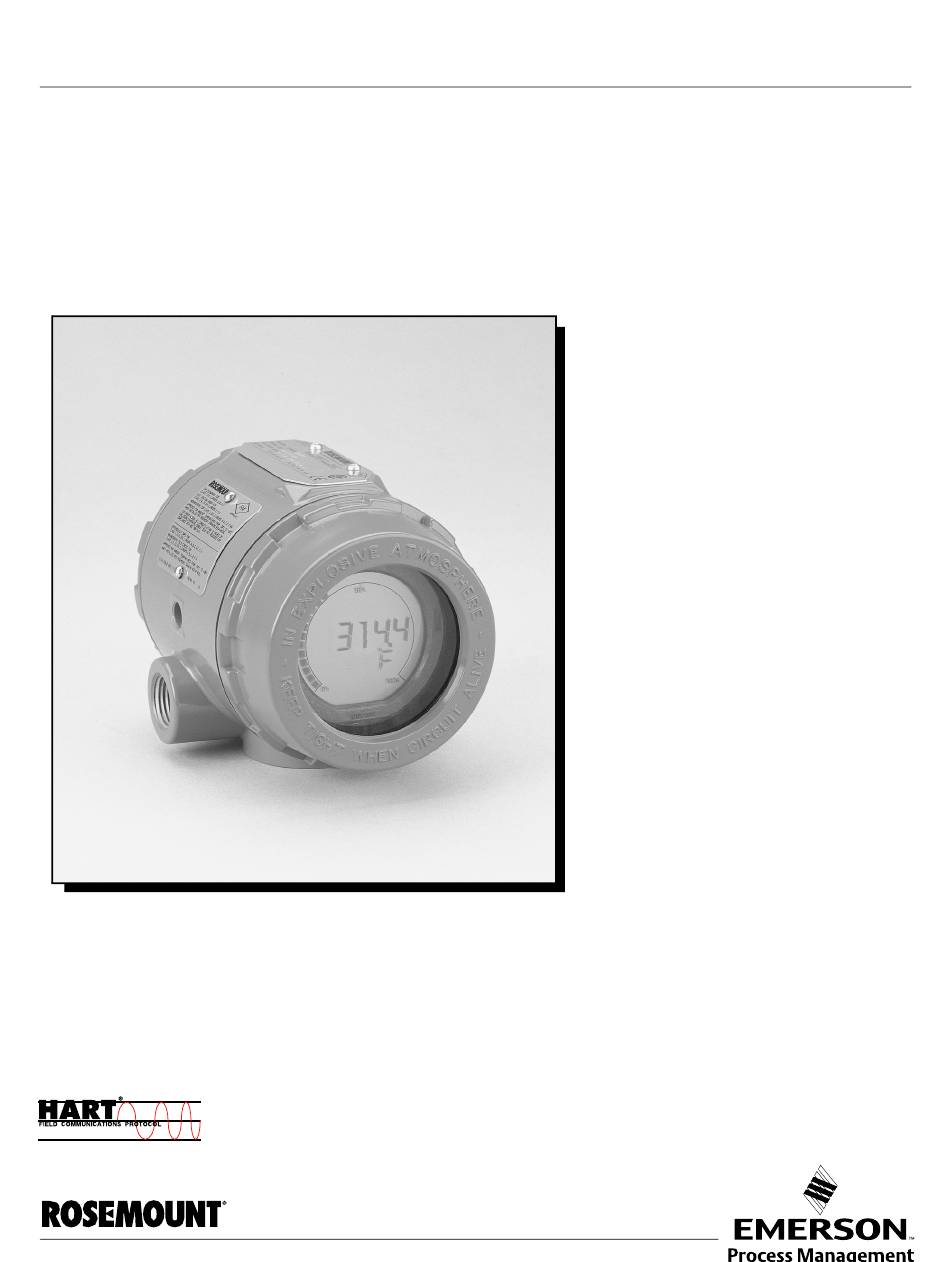

Model 3144P Smart Temperature Transmitter
www.rosemount.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 3144P and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 3144P

Summary of Contents for Emerson Rosemount 3144P

  • Page 1 Reference Manual 00809-0100-4021, Rev AA March 2002 Model 3144P Smart Temperature Transmitter www.rosemount.com...
  • Page 3 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Model 3144P Smart Temperature Transmitter Model 3144P Revision: 5.3.3 HART Communicator Field Device Revision: Dev. v3, DD v2 NOTICE Read this manual before working with the product. For personal and system safety, and for optimum product performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product.

  • Page 5: Table Of Contents

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Table of Contents SECTION 1 Using this Manual ........1-1 Getting Acquainted with the Transmitter .
  • Page 6 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Grounding......... . . 2-13 Shielding .
  • Page 7 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Device Output Configuration ......3-17 PV Range Values .
  • Page 8 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Diagnostic Messages ........4-7 APPENDIX A Specifications.

  • Page 9: Using This Manual

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Section 1 Introduction Using this Manual ....... . page 1-1 Getting Acquainted with the Transmitter .

  • Page 10: Getting Acquainted With The Transmitter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Appendix A: Specifications and Reference Data • Specifications • Dimensional Drawings • Ordering Information • Configuration Options Appendix B: Hazardous Area Approvals • Hazardous Area Approvals Certificates • Installation Drawings Appendix C: Safety Instrumented System (SIS) •...

  • Page 11: Return Of Materials

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 RETURN OF MATERIALS To expedite the return process, call the Rosemount North American Response Center toll-free at 800-654-7768. This center, available 24 hours a day, will assist you with any needed information or materials. The center will ask for the following information: •...

  • Page 12: Using The Manual With The Qig

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 USING THE MANUAL Refer to the following sections when using the QIG in correlation with the manual. WITH THE QIG Step 1: Configure (Bench Calibration) See “Configure the Transmitter” on page 3-7 Step 2: Set the Switches See “Set the Switches”...

  • Page 13: Safety Messages

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Section 2 Installation Safety Messages ....... . . page 2-1 Commissioning: On the Bench or in the Loop? .

  • Page 14: Commissioning: On The Bench Or In The Loop

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 COMMISSIONING: ON The transmitter may be commissioned before or after installation. However, it may be useful to commission the transmitter on the bench before installation THE BENCH OR IN THE to ensure proper operation and to familiarize yourself with its functionality. LOOP? Figure 2-1.

  • Page 15: Considerations

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 CONSIDERATIONS General Electrical temperature sensors, such as resistance temperature detectors (RTDs) and thermocouples (T/Cs), produce low-level signals proportional to temperature. The Model 3144P transmitter converts low-level sensor signals to a standard 4–20 mA dc signal. This current signal is then transmitted to the control room via two power/signal wires.

  • Page 16: Considering Housing Rotation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure 2-2. Model 3144P 60 (108) Transmitter Housing Temperature Rise versus Extension Length for a Test 50 (90) Installation. 40 (72) 30 (54) 20 (36) 10 (18) EXTENSION LENGTH (IN.) Example: The maximum permissible housing temperature rise (T) can be calculated by subtracting the maximum ambient temperature (A) from the transmitter’s ambient temperature specification limit (S).

  • Page 17: Set The Switches

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 SET THE SWITCHES Failure Mode Switch The transmitter monitors itself during normal operation with an automatic diagnostic routine. If the diagnostic routine detects a sensor failure or a failure in the transmitter electronics, the transmitter goes into alarm (high or low, depending on the position of the failure mode switch).

  • Page 18: With A Lcd Meter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 With a LCD meter 1. If the transmitter is installed, set the loop to manual. 2. Remove the housing cover on the electronics side of the transmitter. Do not remove the transmitter cover in explosive atmospheres when the circuit is live.
  • Page 19 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure 2-4. Incorrect Conduit Installation. Conduit Conduit Lines Lines Figure 2-5. Recommended Sealing Mounting with Drain Seal. Compound Conduit for Union Coupling with Extension Field Wiring Thermowell Poured Conduit Seal Sensor Hex (Where Required) NOTE Each transmitter is clearly marked with a tag indicating the approvals.

  • Page 20: Typical North American Installation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Typical North American 1. Mount the thermowell to the pipe or process container wall. Be sure to tighten thermowells and sensors. Perform a leak check before starting Installation the process. 2. Attach any necessary unions, couplings, and extension fittings. Be sure to seal the fitting threads with silicone or tape (if required).

  • Page 21: Typical European Installation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Typical European 1. Mount the thermowell to the pipe or the process container wall. Install and tighten thermowells and sensors. Perform a leak check before Installation starting the process. 2. Attach a connection head to the thermowell. 3.

  • Page 22: Installation In Conjunction With A Model 333 Hart Tri-Loop

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Installation in Use the dual-sensor option Model 3144P transmitter that is operating with two ® sensors in conjunction with a Model 333 HART Tri-Loop HART-to-Analog Conjunction with a Signal Converter to acquire an independent 4–20 mA analog output signal for Model 333 HART each sensor input.

  • Page 23: Installing The Lcd Meter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Installing the LCD Meter Transmitters ordered with the LCD meter option (Option Code M5) are shipped with the LCD meter installed. After-market installation of the LCD meter on a conventional Model 3144P transmitter requires a small instrument screwdriver and the LCD meter kit, which includes: •...

  • Page 24: Connect The Wiring And Power Up

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 CONNECT THE WIRING AND POWER UP Field Wiring All power to the transmitter is supplied over the signal wiring. Signal wiring does not need to be shielded, but twisted pairs should be used for the best results.

  • Page 25: Grounding

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure 2-10. Connecting Power/Signal Terminals a Communicator to a Transmitter Loop. The signal wire may be grounded at any point or left ungrounded. ≤ ≤ 1100 Power Supply A HART communicator may be connected at any termination point in the signal loop. The signal loop must have between 250 and 1100 ohms load for communications.

  • Page 26: Transmitter Housing

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Option 2 1. Connect the sensor wiring shield to the transmitter housing, provided the transmitter housing is grounded (see "Transmitter Housing"). 2. Ensure the shield at the sensor end is electrically isolated from surrounding fixtures that may be grounded.

  • Page 27: Surges/Transients

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Surges/Transients The transmitter will withstand electrical transients of the energy level usually encountered in static discharges or induced switching. However, high-energy transients, such as those induced in wiring from nearby lightning strikes, can damage both the transmitter and the sensor.

  • Page 28: Rtd Or Ohm Inputs

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 RTD or Ohm Inputs If the transmitter is mounted remotely from a 3- or 4-wire RTD, it will operate within specifications, without recalibration, for lead wire resistances of up to 10 ohms per lead (equivalent to 1,000 feet of 20 AWG wire). In this case, the leads between the RTD and transmitter should be shielded.

  • Page 29: Power Supply

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Power Supply An external power supply is required to operate the Model 3144P (not included). The input voltage range of the transmitter is 12 to 42.4 V DC. This is the power required across the transmitter power terminals. The power terminals are rated to 42.4 V DC.
  • Page 30 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 2-18...

  • Page 31: Safety Messages

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Section 3 Commissioning Safety Messages ....... . . page 3-1 Communication Tool .

  • Page 32: Communication Tool

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 COMMUNICATION TOOL Using a Model 275 HART NOTE The information in this section applies to the use of a Model 275 HART Communicator Communicator to communicate with a Model 3144P transmitter. The Model 3144P must be configured for certain basic variables to operate.

  • Page 33: Connections And Hardware

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 the communicator to the latest DD or answer NO to the question above and default to the generic transmitter functionality. To see a list of enhancements included in the improved transmitters, see “Model 3144P and Models 3144 / 3244MV Differences”...

  • Page 34: Action Keys (See Figure 3-2)

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Action Keys (see Figure 3-2) Symbol Description ON/OFF Key Use this key to power the HART Communicator. When the communicator is on, it searches for a transmitter on the 4–20 mA loop. If a device is not found, the communicator displays the message “No Device Found.

  • Page 35: Fast Key Sequences

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Fast Key Sequences HART fast key sequences provide quick online access to transmitter variables and functions. Instead of stepping through the menu structure using the action keys, press a HART fast key sequence to move from the ONLINE menu to the desired variable or function.

  • Page 36: Online Menu

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 NOTE Online communication with the transmitter automatically loads the current transmitter data to the HART Communicator. Online data changes are activated by pressing SEND (F2). The transfer function is used for off-line data retrieval and sending.

  • Page 37: Configure The Transmitter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 CONFIGURE THE TRANSMITTER HART Menu Tree Figure 3-3 displays a complete Model 3144P menu tree for use with the Model 275 HART Communicator. Options listed in bold type indicate that a selection provides other options.

  • Page 38: Fast Key Sequences

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Fast Key Sequences Fast key sequences are listed below for common transmitter functions. NOTE: The fast key sequences assume that Device Descriptor Dev v3, DD v2 is being used. Table 3-1 provides alphabetical function lists for all Model 275 HART Communicator tasks as well as their corresponding fast key sequences.

  • Page 39: Review Configuration Data

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 REVIEW Before operating the Model 3144P in an actual installation, review all of the factory-set configuration data to ensure that it reflects the current application. CONFIGURATION DATA Review Review the transmitter configuration parameters set at the factory to ensure accuracy and compatibility with the particular application.

  • Page 40: Sensor Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Sensor Configuration Sensor configuration contains information for updating the sensor type, connections, units, and damping. HART Fast Keys 1, 3, 2 Change Type and Connections HART Fast Keys 1, 3, 2, 1 The Connections command allows the user to select the sensor type and the number of sensor wires to be connected.

  • Page 41: Output Units

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 To input Callendar-Van Dusen constants, perform the following procedure: 1. From the HOME screen, select 1 Device Setup, 3 Configuration, 2 Sensor Config, 1 Change Type/Conn., 1 Sensor 1. Select OK after you set the control loop to manual.

  • Page 42: Sensor 2 Serial Number

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Sensor 2 Serial Number HART Fast Keys 1, 3, 2, 4, 3 The Sensor 2 S/N variable provides a location to list the serial number of a second sensor. 2-Wire RTD Offset HART Fast Keys 1, 3, 2, 3, 6 The 2-wire Offset command allows the user to input the measured lead wire...

  • Page 43: Average Temperature

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 1. From the HOME screen, select 1 Device Setup, 3 Configuration, 1 Variable Mapping, 5 Variable Re-Map to prepare to set the transmitter to display differential temperature. Set the control loop to manual and select OK.

  • Page 44: First-Good Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 5. Select OK to return the control loop to automatic control. 6. Select HOME to return to the Online menu. 7. Select 1 Device Setup, 3 Configuration, 3 dual sensor configuration, 2 average, 1 avg units to set the desired average temperature units.

  • Page 45: Hot Backup Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Hot Backup Configuration HART Fast Keys 1, 3, 3, 4 The Config Hot BU command configures the transmitter to automatically use Sensor 2 as the primary sensor if Sensor 1 fails. With Hot Backup enabled, the primary variable (PV) must either be First Good or Sensor Average (see “Average Temperature”...

  • Page 46: Drift Alert Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 For information on using Hot Backup in conjunction with the HART Tri-Loop see “Use with the HART Tri-Loop” on page 3-28. Drift Alert Configuration HART Fast Keys 1, 3, 3, 5 The Drift Alert command allows the user to configure the transmitter to set a warning flag (via HART) or go into analog alarm when the temperature difference between Sensor 1 and Sensor 2 exceeds a user-defined limit.

  • Page 47: Device Output Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 12. Select 3 Drift Damping to enter a drift alert damping value. This value must be between 0 and 32 seconds. 13. Select 1 Drift Alert Option and select Enable Alarm or Warning only. 14.

  • Page 48: Alarm And Saturation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 When damping is enabled, the transmitter will output a value at time (t) according to the following equation: (–t/damping) Output = Input – De (ts) D = input step change at time t = 0 At the value to which the damping time constant is set, the transmitter output is at 63 percent of the input change;...

  • Page 49: Hart Output

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 The high saturation level must be between 20.5 mA and the high alarm value minus 0.1 mA. Example: The high alarm value has been set to 20.8 mA. Therefore, the low saturation level, S, must be as follows: 20.5 ≤...

  • Page 50: Tag

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 HART Fast Keys 1, 3, 5, 1 The Tag variable is the easiest way to identify and distinguish between transmitters in multi-transmitter environments. Use it to label transmitters electronically according to the requirements of the application. The defined tag is automatically displayed when a HART-based communicator establishes contact with the transmitter at power-up.

  • Page 51: Intermittent Threshold

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Intermittent Threshold HART Fast Keys 1, 3, 6, 3 The threshold value can be changed from the default value of 0.2%. Turning the Intermittent Sensor Detect feature OFF or leaving it ON and increasing the threshold value above the default does not affect the time needed for the transmitter to output the correct alarm signal after detecting a true open sensor condition.

  • Page 52: Transmitter Behavior With Intermittent Sensor Detect Off

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Transmitter Behavior with Intermittent Sensor Detect OFF When the Intermittent Sensor Detect feature is switched OFF, the transmitter tracks all process temperature changes, even if they are the consequence of an intermittent sensor. (The transmitter in effect behaves as though the threshold value had been set at 100%.) The output delay due to the intermittent sensor algorithm will be eliminated.

  • Page 53: Trim The Transmitter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 1. Connect a exteranl ampere meter to the transmitter. To do so, shunt the power to the transmitter through the meter at some point in the loop. 2. From the HOME screen, select 1 Device Setup, 2 Diag/Serv, 1 Test Device, 1 Loop Test before performing a loop test.
  • Page 54 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Perform a sensor trim if the transmitters digital value for the primary variable does not match the plant’s standard calibration equipment. The sensor trim function calibrates the sensor to the transmitter in temperature units or raw units.

  • Page 55: Active Calibrator And Emf Compensation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 7. Select 1 Lower Only, 2 Upper Only or 3 Lower and Upper at the SELECT SENSOR TRIM POINTS prompt. 8. Adjust the calibration device to the desired trim value (must be within the selected sensor limits).

  • Page 56: Output Trim Or Scaled Output Trim

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Output Trim or Scaled Output Trim Perform an output trim or a scaled output trim if the digital value for the primary variable matches your plant standard but the transmitter’s analog output does not match the reading on the output device.

  • Page 57: Scaled Output Trim

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Scaled Output Trim HART Fast Keys 1, 2, 2, 3 The Scaled D/A Trim command matches the 4 and 20 mA points to a user-selectable reference scale other than 4 and 20 mA (2–10 volts, for example).

  • Page 58: Setting The Loop To Manual

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Setting the Loop to When preparing to send or request data that would disrupt the loop or change the output of the transmitter, set the process application loop to manual. The Manual Model 275 HART Communicator Interface will prompt the user to set the loop to manual when necessary.

  • Page 59: Special Considerations

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 1. From the Home screen, select 1 Device setup, 3 Configuration, 1 Variable Mapping, 5 Variable Remapping. Select OK to set the control loop to manual. The communicator displays the Primary Variable screen. 2.
  • Page 60 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 2. Configure Channel 1 of the HART Tri-Loop as TV (differential temperature). If either sensor should fail, the differential temperature output will be +9999 or –9999 (high or low saturation), depending on the position of the Failure Mode Switch (see “Failure Mode and Security Switch Locations”...

  • Page 61: Safety Messages

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Section 4 Operation and Maintenance Safety Messages ....... . . page 4-1 Hardware .

  • Page 62: Hardware

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 HARDWARE Diagnostics If a malfunction is suspected despite the absence of a diagnostics message on the HART communicator display, follow the procedures described in Table 4-1 to verify that transmitter hardware and process connections are in good working order.

  • Page 63: Maintenance

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 POTENTIAL SYMPTON SOURCE CORRECTIVE ACTION Low Output or Sensor Element • Connect a HART communicator and enter the No Output transmitter test mode to isolate a sensor failure. • Check if the process variable is out of range. Loop Wiring •...

  • Page 64: Disassembling The Electronics Housing

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Disassembling the Electronics Housing The transmitter is designed with a dual-compartment housing; one compartment contains the electronics module, and the other compartment contains all wiring terminals and the communication receptacles. Removing the Electronics Module The Model 3144P electronics module is located in the compartment opposite the wiring terminals.

  • Page 65: Assembling The Electronics Housing

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 ASSEMBLING THE ELECTRONICS HOUSING Replacing the Use the following procedure to reassemble the electronics housing for the Model 3144P transmitter: Electronics Module 1. Examine the electronics module to ensure that the failure mode and transmitter security switches are in the desired positions.
  • Page 66 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 LOOP FIXED During a loop test or a 4–20 mA output trim, the analog output defaults to a fixed value. The Process Variable line of the display alternates between the amount of current selected in milliamperes and “WARN.” The Process Variable Unit line toggles between “LOOP,”...

  • Page 67: Model 275 Hart Communicator

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 ALARM DRIFT ALERT The analog output is in alarm. Drift Alert alarm is enabled and the difference between Sensor 1 and Sensor 2 has exceeded the user-specified limit. The transmitter is still operating, but one of the sensors may be malfunctioning.
  • Page 68 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Message Description Download data from Prompts user to press SEND softkey to initiate a memory to configuration memory device transfer. to device Exceed field width Indicates that the field width for the current arithmetic variable exceeds the device-specified description edit format.
  • Page 69 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Message Description There are write only There are write-only variables that have not been set by the user. variables which have These variables should be set or invalid values may be sent to not been edited.
  • Page 70 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 4-10...

  • Page 71: Specifications

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Appendix A Specifications and Reference Data Specifications ........page A-1 Dimensional Drawings .
  • Page 72 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Update Time Approximately 0.5 seconds for a single sensor (1 second for dual sensors.) Local Indication Optional five-digit LCD meter includes 0–100% bar graph. Digits are 0.4 inches (8 mm) high. Display options include engineering units (°F, °C, °R, K, ohms, and millivolts), percent, and milliamperes.

  • Page 73: Physical

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 The alarm levels are user-selectable using the failure mode switch. If failure occurs, the position of the hardware switch determines the direction in which the output is driven (HI or LO). The switch feeds into the digital-to-analog (D/A) converter, which drives the proper alarm output even if the microprocessor fails.

  • Page 74: Performance

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Performance The Model 3144P transmitter maintains a specification conformance of at least 3 σ. Stability • ±0.1% of reading or 0.1 °C, whichever is greater, for 24 months for RTDs • ±0.1% of reading or 0.1 °C, whichever is greater, for 12 months for thermocouples 5 Year Stability •...
  • Page 75 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Accuracy Table A-2. Model 3144P Input Options and Accuracy Sensor Recommended Digital Options Sensor Reference Input Ranges Min. Span Accuracy Accuracy 2-, 3-, 4-wire RTDs °C °F °C °F °C °F Pt 100 IEC 751, 1995 (α...
  • Page 76 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Ambient Temperature Effect Transmitters may be installed in locations where the ambient temperature is between –40 and 85 °C (–40 and 185 °F). Each transmitter is individually characterized over this ambient temperature range at the factory in order to maintain excellent accuracy performance.

  • Page 77: Dimensional Drawings

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 DIMENSIONAL DRAWINGS Transmitter Exploded View Switch Location Failure Mode and Security Switch Failure Mode Diagram of Cover with Wiring Diagram Label Switches Security 4.4 in. (112 mm) Nameplate Connector Electronics Module 4.4 in.
  • Page 78 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Optional Transmitter Mounting Brackets Option Code B4 Bracket 1.04 (26) 1.0 (25) 2.81 ±0.03 (71) 3.65 0.41 (10) ±0.06 (92) Diameter 0.375 (10) 2.0 ± 0.03 Diameter (50) (2 Places) 1.55 (39) Option Code B5 Bracket 2 (51) Diameter Washer (Provided) 1.0 (2.5)

  • Page 79: Ordering Information

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 ORDERING INFORMATION Model Product Description 3144P Smart Temperature Transmitter Code Transmitter Housing Type/Conduit Entry Field Mount Housing (Dual-Compartment), Aluminum, –14 NPT Field Mount Housing (Dual-Compartment), Aluminum, M20 x 1.5 (CM20) Field Mount Housing (Dual-Compartment), Aluminum, PG 13.5 (PG11) Field Mount Housing (Dual-Compartment), Aluminum, JIS G Field Mount Housing (Dual-Compartment), Stainless Steel, –14 NPT...
  • Page 80 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Dual-Input Custom Configuration (only with measurement type option code 2) Hot Backup Average temperature with Hot Backup and sensor drift alert Two independent sensors Differential temperature Average temperature Assembly Assemble transmitter to a sensor assembly (hand tight, Teflon (PTFE) tape where appropriate, fully wired) Assemble Transmitter to a sensor assembly (hand tight, no Teflon (PTFE) tape, unwired) Assemble transmitter to a sensor assembly (wrench tight, Teflon (PTFE) tape where appropriate, fully wired) Special Certifications...

  • Page 81: Configuration

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Hardware Tag • No charge • 2 lines of 28 characters (56 characters total) • Tags are stainless steel • Permanently attached to transmitter • Character height is -in. (1.6mm) • A wire-on tag is available upon request. 5 lines of 12 characters (60 characters total) Software Tag •...

  • Page 82: Custom

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Custom The Model 3144P transmitter can be ordered with custom configuration. The table below lists the requirements necessary to specify a custom configuration. Custom Transmitter Configuration (Option Code C1) Option Code C1 allows you to specify the following data in addition to the standard configuration parameters.

  • Page 83: Namur Compliant Operation (Option Codes A1 And Cn

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 NAMUR Compliant Operation (Option Codes A1 and CN) Option Codes A1 and CN specify that the transmitter linear output and alarm levels be pre-set at the factory to comply with NAMUR standards. Option Code CN is set to low alarm.

  • Page 84: Average Temperature With Hot Backup And Drift Alert

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Average Temperature with Hot Backup and Drift Alert (Option Code U2) This configuration is ideal for critical applications such as safety interlocks and control loops. The dual-sensor configuration should be used in conjunction with a dual-element sensor or two sensing elements measuring the same process temperature.

  • Page 85: Average Temperature (Option Code U6

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Average Temperature (Option Code U6) This configuration can be used when the average measurement of two different process temperatures is needed. If a sensor fails, the analog alarm will be activated and the digital primary variable will hold the measurement of the working sensor.

  • Page 86: External Ground Lug Assembly (Option Code G1

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Code Description Assemble transmitter to Sensor Assembly (hand tight, Teflon, [PTFE] tape where appropriate, fully wired) Assemble transmitter to Sensor Assembly (hand tight, Teflon, no [PTFE] tape, unwired) Assemble transmitter to Sensor Assembly (wrench tight, Teflon, [PTFE] tape where appropriate, fully wired) External Ground Lug Assembly (Option Code G1) The external ground-lug assembly provides an auxiliary grounding point for...

  • Page 87: Lcd Meter (Option Code M5

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 LCD Meter (Option Code M5) The LCD meter for the Model 3144P transmitter provides local indication of the transmitter output, and abbreviated diagnostic messages governing transmitter operation. The meter features a five-character liquid crystal display that provides a direct reading of the digital signal from the microprocessor.
  • Page 88 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 A-18...

  • Page 89: Hazardous Locations Installations

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Appendix B Hazardous Area Approvals Hazardous Locations Installations ....page B-1 Hazardous Locations Certifications ....page B-1 Installation Drawings .
  • Page 90 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Factory Mutual and Canadian Standards Association Approvals KB Combination of K5 and K6 KEMA/CENELEC Flameproof Approval E1 Flameproof Approval (Zone 1) ATEX Category Marking Ex II 2 G EEx d IIC T6 (T = –40 to 70 °C) EEx d IIC T5 (T = –40 to 80 °C)
  • Page 91 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 K1 Combination of E1, N1, and I1 CENELEC and CSA Approvals KA Combination of K1 and K6 Japanese Industrial Standard (JIS) Flameproof Certification E4 Without optional meter: Ex d IIB T6 (T = 60 °C) With optional meter: Ex d IIB T4 (T = 60 °C)
  • Page 92 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Table B-3. Input Entity Parameters Power/Loop Sensor = 30 V dc = 4.5 V dc max:in = 300 mA = 51 mA max:in = 1.0 W = 0.057 W max:in = 0.005 µF = 13.6 V dc = 20 µH = 56 mA...

  • Page 93: Installation Drawings

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 INSTALLATION Rosemount Drawing 03144-0320, 1 Sheet: Factory Mutual Explosion-proof Installation Drawing. DRAWINGS Rosemount Drawing 03144-0321, 3 Sheets: Factory Mutual Intrinsic Safety and Nonincendive Field Circuit Configuration Installation Drawing. Rosemount Drawing 03144-0322, 1 Sheet: CSA Intrinsic Safety Approval Configuration Installation Drawing.
  • Page 94 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure B-1. Factory Mutual Explosion-Proof Installation Drawing 03144-0320, Rev. AB...
  • Page 95 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure B-2. Factory Mutual Intrinsic Safety and Noincendive Field Circuit Configuration Installation Drawing 03144-0321, Rev.AB...
  • Page 96 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002...
  • Page 97 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002...
  • Page 98 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure B-3. CSA Intrinsic Safety Approval Configuration Installation Drawing 03144-0322, Rev. AA B-10...
  • Page 99 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure B-4. ISSEP\CENELEC Flame-Proof Temperature Measurement Assembly Installation Drawing 03144-0324, Rev. AA B-11...
  • Page 100 Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Figure B-5. Standard Australia Quality Assurance Services Flameproof Temperature Measurement Assembly Installation Drawing 03144-0325, Rev. AA B-12...

  • Page 101: Overview

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 Appendix C Safety Instrumented System (SIS) Overview ........page C-1 Failure Rate Data .

  • Page 102: Failure Rate Data

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 FAILURE RATE DATA Model 3144P with and The failure rates for the Model 3144P transmitter operating in 4-wire RTD mode, excluding the failure rates for the sensing device, are as follows: without a RTD λ...

  • Page 103: Installation

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 INSTALLATION No special installation practices are necessary with the Model 3144P in a Safety Instrumented System. However, a full review of the Failure Mode and Security switches is required. Follow the standard installation requirements (see Section 2: Installation).

  • Page 104: With A Lcd Meter

    Reference Manual 00809-0100-4021, Rev AA Model 3144P March 2002 With a LCD meter 1. If the transmitter is installed, set the loop to manual. 2. Remove the housing cover on the electronics side of the transmitter. Do not remove the transmitter cover in explosive atmospheres when the circuit is live.
  • Page 105 Reference Manual 00809-0100-4021, Rev AA Model 3144P February 2001 Index Numerics Configuration ..3-7 A-11 Connection Custom ....A-12 Sensor .
  • Page 106 Reference Manual 00809-0100-4021, Rev AA Model 3144P February 2001 Dimensional Drawings ..A-7 Functional Hazardous Locations LCD Meter Faceplate ..A-7 Specifications ... . . A-1 Certifications .
  • Page 107 Reference Manual 00809-0100-4021, Rev AA Model 3144P February 2001 Set Switches and Jumpers ..2-5 Changing Position ..2-5 Maintenance Performance With a LCD meter ..2-6 Electronics Housing .
  • Page 108 Reference Manual 00809-0100-4021, Rev AA Model 3144P February 2001 Table Ordering Model 3144P ..A-9 Spare Parts ..A-10 Hardware ....A-11 Software .
