Lattice Semiconductor mVision AR0234 Quick Start

QuickSTART

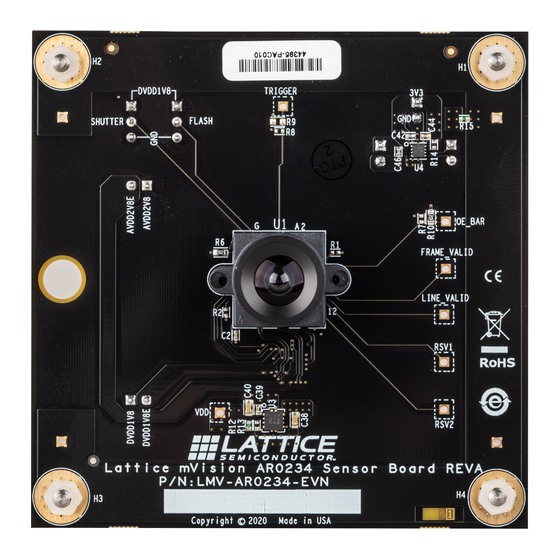

This document provides a brief introduction to Lattice mVision AR0234 Sensor Board.
Camera, lens and holder
1
Check Kit Contents
The Lattice mVision AR0234 Sensor Board kit contains the following items:
OnSemi AR0234 Sensor Module with adapter cable for EVDK
„
Quick Start Guide
„
2
Preparing the Hardware and Running the Demonstration
Before starting the evaluation, please have the following items available and ready to
use on the test bench. Follow the steps below to prepare the hardware before applying
power.
Embedded Vision Development Kit (EVDK) with camera modules removed.
„
Lattice mVision AR0234 Sensor Board with lens holder and lens assembled.
„
2 jumpers placed on J7 and J8 headers of AR0234 Sensor Board.
„
Connect the EVDK and AR0234 Sensor Board together using the Flex Cable as
„
shown below.
Lattice mVision AR0234 Sensor Board
IR_CUT
Motor
Control
Power (3.3 V)
IR_CUT
Motor
Flash & Shutter
Control
Control, Power &
MIPI (from EVDK)
Power
(1.8 V)
Power
(2.8 V)
