hygena Valencia Assembly Instructions Manual

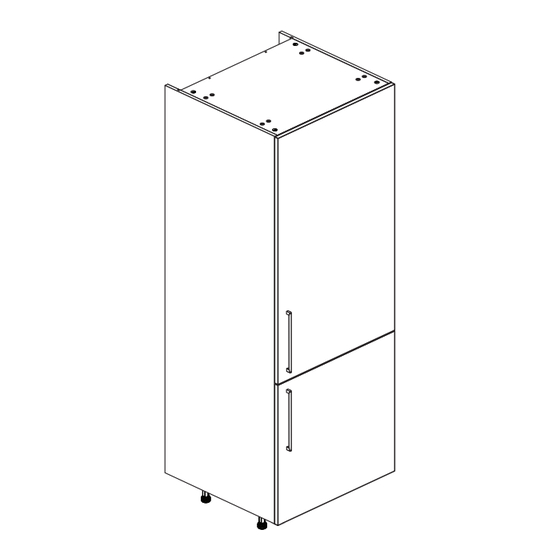

Larder cabinet 600 mm
Hide thumbs
Also See for Valencia:
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (108 pages)
Advertisement
Quick Links
Valencia -
Assembly Instructions -
hygena
If you are fitting a
Fridge/Freezer inside
this unit please refer to
the instructions that
were supplied with the
appliance.
We recommend that you
contact a registered
installer.
Dimensions
Width - 60cm
Depth - 59cm
Height - 213cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
600mm Larder Cabinet
Please keep for future reference
Cabinet
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
633/7777
633/2923
633/2758
198/9405
633/2844
194/7605
MADE IN
BRITAIN
Issue 3 - 05/08/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hygena Valencia
Summary of Contents for hygena Valencia
- Page 1 Valencia - 600mm Larder Cabinet Assembly Instructions - Please keep for future reference Cabinet 633/7777 hygena Black Door Pack 633/2923 Cream Door Pack 633/2758 Oak Door Pack 198/9405 White Gloss Door Pack 633/2844 White HN Door Pack 194/7605 If you are fitting a...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 47kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 Loose Shelf (DPF079A) Top/Base (DPF078B) (568 x 431mm) x 3 (569 x 494mm) x 2 Small Back (D1148) (164.5 x 570mm) Fixed Shelf (DPF108B) (569 x 494mm) Valencia Door 8 Valencia Larder Door (DPF148B) (DPF156B) (597 x 716mm) (597 x 1258mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Choose which way If you would If you would you would like the like your doors like your doors doors to open to open this to open this...
- Page 6 Assembly Instructions Step 3 IMPORTANT Only carry out this step if you are building a housing for a Prepare the left side fridge/freezer. If you are building a Larder Cupboard you have already prepared this panel in Step 2. Refer to step 1 and, if required, fit 5 hinge plates onto the left...
- Page 7 Assembly Instructions Step 5 IMPORTANT Only carry out this step if you are building a housing for a Prepare the right side fridge/freezer. If you are building a Larder Cupboard you have already prepared this panel in Step 4. Refer to step 1 and, if required, fit 5 hinge plates onto the right...
- Page 8 Assembly Instructions Step 7 Fit the legs to the base Push the leg sockets into the holes in the base as shown. Secure each leg socket with 3 screws Tap in the centre plug on each leg socket Push the leg into the leg socket Step 8...
- Page 9 Assembly Instructions Step 9 Prepare the fixed shelf Insert 4 large locking nuts into the fixed shelf as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into the fixed shelf Note: Wooden dowels must not stick out from the edge by more than...
- Page 10 Assembly Instructions Step 11 IMPORTANT Fit the small back Only carry out this step if you are building a housing for a fridge/freezer. If you are building a Larder Cupboard please Position the small back ignore this step. between the top and fixed shelf , as shown and secure it into...
- Page 11 Assembly Instructions Step 13 IMPORTANT Fit the back Only carry out this step if you are building a Larder Cupboard. If you are building a housing for a fridge/freezer please ignore this step. Slide the back along the grooves in the side panels Note: These 3 holes must be...
- Page 12 Assembly Instructions Step 14 Secure the unit to the Warning: Take wall care when drilling the wall Using the brackets that you do not fitted to the back edge of drill into any pipes, wires the sides etc. If in doubt, consult screw the unit to the an expert.
- Page 13 Assembly Instructions Step 16 IMPORTANT Fit the loose shelves Only carry out this step if you are building a Larder Cupboard. If you are building a housing for a fridge/freezer please ignore Insert 4 shelf studs this step. the required height for each of the shelves Lower the loose shelves down onto the shelf...
-
Page 14: Right Side
Assembly Instructions Step 18 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL Drill the handle holes in the door Important Important: Please follow If you have these instructions ONLY drill the carefully. fitted the 2 holes in each hinges on the Lay the doors... - Page 15 Assembly Instructions Step 19 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL Drill the handle holes in the door Important: Please follow Important If you have these instructions carefully. fitted the ONLY drill the hinges on the 2 holes in each Lay the doors...
- Page 16 Assembly Instructions Step 20 Fit doors and handles 2 people are needed Push and here click Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinge(s). Push Push the hooks on the hinge arm underneath the front of the hinge plate...
- Page 17 Assembly Instructions Step 21 Adjust the doors if needed Height adjustment. Loosen screws A on hinge plates and move door up or down as required. Retighten screw A. Forward and Back adjustment. Loosen screw B on hinge arm and move door in or out as required.
- Page 18 Assembly Instructions Step 22 Fit the hinge covers Push the hinge covers onto the hinge arms Step 23 Fit the plinth After cutting the plinth to the required length, offer the plinth up to the unit and using a pencil, mark Black Plinth Pack 608/2345 the position of the unit’s...
- Page 19 Assembly Instructions Step 24 Fit other products to the unit To fit other products to this unit e.g. worktops etc., please follow the instructions packed with them. We recommend that you consult a qualified joiner or kitchen fitter. Assembly is complete Warning: The unit is heavy.
- Page 20 ALR2657...
