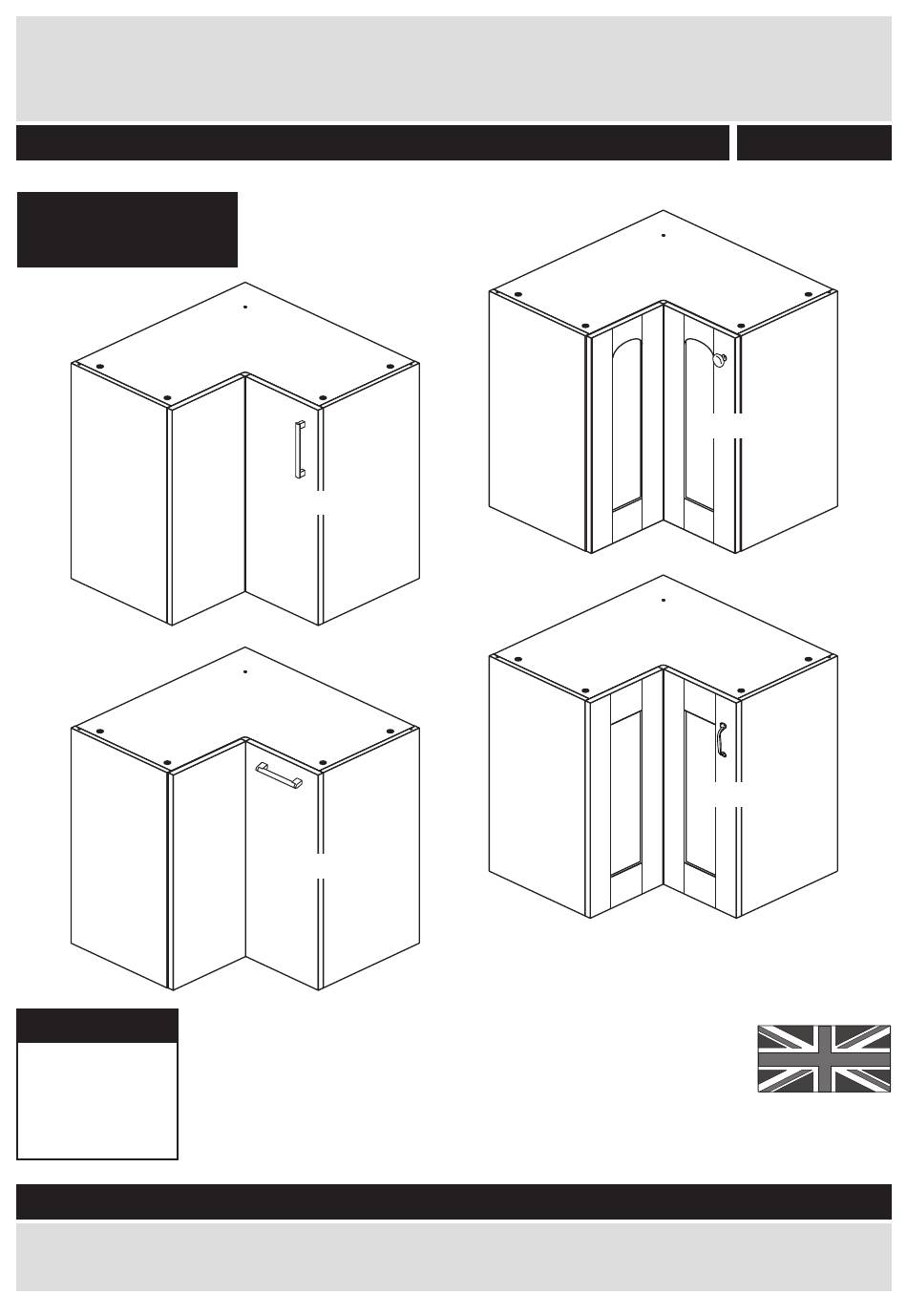

Range Kitchen - Corner Wall Cabinet

Assembly Instructions -

hygena

Dimensions

Width - 57cm

Depth - 57cm

Height - 72cm

Important -

Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

Please keep for future reference

Monza

Imola

656/5752

Ricadi

Pesaro

MADE IN

BRITAIN

Issue 1 - 03/09/10

Need help?

Do you have a question about the Monza and is the answer not in the manual?

Questions and answers

Summary of Contents for hygena Monza

Page 1 Range Kitchen - Corner Wall Cabinet Assembly Instructions - 656/5752 Please keep for future reference hygena Ricadi Monza Pesaro Imola Dimensions Width - 57cm Depth - 57cm MADE IN Height - 72cm BRITAIN Important - Please read these instructions fully before starting assembly...
Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 16kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Top/Base Loose Shelf Back (DPF101A) (DPF102A) (DPF103A) (566 x 566mm) x 2 (545 x 545mm) (205 x 684mm) End Panel...
Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 5 Please check you have all the panels listed below Doors and handles are supplied separately in fascia packs. Please see below for the correct fascia code for this unit in your chosen fascia design. Monza Oak 656/6225 Monza Beech 656/6218...
Page 6 Imola White Gloss 656/6328 Pesaro Cream 656/6359 Pesaro Oak 656/6342 Ricadi 656/6366 25mm Screw 25mm Screw F132) F132) Monza Door Handle Imola Door Handle (F123) (F124) 25mm Screw F132) 25mm Screw Hole Plug F132) (F114) Pesaro Door Handle Ricadi Door Handle...
Page 7 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Choose which way you would like the door to open You can fit the door to the left side or right side. If you would like your door If you would like your door to open this way, fit the...
Page 8 Assembly Instructions Step 3 Prepare the right end panel This will be the Refer to step 1 and, if right end panel required, fit 2 hinge plates onto the right end panel , orientated as shown. Screw 4 metal dowels into the holes shown on the right end panel Note: Tighten metal...
Page 9 Assembly Instructions Step 5 Join the right end panel and base Finished front edge Push the base onto the right end panel Use a screwdriver to tighten the 2 large locking nuts fitted to the base Note: Turn the large locking nuts as far as they will go - more than...
Page 10 Assembly Instructions Step 7 Fit the back Push the back onto the base and secure with screw Step 8 Fit the top Push the top onto the right end panel and back Use a screwdriver to tighten the 2 large locking nuts fitted to the top...
Page 11 Assembly Instructions Step 9 Insert the loose shelf Place the loose shelf inside the unit. Step 10 Fit the left end panel Push the left end panel onto the base and top Use a screwdriver to tighten the 4 large locking nuts fitted to the base...
Page 12 Assembly Instructions Step 11 Fit the loose shelf Insert 5 shelf studs the required height. Lift and then lower the loose shelf down onto the shelf studs Step 12 Fit the backs Slide the left back and right back along the grooves in the top and base and into...
Page 13 Assembly Instructions Step 13 Fit right back Secure the left back and right back to the sides of the back using 8 nails...
Page 14 Assembly Instructions Step 14 18mm 18mm Fit the unit to the wall 37mm 37mm If you are joining this unit to another one, also refer to step 10. To fix the unit to the wall, place the unit in the required position and Warning: The lightly mark the outline of...
Page 15 Assembly Instructions Step 15 Joining units together Fittings have been supplied so you are able to join units together. Make sure that your first unit is level. Push the other unit up against first unit and ensure both units are level.
Page 16 Assembly Instructions Step 16 MONZA, IMOLA and PRESARO DOORS ONLY If you have the Ricadi Doors please see Step 17 or 18. Prepare the doors Fit 2 hinge plates onto a door , making sure that they face the same way as the diagram.
Page 17 Assembly Instructions Step 17 RICARDI DOORS ONLY - LEFT SIDE HINGE PLATES Prepare the doors Only follow this step if you have fitted the hinge Fit 2 hinge plates plates to the LEFT side onto the carcase door (see step 1). , making sure that they face the same way as the diagram.
Page 18 Assembly Instructions Step 18 RICARDI DOORS ONLY - RIGHT SIDE HINGE PLATES Prepare the doors Only follow this step if you have fitted the hinge Fit 2 hinge plates plates to the RIGHT side onto the carcase door (see step 1). , making sure that they face the same way as the diagram.
Page 19 Assembly Instructions Step 19 MONZA DOOR ONLY Carefully choose which 2 holes you will need to drill Drill the handle holes in the door Drill these 2 holes if you have fitted the Important: Please follow hinges to the left side.
Page 20 Assembly Instructions Step 20 IMOLA DOOR ONLY Carefully choose which 2 holes you will need to drill Drill the handle holes in the door Drill these 2 holes if you have fitted the Important: Please follow hinges to the left side. these instructions carefully.
Page 21 Assembly Instructions Step 21 PESARO DOOR ONLY Carefully choose which 2 holes you will need to drill Drill the handle holes in the door Drill these 2 holes if you have fitted the Important: Please follow hinges to the left side. these instructions carefully.
Page 22 Assembly Instructions Step 22 RICADI DOOR ONLY Carefully choose which hole you will need to drill Drill the handle hole in the door Drill these 2 holes if you have fitted the Important: Please follow hinges to the left side. these instructions carefully.
Page 23 Press the front of the hinge arm against the This Diagram shows a monza door being fitted. hinge plate until it You may have chosen different doors. clicks into place. If you need to...
Page 24 Assembly Instructions Step 25 Push and click Fit the carcase door 2 people are needed here Note: The easiest way to attach the hinged door is to fit the top hinge first, then align and fit the other hinge. Push Push the hooks on the bent hinge arm underneath the front of...
Page 25 Assembly Instructions Step 26 Fit the soft close unit Push a soft close unit onto each cantileved hinge arm until it clicks into place. Step 27 Adjust the doors if needed Adjust the hinge plates and arms by turning the screws on them clockwise or anti- clockwise.
Page 26 Assembly Instructions Step 28 Fit other products to the unit To fit other products to this unit, please follow the instructions packed with them. We recommend that you consult a qualified joiner or kitchen fitter. Assembly is complete Warning: The unit is heavy.
Page 28 ALR2527...
Page 29 Valencia - Corner Wall Cabinet Assembly Instructions - Please keep for future reference Cabinet 656/5752 hygena Black Door Pack 633/2992 Cream Door Pack 633/2978 Oak Door Pack 205/3079 White Gloss Door Pack 633/2985 White HN Door Pack 203/7215 Dimensions Width - 57cm...
Page 30 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 16kgs. space to layout the parts before recommend the Please lift with care. starting.
Page 31 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Top/Base Loose Shelf Back (DPF101A) (DPF102A) (DPF103A) (545 x 545mm) (205 x 684mm) (566 x 566mm) End Panel...
Page 32 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
Page 33 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Choose which way you would like the door to open You can fit the door to the left side or right side. If you would like your door If you would like your door to open this way, fit the...
Page 34 Assembly Instructions Step 3 Prepare the right end panel This will be the Refer to step 1 and, if right end panel required, fit 2 hinge plates onto the right end panel , orientated as shown. Screw 4 metal dowels into the holes shown on the right end panel Note: Tighten metal...
Page 35 Assembly Instructions Step 5 Join the right end panel and base Finished front edge Push the base onto the right end panel Use a screwdriver to tighten the 2 large locking nuts fitted to the base Note: Turn the large locking nuts as far as they will go - more than...
Page 36 Assembly Instructions Step 7 Fit the back Push the back onto the base and secure with screw Step 8 Fit the top Push the top onto the right end panel and back Use a screwdriver to tighten the 2 large locking nuts fitted to the top...
Page 37 Assembly Instructions Step 9 Insert the loose shelf Place the loose shelf inside the unit. Step 10 Fit the left end panel Push the left end panel onto the base and top Use a screwdriver to tighten the 4 large locking nuts fitted to the base...
Page 38 Assembly Instructions Step 11 Fit the loose shelf Insert 5 shelf studs the required height. Lift and then lower the loose shelf down onto the shelf studs Step 12 Fit the backs Slide the left back and right back along the grooves in the top and base and into...
Page 39 Assembly Instructions Step 13 Fit right back Secure the left back and right back to the sides of the back using 8 nails...
Page 40 Assembly Instructions Step 14 18mm 18mm Fit the unit to the wall 37mm 37mm If you are joining this unit to another one, also refer to step 10. To fix the unit to the wall, place the unit in the required position and Warning: The lightly mark the outline of...
Page 41 Assembly Instructions Step 15 Joining units together Fittings have been supplied so you are able to join units together. Make sure that your first unit is level. Push the other unit up against first unit and ensure both units are level.
Page 42 Assembly Instructions Step 16 Prepare 1 of the doors to be the carcase door Fit 2 hinge plates onto a door , making sure that they face the same way as the diagram. Push fit 2 cantilevered hinge arms into the door Secure each hinge arm with 2 screws Note: Before securing...
Page 43 Assembly Instructions Step 17 Fit the carcase door Push and click 2 people are needed here Note: The easiest way to attach the carcase door is to fit the top hinge first, then align and fit the other hinge. Push the hooks on the cantilevered hinge Push underneath the...
Page 44 Assembly Instructions Step 18 Prepare the other door to be the hinged door Push fit 2 bent hinge arms into the other door Secure each hinge arm with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the front edge of the door.
Page 45 Assembly Instructions Step 19 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL Drill the handle holes in the hinged door Drill these 2 holes if Important: Please follow you have fitted the these instructions hinges to the left side.
Page 46 Assembly Instructions Step 20 Push and click Fit the hinged door 2 people are needed here Note: The easiest way to attach the hinged door is to fit the top hinge first, then align and fit the other hinge. Push Push the hooks on the bent hinge arm underneath the front of...
Page 47 Assembly Instructions Step 21 Fit the soft close unit Push a soft close unit onto each cantileved hinge arm until it clicks into place. Step 22 Adjust the doors if needed Adjust the hinge plates and arms by turning the screws on them clockwise or anti- clockwise.
Page 48 Assembly Instructions Step 23 Fit other products to the unit To fit other products to this unit, please follow the instructions packed with them. We recommend that you consult a qualified joiner or kitchen fitter. Assembly is complete Warning: The unit is heavy.
