Valencia -
Assembly Instructions -
hygena
Dimensions
Width - 60cm
Depth - 59cm
Height - 87cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
3 Drawer Cabinet
Please keep for future reference
Cabinet
Black Drawer Pack
Cream Drawer Pack
Oak Drawer Pack
White Gloss Drawer Pack
White HN Drawer Pack
656/5855
656/6469
656/6483
204/7834
656/6476
198/6264
R
R
R
MADE IN
BRITAIN
Issue 2 - 31/07/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hygena Valencia 656/5855
Summary of Contents for hygena Valencia 656/5855

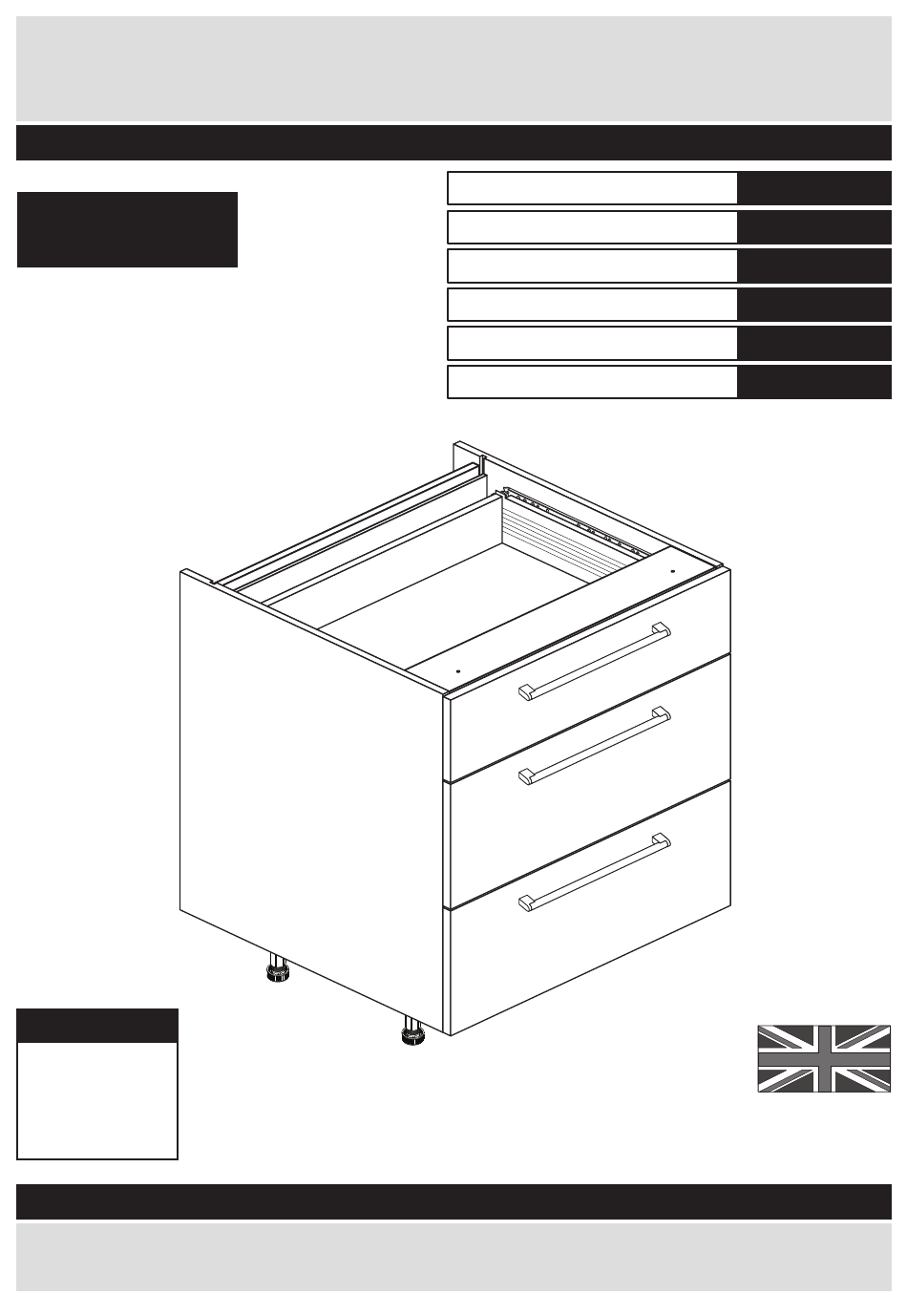

- Page 1 Valencia - 3 Drawer Cabinet Assembly Instructions - Please keep for future reference Cabinet 656/5855 hygena Black Drawer Pack 656/6469 Cream Drawer Pack 656/6483 Oak Drawer Pack 204/7834 White Gloss Drawer Pack 656/6476 White HN Drawer Pack 198/6264 Dimensions Width - 60cm...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 18kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Base 4 Cross Rail (DPF087A) (DPF088A) (DPF078A) (DPF080A) (720 x 560mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 6 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Fit the left runners to the left side Fit the 3 left runners marked ‘L’ to the left side The 1st screw uses...
- Page 7 Assembly Instructions Step 3 Prepare the left side Screw 4 metal dowels into the holes shown on the left side Note: Tighten metal dowels up fully against the panels. Fit a bracket flush to 150mm the top edge of the left side , about 150mm in from the groove, see...
- Page 8 Assembly Instructions Step 5 Fit soft close units to the right side Fit the 3 right soft close units marked ‘R’ to the right side using 3 screws Step 6 Prepare the right side Screw 4 metal dowels into the holes shown on the right side Fit a bracket flush to...
- Page 9 Assembly Instructions Step 7 Prepare the base Insert 4 large locking nuts into the base as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into the base shown. Note: Wooden dowels must not stick out from the edge by more than 10mm or they may...
- Page 10 Assembly Instructions Step 9 Join the right side and base Push the base onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the base Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 11 Assembly Instructions Step 11 Fit the 2 cross rails Push each cross rail onto the right side Support this cross rail until the left side has been Use a screwdriver to fitted in the next step. tighten the large locking fitted to each cross rail Note: Turn the large...
- Page 12 Assembly Instructions Step 13 Fit the back Slide the back along the grooves in the side panels Step 14 Secure the back The bottom edge of the back must be flush with the bottom edge of the base Secure the back the back edge of the base using 3 screws...
- Page 13 Assembly Instructions Step 15 Warning: Take care when Secure the unit to the drilling wall the wall that you do not drill into Using the brackets any pipes, wires fitted to the back edge of etc. If in doubt, the sides consult an expert.
- Page 14 Assembly Instructions Step 17 Fit the unit to worktop To fit the unit to the worktop use 2 screws to screw up through the holes in the cross rail as shown. Then use 2 screws screw up through the brackets as shown.
- Page 15 Assembly Instructions Step 19 Fit the drawer base Push the drawer base against the bottom of the drawer sides While holding it in place, secure the drawer base using 4 screws into the front and back holes, as shown. Step 20 Fit the standard drawer back Push the standard...
- Page 16 Assembly Instructions Step 22 Prepare the pan Top of drawer fronts drawer front Fit 2 pan bar sockets onto each pan drawer front using the screws packed with them. Wheel on outside surface Step 23 Prepare the pan drawers Wheel on outside Fit the left drawer side Top of...
- Page 17 Assembly Instructions Step 25 Fit the pan bar holders Position the pan bar holders against the side edge of the pan drawer back flush with the top edge. Secure each pan bar holder with screws Step 26 Fit the pan drawer back Push the pan drawer back...
- Page 18 Assembly Instructions Step 28 Fit the pan bars Push each pan bar down into the pan bar socket until it clicks into place. Push the recess at the back of the pan bar into the slot on the pan bar holder If the pan bar too long or too short to fit into the pan bar holder...
- Page 19 Assembly Instructions Step 30 Prepare the soft close units Before fitting the drawers you will need to push the movable part of the 6 soft close units forward until it clicks into place. Step 31 Fit the drawers Slide the wheels on the drawer sides over the wheels on the runners...
- Page 20 Assembly Instructions Step 32 Black Plinth Pack 608/2345 Cream Plinth Pack 608/2369 Fit the plinth Oak Plinth Pack 205/5668 After cutting the plinth to White Gloss Plinth Pack 608/2352 the required length, offer the plinth up to the unit White HN Plinth Pack 198/9917 and using a pencil, mark the position of the unit’s...
