hygena Valencia Assembly Instructions Manual
300mm larder cabinet
Hide thumbs
Also See for Valencia:
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (20 pages) ,
- Assembly instructions manual (108 pages)
Advertisement
Quick Links
Valencia -
Assembly Instructions -
hygena
Dimensions
Width - 30cm
Depth - 59cm
Height - 213cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800

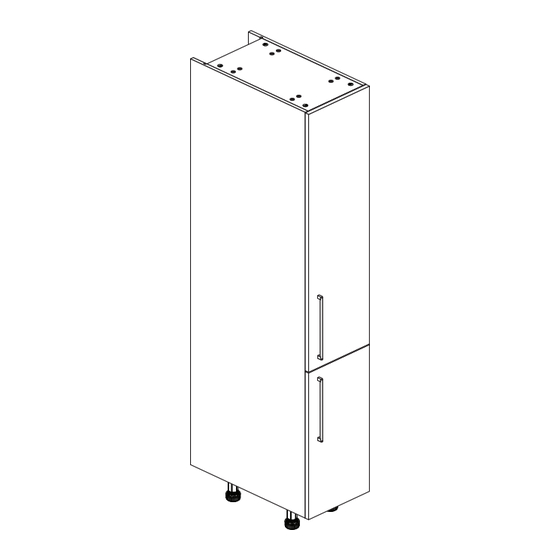

300mm Larder Cabinet
Please keep for future reference
Cabinet
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
758/4457
758/4464
758/4471
205/3787
758/4488
205/4676
MADE IN
BRITAIN
Issue 2 - 04/08/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for hygena Valencia
Summary of Contents for hygena Valencia
- Page 1 Valencia - 300mm Larder Cabinet Assembly Instructions - Please keep for future reference Cabinet 758/4457 hygena Black Door Pack 758/4464 Cream Door Pack 758/4471 Oak Door Pack 205/3787 White Gloss Door Pack 758/4488 White HN Door Pack 205/4676 Dimensions Width - 30cm...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 45kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Back (DPF106B) (DPF107B) (DPF1149A) (1980 x 560mm) (1980 x 560mm) (280 x 1978mm) Horizontal...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Choose which way you would like the doors to open You can fit the doors to If you would If you would the left side or right side.
- Page 6 Assembly Instructions Step 3 Prepare the right side Refer to step 1 and, if required, fit 5 hinge plates onto the right side , as shown. Screw 6 metal dowels into the holes shown on the right side Fit a bracket to the right side , flush with...
- Page 7 Assembly Instructions Step 5 Fit the legs to one of the horizontals Push the leg sockets into the holes in one of the horizontals Secure each leg socket with 3 screws Tap in the centre plug on each leg socket Push the leg into the leg socket...
- Page 8 Assembly Instructions Step 7 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 6 large locking nuts fitted to the 3 horizontals Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 9 Assembly Instructions Step 8 Note: These 2 Fit the back holes must be nearest the bottom Slide the back edge of the panel. along the grooves in the side panels The bottom edge of the back must be flush with the bottom edge of the horizontal with the feet Secure the back...
- Page 10 Assembly Instructions Step 9 Secure the unit to the Warning: Take wall care when drilling the wall Using the brackets that you do not fitted to the back edge of drill into any pipes, wires the sides etc. If in doubt, consult screw the unit to the an expert.
- Page 11 Assembly Instructions Step 11 Fit the 3 loose shelves Insert 4 shelf studs the required height for each of the shelves Lower the loose shelves down onto the shelf studs Step 12 Prepare the doors Push fit 2 hinges into the door and 3 hinges...
-
Page 12: Left Side
Assembly Instructions Step 13 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH HANDLE HOLES YOU WILL NEED TO DRILL Drill the handle holes in the door Important Important: Please follow If you have these instructions ONLY drill the carefully. fitted the 2 holes in each hinges on the Lay the doors... - Page 13 Assembly Instructions Step 14 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH HANDLE HOLES YOU WILL NEED TO DRILL Drill the handle holes in the door Important: Please follow Important If you have these instructions carefully. fitted the ONLY drill the hinges on the 2 holes in each Lay the doors...
- Page 14 Assembly Instructions Step 15 Fit doors and handles 2 people are needed Push and here click Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinge(s). Push Push the hooks on the hinge arm underneath the front of the hinge plate...
- Page 15 Assembly Instructions Step 16 Adjust the doors if needed Height adjustment. Loosen screws A on hinge plates and move door up or down as required. Retighten screw A. Forward and Back adjustment. Loosen screw B on hinge arm and move door in or out as required.
- Page 16 Assembly Instructions Step 17 Fit the hinge covers Push the hinge covers onto the hinge arms Step 18 Fit the plinth After cutting the plinth to the required length, offer the plinth up to the unit and using a pencil, mark Black Plinth Pack 608/2345 the position of the unit’s...
- Page 17 Assembly Instructions Step 19 Fit other products to the unit To fit other products to this unit e.g. worktops etc., please follow the instructions packed with them. We recommend that you consult a qualified joiner or kitchen fitter. Assembly is complete Warning: The unit is heavy.
- Page 20 ALR2722...
