Valencia -
Assembly Instructions -
hygena
Dimensions
Width - 60cm
Depth - 59cm
Height - 213cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800

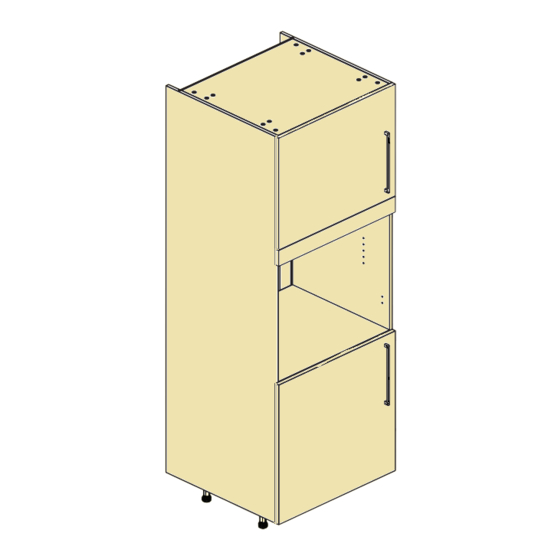

Tall Appliance Cabinet
Please keep for future reference
Cabinet
Black Door Pack
Cream Door Pack
Oak Door Pack
White Gloss Door Pack
White HN Door Pack
656/5824
633/3733
633/3757
204/9533
633/3740
204/7786
MADE IN
BRITAIN
Issue 3 - 09/02/15
Advertisement
Related Manuals for hygena Valencia 656/5824
Summary of Contents for hygena Valencia 656/5824
- Page 1 Valencia - Tall Appliance Cabinet Assembly Instructions - Please keep for future reference Cabinet 656/5824 hygena Black Door Pack 633/3733 Cream Door Pack 633/3757 Oak Door Pack 204/9533 White Gloss Door Pack 633/3740 White HN Door Pack 204/7786 Dimensions Width - 60cm...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 44kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Upper Back (DPF110A) (579 x 582mm) Lower Back (DPF111A) (579 x 714mm) Left Side Right Side (DPF106A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Choose which way If you would If you would you would like the like your doors like your doors doors to open to open this to open this...
- Page 6 Assembly Instructions Step 3 Prepare the right side Refer to step 1 and, if required, fit 4 hinge plates onto the right side , as shown. Screw 8 metal dowels into the holes shown on the right side Step 4 Prepare the base and Insert 4 large locking nuts...
- Page 7 Assembly Instructions Step 5 Fit the legs to the base Push the leg sockets into the holes in the base as shown. Secure each leg socket with 3 screws Tap in the centre plug on each leg socket Push the leg into the leg socket Step 6...
- Page 8 Assembly Instructions Step 7 Prepare the 2 fixed shelves Insert 4 large locking nuts into the fixed shelves as shown. Note: Arrow on locking nut must point towards hole in edge of panel. Tap 6 wooden dowels into the fixed shelves Note: Wooden dowels must not stick out from the edge by more than...
- Page 9 Assembly Instructions Step 8 Fit the fixed shelves Push the fixed shelves onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the fixed shelves Note: Turn the large Finished front edge locking nuts as far as they will go - more than 1/2 a turn.
- Page 10 Assembly Instructions Step 10 Fit 4 Brackets Fix 4 brackets against the lower fixed shelf Push each bracket against the lower fixed shelf and screw it to the side panel using screws Step 11 Fit the back Slide the upper back along the grooves in the side panels Slide the lower back...
- Page 11 Assembly Instructions Step 12 Joining units together Fittings have been supplied so you are able to join units together. Make sure that your first unit is level. Push the other unit up against first unit and ensure both units are level.
- Page 12 Assembly Instructions Step 15 Step 13 Fit the loose shelves Insert 4 shelf studs the required height for each of the shelves Lower the loose shelves down onto the shelf studs Step 14 Prepare the doors Push fit 2 hinges into the drawerline door and door...
-
Page 13: Left Side
Assembly Instructions Step 15 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL Drill the handle holes in the doors Important If you have Important: Please follow ONLY drill the fitted the these instructions 2 holes in each carefully. - Page 14 Assembly Instructions Step 16 PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO CHOOSE WHICH 2 HOLES YOU WILL NEED TO DRILL Drill the handle holes in the doors Important Important: Please follow If you have ONLY drill the these instructions fitted the 2 holes in each carefully.
- Page 15 Assembly Instructions Step 17 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 16 Assembly Instructions Step 18 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 17 Assembly Instructions Step 19 Fit 4 brackets Fit 4 brackets underneath the upper fixed shelf using the positions shown in the diagram. Fit the top brackets 30mm down from the bottom edge of the fixed shelf. Fit the bottom brackets 25mm down from the 1st one.
-
Page 18: Rear View
Assembly Instructions Step 20 Fit the appliance fascia Fit the appliance fascia underneath the drawerline door flush to the sides using 4 screws through the brackets Rear view... - Page 19 Assembly Instructions Step 21 Install the oven Please refer to the instructions that were supplied with the oven. We recommend that you contact a registered installer. Step 22 Fit the plinth After cutting the plinth to the required length, offer Black Plinth Pack 608/2345 the plinth up to the unit...
- Page 20 Assembly Instructions Step 23 Fit other products to the unit To fit other products to this unit e.g. worktops etc., please follow the instructions packed with them. We recommend that you consult a qualified joiner or kitchen fitter. Note: Now the assembly has finished you can remove any protective film from the panels.
