CKU-3070
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PartyBar Mobile 250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ColorKey PartyBar Mobile 250

Summary of Contents for ColorKey PartyBar Mobile 250

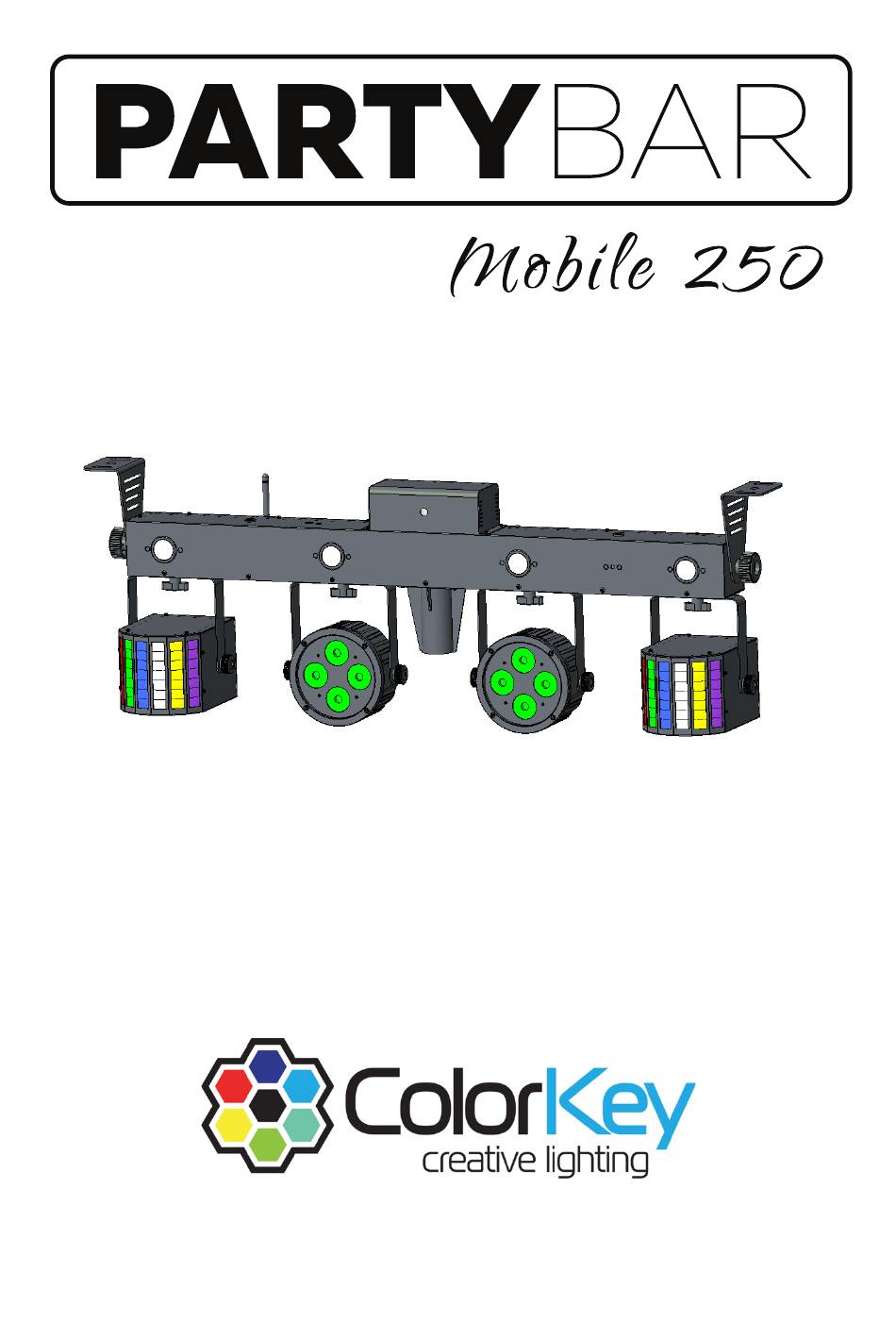

  • Page 1 CKU-3070 USER MANUAL...

  • Page 2: Table Of Contents

    WIRED DMX CONNECTIONS ......................... 18 WIRELESS DMX CONNECTIONS ......................19 IR REMOTE OVERVIEW ..........................21 WIRELESS FOOTSWITCH (SOLD SEPARATELY) ..................... 22 BATTERY LIFE AND SPECIFICATIONS ......................23 MAINTENANCE ............................24 TROUBLESHOOTING ............................ 24 TECHNICAL INFORMATION .......................... 25 PartyBar Mobile 250 User Manual – V1...

  • Page 3: Introduction

    Warning! To avoid electrical shock, be sure to disconnect power before any service or when moving or setting up the fixture. Service & Support Your ColorKey product includes a 2-year warranty. For technical support or to register your product, please visit https://www.colorkeyled.com/support/ You can also reach us by phone Monday thru Friday, 8:30am –5pm PST at (818) 578-4030.
  • Page 4 PartyBar Mobile 250 User Manual – V1...

  • Page 5: Stand Setup Instructions

    Failure to do so may result in the stand being tipped over accidentally, causing damage and bodily injury. PartyBar Mobile 250 User Manual – V1...

  • Page 6: Unpacking & Repacking

    • The retainer strap does not hang out of case when closing the zipper Mounting Orientation PartyBar Mobile 250 may be mounted in any position; however, make sure there is adequate ventilation around the product. Rigging • Before deciding on a location, make sure there is easy access to the product for maintenance and programming.

  • Page 7: Product Overview

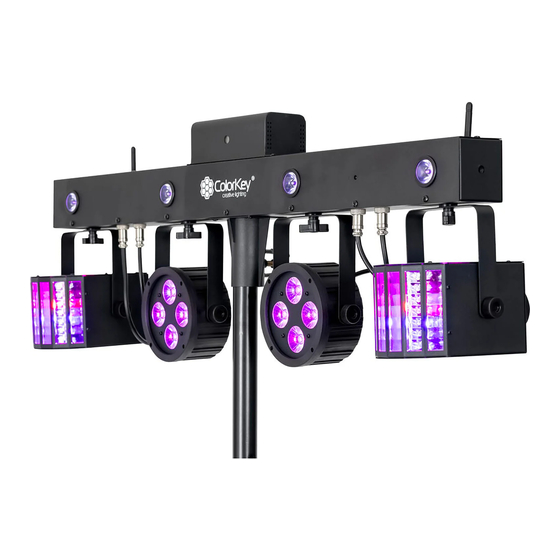

    1. Mounting Bracket 5. RGBW 4-in1 LED Par 2. RGBWAP LED Derby 6. Red & Green Laser 3. Wireless DMX Antenna 7. Wireless IR Receiver 4. White+UV 2-in-1 LED 8. Wireless Footswitch Antenna PartyBar Mobile 250 User Manual – V1...
  • Page 8 2. Safety Eye-bolt 8. Locking Power In/Out 3. Wireless DMX Antenna 9. DMX In/Out 4. Battery Life Indicator 10. Laser On/Off Lock 5. Menu 11. Power On/Off 6. Microphone 12. Wireless Footswitch Antenna PartyBar Mobile 250 User Manual – V1...

  • Page 9: Display Operation

    Menu: Access the menu/Scroll through menu options Scroll through menu selection or increase selected parameter Down: Scroll through menu selection or decrease a selected parameter Enter: Open/Select the current or selected menu option PartyBar Mobile 250 User Manual – V1...

  • Page 10: Menu Guide

    Saving Super energy saving mode at a significant S-EC reduction in brightness IR Remote InFr On/off Enable or disable the IR remote Enable or disable a Footswitch controller (sold Foot Foot on/oFF separately) PartyBar Mobile 250 User Manual – V1...

  • Page 11: Dmx Values

    Sound program3 130-139 Sound program4 140-145 Sound program5 150-159 Sound program6 160-169 Sound program7 170-179 Sound program8 180-255 Sound program9 0-255 Auto and Sound Program 1-9 speed ( From slow to fast ) PartyBar Mobile 250 User Manual – V1...
  • Page 12 Derby Strobe (Rate 0-100%) No function 10-19 20-29 Green 30-39 Blue 40-49 White CH6-7 50-59 Amber DERBY1-2 60-69 70-79 Red + Green 80-89 Red + Blue 90-99 Red + White 100-109 Red + Amber PartyBar Mobile 250 User Manual – V1...
  • Page 13 No function CH13 10-255 BAR UV Strobe (Rate 0-100%) No function Bar UV LED 10-19 BAR UV LED ON CH14 20-159 Chase cycles 160-255 Chase running (slow to fast ) CH15 No function PartyBar Mobile 250 User Manual – V1...
  • Page 14 White (0-100%) 0-255 Red (0-100%) 0-255 Green (0-100%) PAR2 0-255 Blue (0-100%) CH10 0-255 White (0-100%) No function CH11 10-255 Derby Strobe (Rate 0-100%) 0-255 Red (0-100%) CH12 DERBY1 0-255 Green (0-100%) CH13 PartyBar Mobile 250 User Manual – V1...
  • Page 15 20-159 Chase cycles 160-255 Chase running (slow to fast ) No function 10-19 Auto program 1 20-29 Auto program 2 CH31 30-39 Auto program 3 40-49 Auto program 4 50-59 Auto program 5 PartyBar Mobile 250 User Manual – V1...
  • Page 16 Sound program 5 150-159 Sound program 6 160-169 Sound program 7 170-179 Sound program 8 180-255 Sound program 9 0-255 Auto and Sound Program 1-9 speed ( From slow to fast ) CH32 PartyBar Mobile 250 User Manual – V1...

  • Page 17: Stand Alone Control Settings

    Stand Alone Control Settings To use your PartyBar Mobile 250 without a DMX Controller, use one of the various standalone modes below. Static Color Programs To run the PartyBar Mobile 250 in a Static color, do the following: 1. Press (Menu) 2.

  • Page 18: Wired Dmx Connections

    2. Use (Up) or (Down)) to select SLAV 3. Press (Enter) Using a DMX controller: 1. Power on your PartyBar Mobile 250 2. Connect to a DMX controller with a DMX cable plugged into the DMX (In) port of your PartyBar Mobile 250 unit.

  • Page 19: Wireless Dmx Connections

    Wireless DMX Connections Your PartyBar Mobile 250 unit can connect wirelessly to other units using 2.4G wireless DMX networks 1-7. It can act as the Master controller or be controlled as Slave, or by wireless DMX. To do so, follow the instructions below.
  • Page 20 To connect to a wireless DMX controller or other wireless network for control, do the following: 1. Turn on your wireless DMX transmitter 2. Turn on your PartyBar Mobile 250 3. Press (Menu) 4. Use (Up) or (Down) to select 2.4G 5.

  • Page 21: Ir Remote Overview

    1. Press Fade / Unit on the IRC. 2. Press (+) or (–) to cycle between the different FADE programs. Numbers 0-9 1. Press from number (0) to (9) to change the brightness intensity (0 is low to 9 high). PartyBar Mobile 250 User Manual – V1...

  • Page 22: Wireless Footswitch (Sold Separately)

    Enable the Footswitch Controller within the Menu: 1. Press (Menu) 2. Use (Up) or (Down) to select Foot 3. Press (Enter) 4. Use (Up) or (Down) to select On or Off 5. Press (Enter) PartyBar Mobile 250 User Manual – V1...

  • Page 23: Battery Life And Specifications

    Battery Life and Specifications PartyBar Mobile 250 features a rechargeable lithium-ion battery for wire free use. The battery can power the light for up to 6 hours from a full charge. The battery charges whenever the included power cable is connected and plugged into a power source.

  • Page 24: Maintenance

    Ensure your DMX controller is sending signal and you are using a proper and working DMX cable. No Laser Output Make sure the Laser Key is turned to ON No Wireless Please follow instructions for wireless connections Connections are Made PartyBar Mobile 250 User Manual – V1...

  • Page 25: Technical Information

    Please note: As we continue to work towards improving our products and your experience as a user, we recommend that you check our website periodically for updates to user manuals and specifications at www.ColorKeyLED.com or you may contact us directly at info@colorkeyled.com. PartyBar Mobile 250 User Manual – V1...
