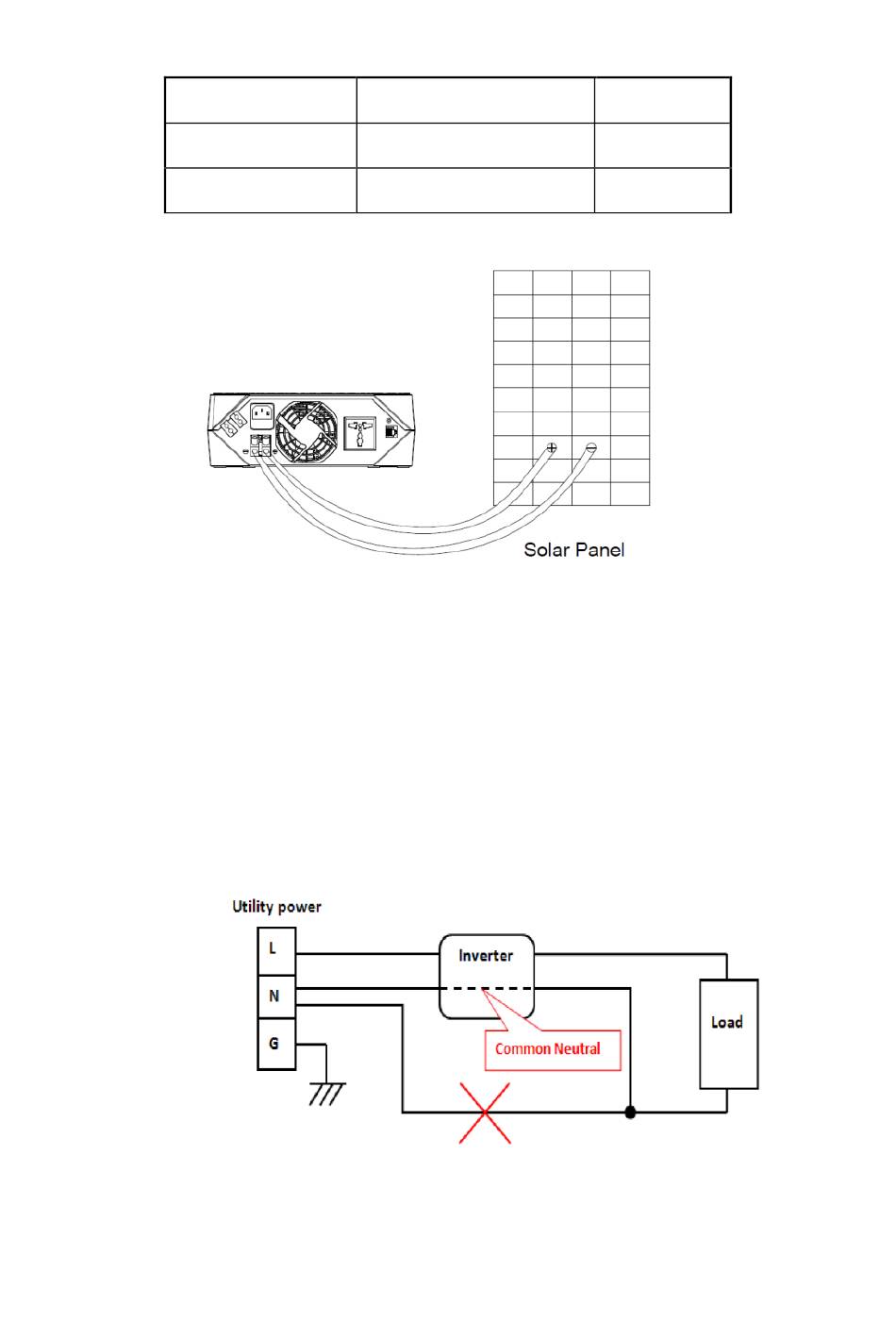

Connect the cables from PV module to the unit's PV input terminals. Please check the polarity before
connection.
For more information about PV Module Selection, please refer to the APPENDIX section.
Step 4
Connect the Product to Utility
Connect the product to a wall outlet. Charging the battery for at least 8 hours is recommended to
ensure that the battery's maximum charge capacity is achieved. To recharge the battery and maintain
optimal battery charge, simply leave the unit plugged into a wall outlet at all times. The battery can be
charged whether the unit is turned on or off.
DO NOT connect Neutral of the Power Distribution Box to (a) the OUTPUT Neutral of this product, or (b)
the INPUT Neutral of connected equipment. Otherwise, reversed polarity will damage the product and
connected equipment.
Step 5
Connect the Load
Connect the load to the unit's outlet. Make sure that the total loads of your appliances are below 80% of
the unit's rated capacity.
Model
PV Charging Current
Wire Gauge
50A
50A
9
10AWG
10AWG
