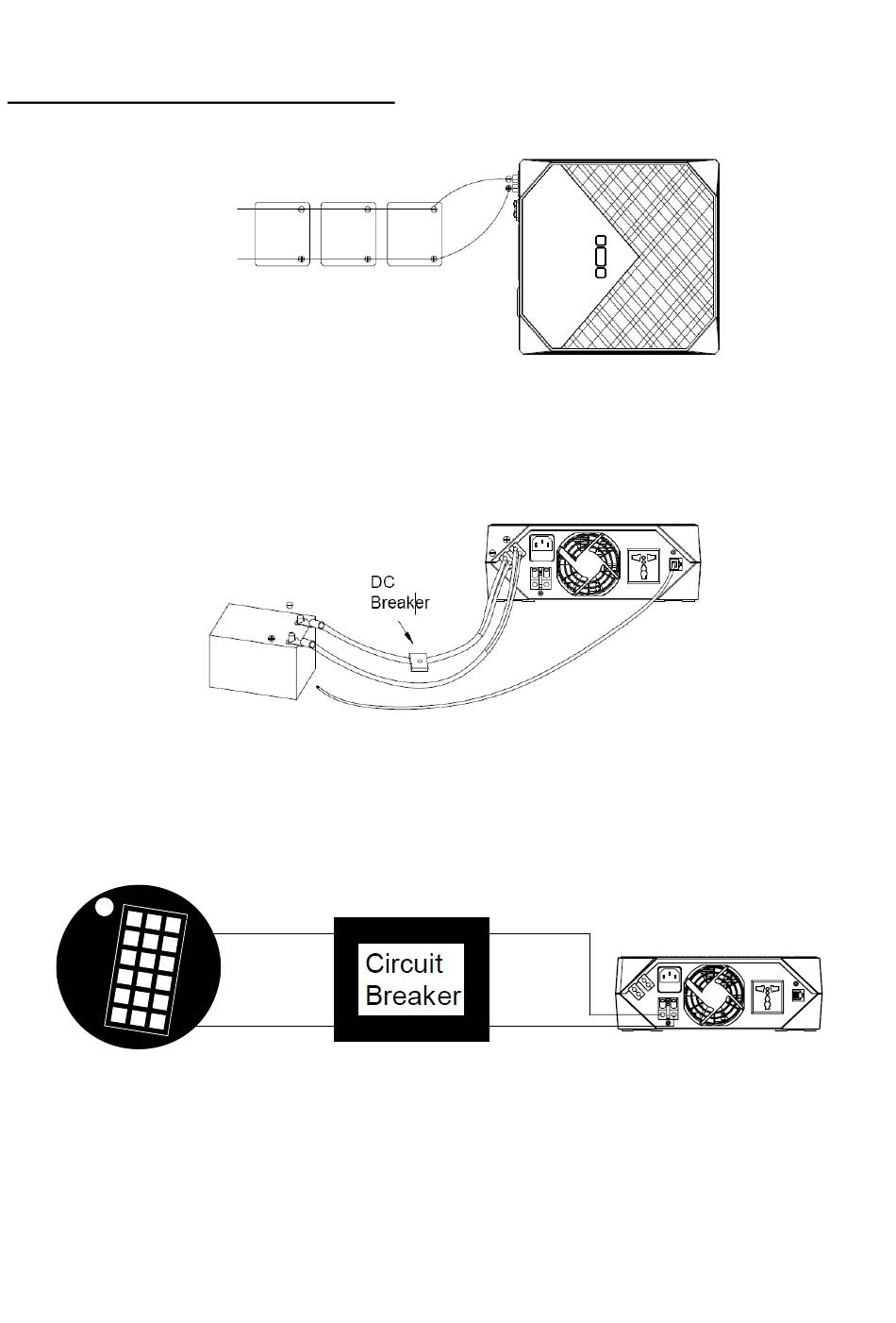

Multiple Batteries Connection – in Parallel
Connect multiple batteries in parallel can increase total battery capacity but still keep terminal voltage
as single battery voltage.
Step 2
Connect the Temperature Sensor
Connect the temperature sensor to the unit's RJ11 port. Put the sensor close to batteries so that the
unit can detect the ambient temperature and control the utility charger with compensation.
Step 3
Connect the Solar Panel
CAUTION! In order to switch off the power from PV for the need of maintenance and service, please
install a circuit breaker between the product and PV module.
CAUTION! To reduce risk of injury, use appropriate cables for PV connection. The wiring can only be
performed by trained personnel. Refer to below table for recommended cable size.
