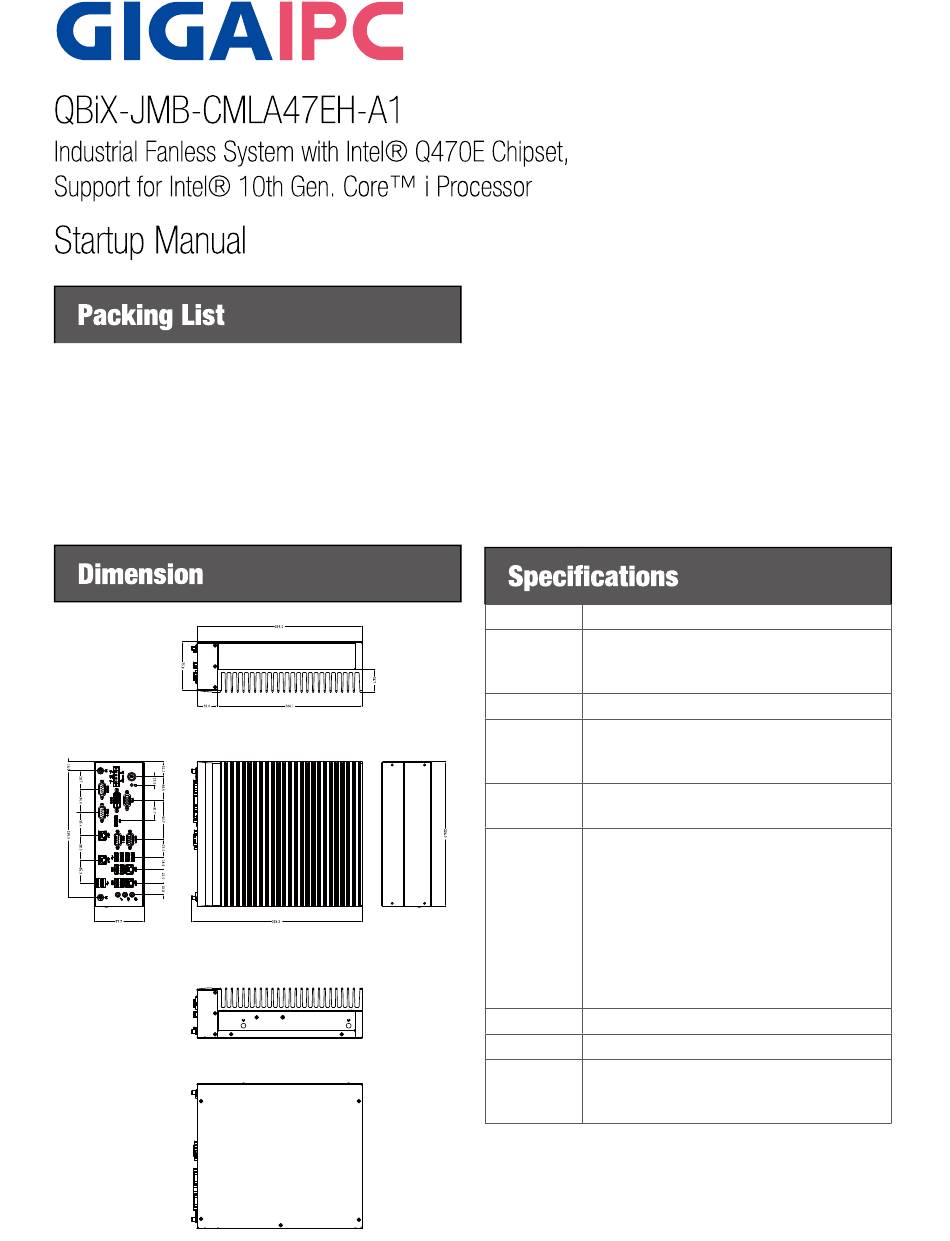

Before you begin installing your card, please make
sure that the following items have been shipped:
1. Screw HDD x 20 pcs (25984G-1C014-S00)
2. 4-pin Terminal Blocks Male Plug x 1 pcs
(25IO0-2ESDV0-D2R)
Caution: DANGER OF EXPLOSION
IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Dimension
System Size: 224W x 256.1D x 77.7H(mm)
CPU
Support for 10th Generation Intel® Core™
i7/i5/i3, Pentium® and Celeron® processors in
the LGA1200 package, TDP under 65W
Chipset
Intel® Q470E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets supporting up to
64 GB,
Dual channel DDR4 3200 MHz
Ethernet
1 x GbE LAN Port (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor - Intel® HD
support
Graphics support:
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x D-Sub port, supporting a maximum
resolution of 1920x1200 @60Hz
1 x DP port, supporting a maximum resolution
of 4096x2160 @60Hz
3 independent displays output
Audio
Realtek® Audio Codec
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion
1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
Slots
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for GIGAIPC QBiX-JMB-CMLA47EH-A1
Summary of Contents for GIGAIPC QBiX-JMB-CMLA47EH-A1
- Page 1 Caution: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE Before you begin installing your card, please make SAME OR EQUIVALENT TYPE RECOMMENDED sure that the following items have been shipped: BY THE MANUFACTURER, DISCARD USED BATTERIES 1.
- Page 2 Front I/O 1 x DC IN (4-pin Terminal Block +12V~48V) 1 x VGA / 1 x DVI-D /1 x DP 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x COM Ports (RS-232) 4 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 6 x USB 2.0 3 x Audio Jacks (Line in, Line out &...
- Page 3 MINI-PCIe Slot Supports SIM SIM Card Slot PCIE X8 Slot PCIE X16 Slot M2M Slot M2E Slot TPM Connector 4 x SATA 6 Gb/s COM4 2 x DDR4 SO-DIMM Connector sockets COM3 SATA Power Connector...
- Page 4 QBiX-JMB-CMLA47EH-A1 supports DDR4 SO-DIMM type memory module. 1. Loosen 7 screws and remove the bottom cover. 2. Loosen 4 screws to remove memory thermal cover. 3. Remove the release paper, and assemble memory. 4. Install 4 screws and memory thermal cover.
- Page 5 1. Loosen 7 screws and remove the bottom cover. 2. Loosen 4 screws to remove M2E thermal cover. 3. Install the module in the M2E (Support NGFF-2230 Wifi/BT) slot and secure with screws. 4. Remove the release paper on the thermal pad. 5.
- Page 6 1. Loosen 7 screws and remove the bottom cover 2. Loosen 4 screws to remove storage tray. 3. Secure storage with 4 x screws. 4. Assemble SATA cable/power cable and replace storage tray securely with 4 x screws. 5. Replace the bottom cover and secure with screws.
- Page 7 1. Loosen 7 screws, and then remove the bottom cover 2. Loosen 4 screws to remove the hard disk storage aluminum sheet 3. Loosen the 2 screws to remove the aluminum heat sink. 4. Assemble the M2M (NGFF-2280 SATA) storage hard drive, and remove the release paper which is on the aluminum heat sink.
- Page 8 QBiX-JMB-CMLA47EH-A1 supports one full size Mini-PCIe. 1. Loosen 7 screws, and then remove the bottom cover 2. Loosen 4 screws to remove the hard disk storage aluminum sheet 3. Assemble the Mini-PCIe expansion Card (Mini-PCIex1 + USB2.0) or 3G/4G SIM Card in SIM Slot.
- Page 9 17. RESTRICTED ACCESS AREA: The equipment should only be installed in a Restricted Access Area. 18. DISCLAIMER: This set of instructions is given according to IEC 704-1. GIGAIPC disclaims all responsibility for the accuracy of any statements contained here in.
-
Page 10: Setup Program
BIOS (Basic input/output system) provides hardware detailed information and boot- up options, which include firmware to control, set-up and test all hardware settings. Therefore, BIOS is the communication bridge between OS/application software and hardware. Once the system is power on, press the <DEL> key as soon as possible to access into BIOS Setup program. - Page 11 The main menu shows the basic system information. Use arrow keys to move among the items. Items Description Project Name Shows Project name information BIOS Version Shows the BIOS version of the system Build Date and Time Shows the Build Date and Time when the BIOS was created. LAN1 MAC Address Shows LAN1 MAC Address information LAN2 MAC Address...
- Page 12 The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu.
- Page 13 Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or having TPM Selection chip on MB)
- Page 14 Trusted Computing : Shows TPM information, and TPM module configuration setting. Item Description Enabled : Enables TPM feature (Default setting) Security Device Support Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM...
- Page 15 Item Description Super IO Chip Shows Super I/O chip model Press [Enter] to configure advanced items : Serial Port : Enabled : Enables allows you to configure the serial port settings Disabled : if Disabled, displays no configuration for the serial port Serial Port 1 Configuration Serial Port 2 Configuration Device settings :...
- Page 16 Item Description Enabled : Enables System FAN 1 Fail warning alert function System Fan 1 Disabled : Disables System FAN 1 Fail warning alert function (Default setting) Fail Warning (This setting will effect only if you add the extend kit on the system) Enabled : Enables System FAN 2 Fail warning alert function System Fan 2 Disabled : Disables System FAN 2 Fail warning alert function (Default setting)
- Page 17 Item Description Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec)
- Page 18 Item Description Disabled : Disables Software Guard Extensions (SGX) (Default seeting) Software Guard Enabled : Enables Software Guard Extensions (SGX) Extensions (SGX) Software Controlled : If this item is selected, SGX will be controlled by SGX application for UEFI boot OS Virtualization enhanced by Intel®...
- Page 19 Item Description SATA Mode Selection Set SATA controller to AHCI mode M.2 SATA Port shows M.2 SSD information Serial ATA Port 0 Serial ATA Port 1 shows 2.5" SATA HDD/SSD information Serial ATA Port 3 Serial ATA Port 4...
- Page 20 Item Description When system is power on, install LAN driver under UEFI mode Network Stack Disabled : Disables UEFI Network Stack (Default setting) Enabled : Enables UEFI Network Stack When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support...
- Page 23 Item Description Auto : When detects PCIe Graphic card, primary display will set to PCIe (Default setting) Primary Display IGFX : Force IGFX Graphic card as the primary display device PEG : Force PEG Graphic card as the primary display device Enables or disables the onboard graphics function Auto : Detects display device automatically (Default setting) Internal Graphics...
-
Page 24: Administrator Password
Item Description To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items... - Page 25 Item Description Secure Boot requires all the applications that are running during the booting process to be pre-signed with valid digital certificates Secure Boot Enabled : Enables Secure Boot function Disabled : Disables Secure Boot function (Default setting) Secure Boot Standard : Standard mode Mode Custom : Custom mode (Default setting)
- Page 26 Item Description Install factory default Secure Boot keys after the platform reset and while the system is in Setup mode Factory Key Provision Enabled : Enables Factory Key Provision (Default setting) Disabled : Disables Factory Key Provision To restore factory settings Restore Factory Keys Yes : Agree to restore factory settings No : Cancel to restore factory settings...
- Page 27 Item Description Enable/Disable full screen LOGO show on POST screen Full Screen Enabled : Enables Full screen LOGO Show on POST screen (Default setting) LOGO Show Disabled : Disables Full screen LOGO Show on POST screen Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority...
- Page 28 Item Description After configuring all the options that you wish to change, choose this option to save Save Changes all the changes and reboot the system and Reset Yes : Agree to save and reset No : Cancel to save and reset Choose this option to reboot the system without saving any changes Discard Changes Yes : Agree to discard changes and reset...
