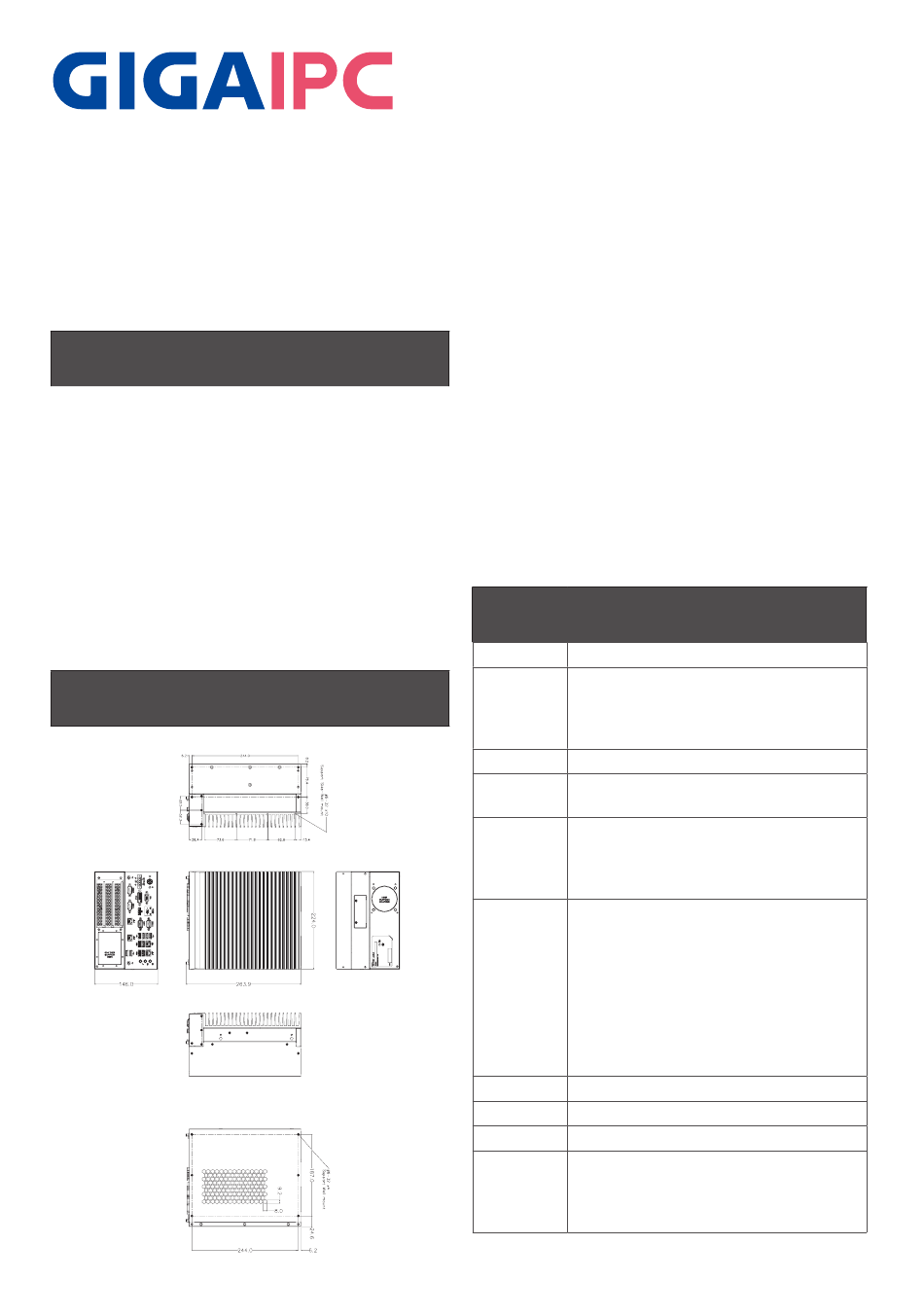

GIGAIPC QBiX-JMB-ADLA67EHD-B1 Startup Manual

Industrial fanless system with intel q670e chipset, support for intel 14th/13th/12th gen. core i processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
QBiX-JMB-ADLA67EHD-B1
Industrial Fanless System with Intel® Q670E Chipset,
Support for Intel® 14th/13th/12th Gen. Core™ i Processor
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
For Main system : 9BQJQ67EBMR-SI
1. HDD Screw M3x4L x 20pcs (25984G-1C014-S00)
*
Quantity of the HDD screws in the accessory kit may decreased based on
actual HDD assemble quantity.
2. 4-pin Terminal Blocks Male Plug x 1pc (25IO0-2ESDV0-D2R)
3. 2-pin Terminal Blocks Male Plug x 1pc (25IO0-EC3812-D2R)
For Expansion slot kit : 6BQJQ67EBPR-SI
1. Chassis screw #6-32x4L FLAT HEAD x 16pcs (25KS2-13004F-S0R)
Dimension
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Caution: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Specifications
Dimension
System Size: 224W x 257D x 146H(mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and
Celeron® processors in the LGA1700 package,
TDP under 65W
Chipset
Intel® Q670E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets supporting up to
64 GB, Dual channel DDR4 3200 MHz
Ethernet
1 x 2.5GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Intel® I219LM, Vpro
support)
2 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor -
support
depends on CPU:
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x D-Sub port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x DP port, supporting a maximum resolution
of 4096x2160 @60Hz
3 independent displays output
Audio
Realtek® ALC897
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s)
Raid
RAID 0/1/5/10
Expansion
1 x 2280 M.2 M-Key (PCIe Gen4x4)
Slots
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot
1 x PCIe slot -- Discrete riser card support
1
www.gigaipc.com
