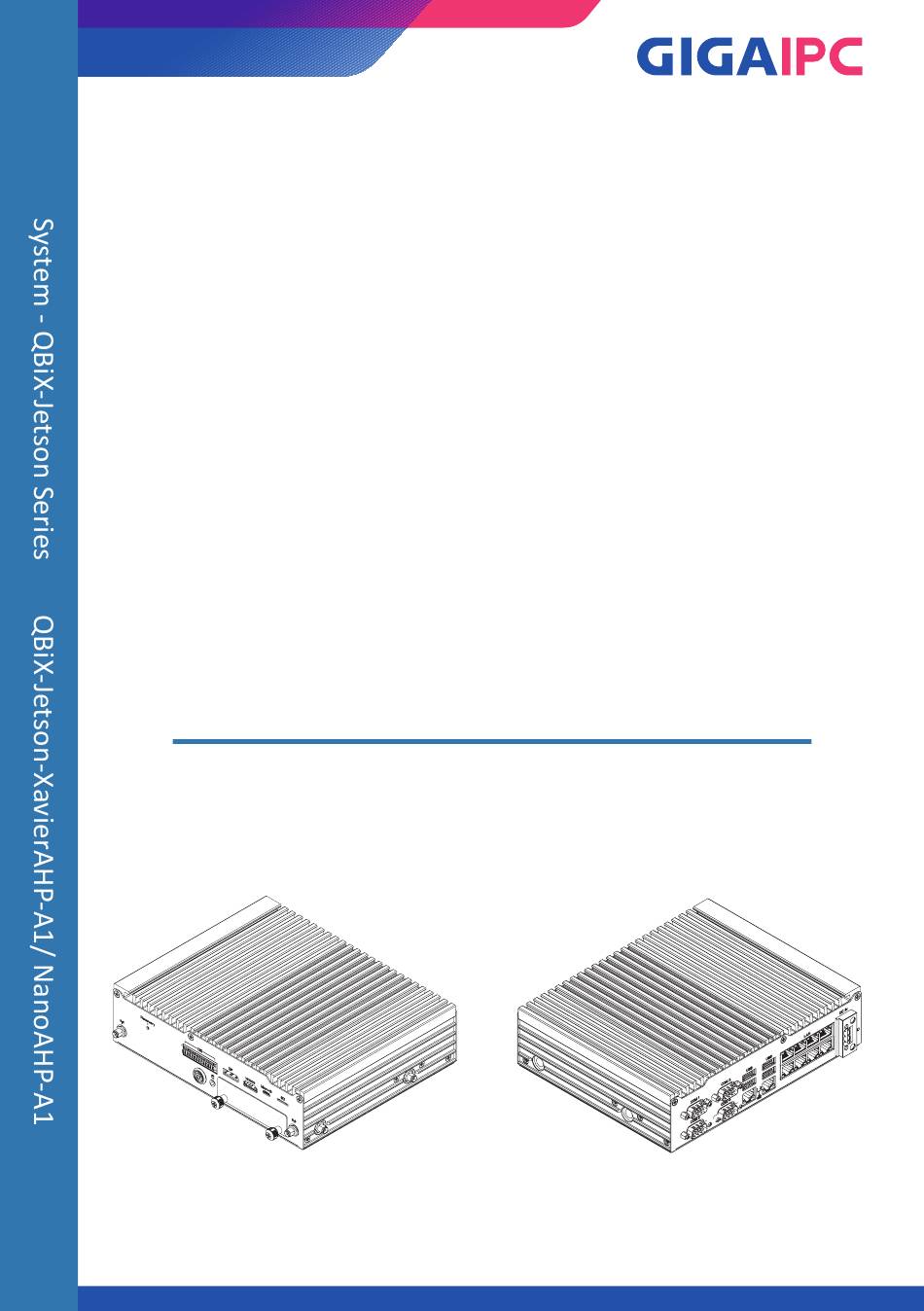

- Page 1 QBiX-Jetson-XavierAHP-A1 (QN-XAVNA-SI) QBiX-Jetson-NanoAHP-A1 (QN-NANOA-SI) QBiX-Jetson Industrial Embedded System Quick Start Guide www.gigaipc.com...
-
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. - Page 3 ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. • NVIDIA®, Jetson™ are trademarks of NVIDIA Corporation All other product names or trademarks are properties of their respective owners. www.gigaipc.com...
-
Page 4: Packing List
Item Quantity System kit 54V / 180W adapter Power cord (May vary based on local distribution) Screw for 2.5HDD/SSD, M3x4L If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... - Page 9 Packing List ................... 4 About this Document ..............5 Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 – QBiX-Jetson-XavierAHP-A1 (QN-XAVNA-SI) QBiX-Jetson-NanoAHP-A1 (QN-NANOA-SI) Industrial Embedded System Kit Dimension ..............16 Getting Familiar with Your Unit........17 2.5”...
- Page 10 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 188.80 188.80 169.80 169.80 59.20 59.20 55.20 55.20 www.gigaipc.com...
-
Page 13: Specifications
Specifications System QBiX-Jetson-XavierAHP-A1 QBiX-Jetson-NanoAHP-A1 (QN-XAVNA-SI) (QN-NANOA-SI) Dimension System Size : 210W x 169.8D x 55.2H (mm) 6-core NVIDIA® Carmel Arm® ARM® Cortex® A57 MPCore v8.2 64-bit CPU (Quad-Core) Processor with 6MB L2 cache + 4MB L3 cache NEON Technology 8GB 128-bit LPDDR4 DRAM... - Page 14 System QBiX-Jetson-XavierAHP-A1 QBiX-Jetson-NanoAHP-A1 (QN-XAVNA-SI) (QN-NANOA-SI) 4 x COM headers (RS232/422/485) 4 x USB3.0 ports Rear I/O 8 x GbE LAN ports with PoE 15W/port 2 x GbE LAN ports 1 x 3pin Terminal Block Side I/O 4 x External Antenna hole (option)
-
Page 15: Chapter 2 - Qbix-Jetson-Xavierahp-A1 (Qn-Xavna-Si) Qbix-Jetson-Nanoahp-A1 (Qn-Nanoa-Si) Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX-Jetson-XavierAHP-A1 (QN-XAVNA-SI) QBiX-Jetson-NanoAHP-A1 (QN-NANOA-SI) Industrial Embedded System Kit www.gigaipc.com... - Page 16 Dimension 188.80 188.80 169.80 169.80 59.20 59.20 55.20 55.20 www.gigaipc.com...
-
Page 17: Getting Familiar With Your Unit
2 x Antenna (optional) [Rear I/O Side] [Right Side] 4 x USB3.0 ports 2 x Antenna (optional) 4 x COM ports (RS232/422/485) 1 x 3pin Terminal Block 8 x GbE LAN ports with PoE 2 x GbE LAN ports www.gigaipc.com... -
Page 18: Hdd/Ssd Installation
Put the HDD tray back into the chassis, wireless module down. 鎖入固定於無線模組中央頂端的螺 and tighten up the screws. up the screws which was provided in the 絲。 accessory kit to secure the HDD. 向下安裝連結於無線模組左側頂端天線。 * please make sure the side with HDD brand logo is face-up. www.gigaipc.com... - Page 19 Xavier/Nano system. After installation is complete, follow the instructions to install BSP. 4. Back to QBiX-Jetson Xavier/Nano System, complete the informations which the system requires you to fill-in. 5. After filling in all the information, the system will reboot automatically, your re-program process is complete. www.gigaipc.com...
- Page 20 Caution: The GPIO 8 bits, SMBUS and Renote control (+5V) on the terminal does not meet limited power source (LPS) requirements. This port is limited to only 5V for the specific end products and are provided with a molded plastic Fire Enclosure. Rated minimum 94V-1 or Metal enclosure. www.gigaipc.com...
- Page 21 DB9 COM Pin Define DB9 COM port Pin No. Pin Define www.gigaipc.com...
-
Page 22: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...
