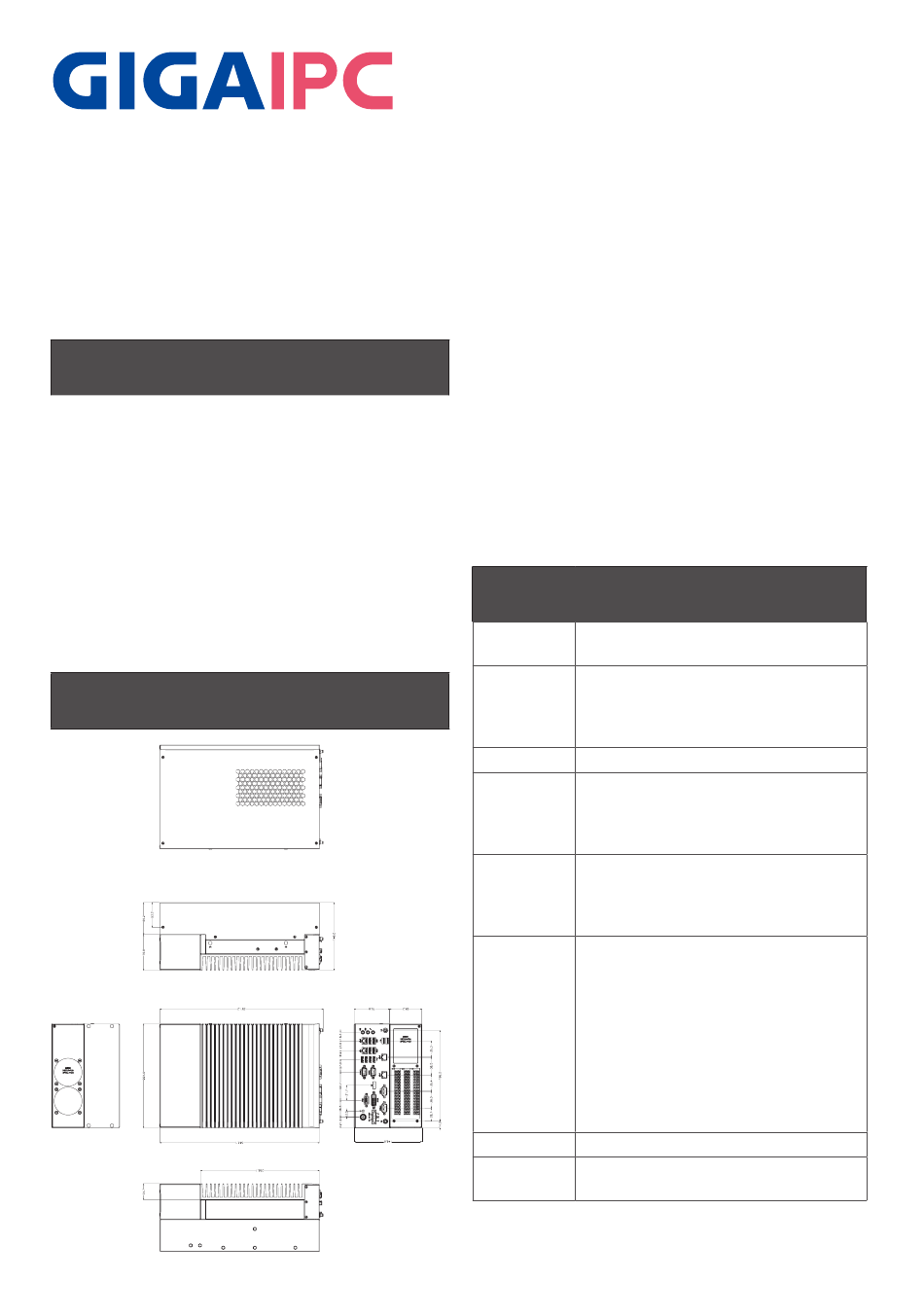

QBiX-JMB-ADLA67EHG-A1
Industrial System with Intel® Q670E Chipset, Support for Intel®
14th/13th/12th Gen. Core™ i Processor and Discrete GFX card support
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
For Main system : 9BQJQ67EAMR-SI
1. Terminal Blocks Male Plug x 1 (P/
N: 25IO0-2ESDV0-D2R)
2. Screw M3x4L x 16 (P/N : 25984G-1C014-S00)
*
Quantity of the HDD screws in the accessory kit may decreased based on
actual HDD assemble quantity.
For Expansion slot kit : 6BQJH310APR-SI
1. Screw #6-32x4L x11 (P/N: 25KS2-13004F-S0R)
Dimension
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Caution: DANGER OF EXPLOSION IF BATTERY IS
INCORRECTLY REPLACED. REPLACE ONLY WITH
THE SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED
BATTERIES ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Specifications
Dimension
System Size : 224W x 343D x 146H(mm) -
Discrete GFX max 250W support.(Optional)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and
Celeron® processors in the LGA1700
package, TDP under 65W
Chipset
Intel® Q670E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity
64 GB
Support Dual channel DDR4 3200 MHz
memory modules
Ethernet
1 x 2.5GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Intel® I219LM, Vpro
support)
2 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor -
Support
depends on CPU:
1 x DP port, supporting a maximum
resolution of 4096x2160 @60Hz
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum
resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s)-- support
RAID 0/1/5/10
1
