GIGAIPC QBiX-JMB-CFLA310HG-B1 Startup Manual

Industrial system with intel® h310 chipset, support for intel® 9th/8th gen. core™ i processor and discrete gfx card support

Advertisement

Quick Links

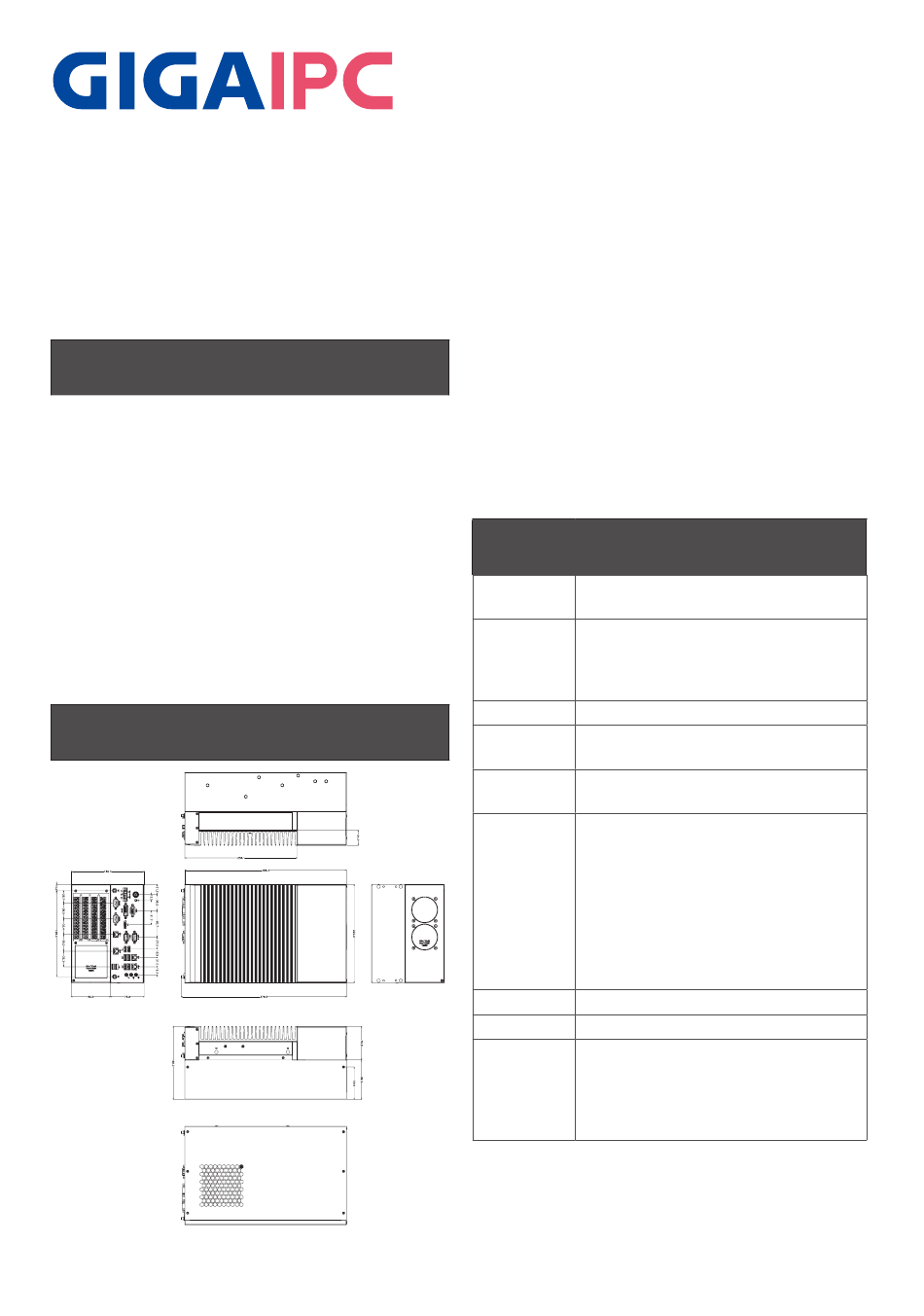

QBiX-JMB-CFLA310HG-B1
Industrial System with Intel® H310 Chipset, Support for Intel®
9th/8th Gen. Core™ i Processor and Discrete GFX card support
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
For Main system : 9BQJH310AMR-SI
1. Terminal Blocks Male Plug x 1 (P/
N: 25IO0-2ESDV0-D2R)
2. Screw M3x4L x 12 (P/N : 25984G-1C014-S00)
For Expansion slot kit : 6BQJH310BPR-SI
1. Power Cable #18 350mm x 2 (P/N: 25CRI-
35030I-S9R)
2. Screw #6-32x4L x16 (P/N: 25KS2-13004F-S0R)
Dimension
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Caution: DANGER OF EXPLOSION IF
BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT
TYPE RECOMMENDED BY THE MANUFACTURER,
DISCARD USED BATTERIES ACCORDING TO
THE MANUFACTURER'S INSTRUCTIONS.
Specifications
Dimension
System Size : 224W x 368D x 166.3H(mm) -
Discrete GFX max 250W support.(optional)
CPU
Support for 9th/8th Generation Intel®
Core™ i7/i5/i3, Pentium® and Celeron®
processors in the LGA1151 package,
TDP under 65W
Chipset
Intel® H310 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity
32 GB, Dual channel DDR4 2666/2400 MHz
Ethernet
1 x GbE LAN Ports (Intel® I219V)
3 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor - Intel® HD
Support
Graphics support:
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x D-Sub port, supporting a maximum
resolution of 1920x1200 @60Hz
1 x DP port, supporting a maximum
resolution of 4096x2160 @30Hz
2 independent displays output
Audio
Realtek® Audio Codec
Storage
3 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion
1 x 2280 M.2 M-Key (SATA 6Gb/s)
Slots
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe
x1 + USB2.0) -- support 3G/4G module
1 x PCIe slot -- Discrete riser card support
1
