GIGAIPC QBiX-JMB-ADLA67EHG-B1 Startup Manual

Industrial system with intel q670e chipset, support for intel 14th/13th/12th gen. core i processor and discrete gfx card support
Hide thumbs

Advertisement

Quick Links

Download this manual
QBiX-JMB-ADLA67EHG-B1
Industrial System with Intel® Q670E Chipset, Support for Intel®
14th/13th/12th Gen. Core™ i Processor and Discrete GFX card support
Startup Manual
Packing List
Before you begin installing your card, please make
sure that the following items have been shipped:
For Main system : 9BQJQ67EAMR-SI
1. Terminal Blocks Male Plug x 1 (P/
N: 25IO0-2ESDV0-D2R)
2. Screw M3x4L x 16 (P/N : 25984G-1C014-S00)
*
Quantity of the HDD screws in the accessory kit may decreased based on
actual HDD assemble quantity.
For Expansion slot kit : 6BQJH310BPR-SI
1. Screw #6-32x4L x16 (P/N: 25KS2-13004F-S0R)

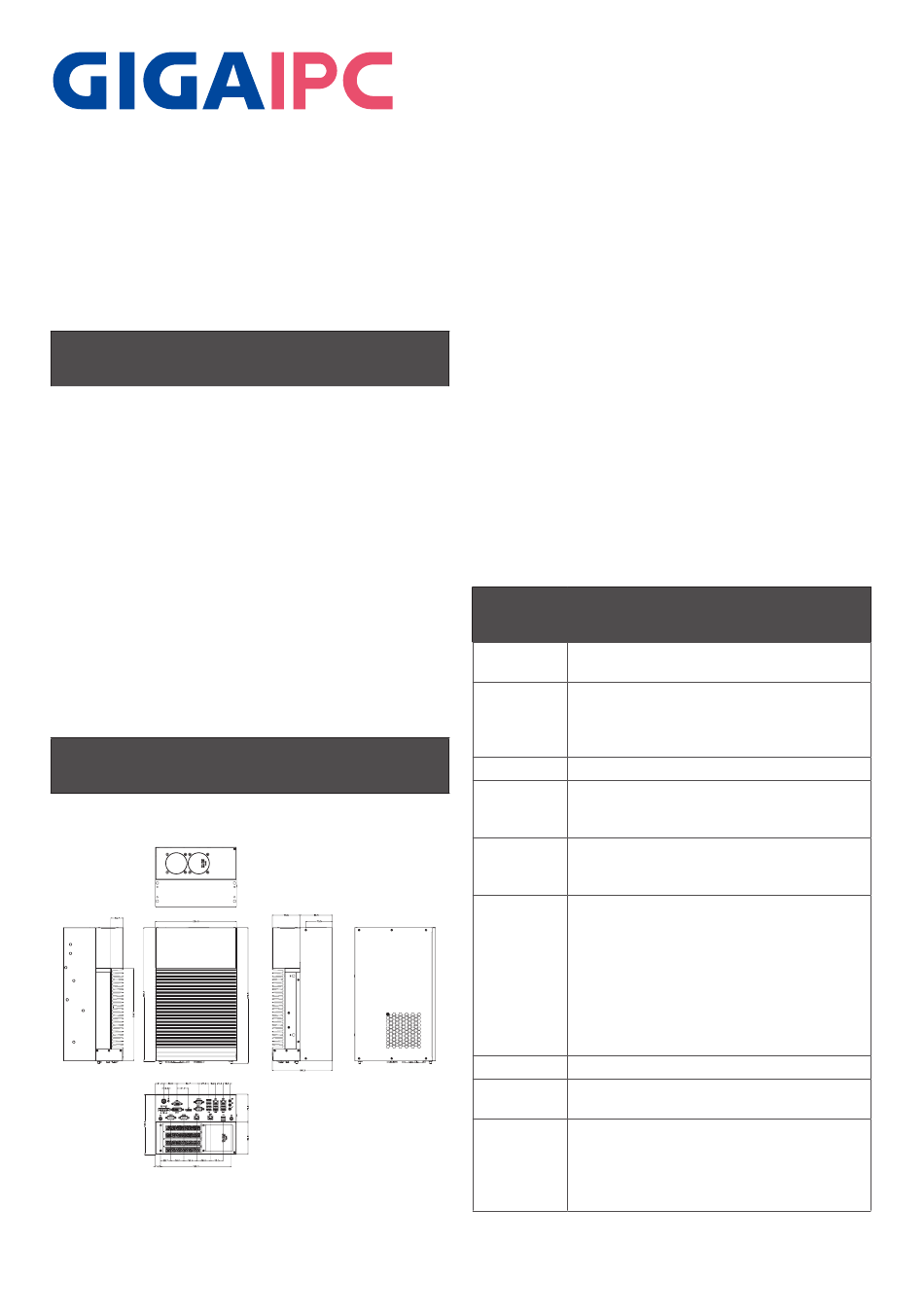

Dimension
GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Caution: DANGER OF EXPLOSION
IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER, DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER'S
INSTRUCTIONS.
Specifications
Dimension
System Size: 224W x 368D x 166.3H(mm) - Discrete
GFX support (Optional)
CPU
Support for 14th/13th/12th Generation Intel®
Core™ i9/i7/i5/i3, Pentium® and Celeron®
processors in the LGA1700 package,
TDP under 65W
Chipset
Intel® Q670E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz
memory modules
Ethernet
1 x 2.5GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Intel® I219LM, Vpro support)
2 x GbE LAN Ports (Intel® I211AT)
Graphic
Integrated Graphics Processor - depends on CPU:
support
1 x DP port, supporting a maximum
resolution of 4096x2160 @60Hz
1 x DVI-D port, supporting a maximum
resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum
resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s) -- support RAID
0/1/5/10
Expansion
1 x 2280 M.2 M-Key (PCIe Gen4x4)
Slots
1 x 2230 M.2 E-Key
1 x Full-size Mini PCIe with SIM slot (PCIe
x1 + USB2.0) -- support 3G/4G module
1 x PCIe slot -- Discrete riser card support
1
www.gigaipc.com
