Page 1: Qbix-Glkb4125-A1 Industrial Embedded System
QBiX-GLKB4125-A1 QBiX-GLKB4125-A1 Industrial Embedded System Quick Start Guide www.gigaipc.com... -
Page 2: Copyright Notice
While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. -
Page 3: Acknowledgement
Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com... -
Page 4: Packing List
POWER CORD 3Cx18AWG SVT US (25CP0-007001-Q0R) VESA Bracket, VESA_RS_BKT_KP ( 25HB1-TPL021-S8R) VESA screw, M4-10L x 4pcs, M3-3L x 2pcs, VESA-SCREW- ASM (25KSD-000001-S4R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com... -
Page 5: About This Document
(if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com... -
Page 6: Safety Precautions
Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com... - Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
-
Page 8: Fcc Statement
Il y a un risque d’explosion si la batterie est remplacée de façon incorrecte. Ne la remplacer qu’avec le même modèle ou équivalent recommandé par le constructeur. Recycler les batteries usées en accord avec les instructions du fabricant et les directives gouvernementales de recyclage. www.gigaipc.com... -
Page 9: Table Of Contents
Safety Precautions ............... 6 FCC Statement ................8 Chapter 1 - Product Specifications Specifications ............... 13 Chapter 2 – QBiX-GLKB4125-A1 Industrial Embedded System Dimension ..............16 Getting Familiar with Your Unit........17 A) Wireless Module : How to safely install the Module (Wireless Module inclusion may vary based on local distribution) .............. - Page 10 SATA_PWR_0 (SATA 6.0 Gb/s power connector) ..35 3.2.9 SATA0 (SATA 6.0 Gb/s connector) ......... 36 3.2.10 SODIMM (DDR4 SO-DIMM Slot) ........37 3.2.11 CPU FAN (CPU FAN connector) ........38 3.2.12 EDP (Embedded Display Port Connector) ..... 39 www.gigaipc.com...
-
Page 11: Chapter 1 - Product Specifications
Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com... - Page 12 www.gigaipc.com...
-
Page 13: Specifications
Specifications System QBiX-GLKB4125-A1 (QB-4125A-SI) Dimension System Size : 118W x 109.4D x 44.4H (mm) Intel® Celeron® Processor J4125, up to 2.70 GHz 4MB Cache Chipset 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB Memory Single channel memory architecture Support for DDR4 2400 MHz memory modules Ethernet 2 x GbE LAN port (Realtek®... - Page 14 System QBiX-GLKB4125-A1 (QB-4125A-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -40°C to 85°C temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr...
-
Page 15: Chapter 2 - Qbix-Glkb4125-A1 Industrial Embedded System Kit
Chapter 2 Chapter 2 – QBiX-GLKB4125-A1 Industrial Embedded System Kit www.gigaipc.com... -
Page 16: Dimension
Dimension www.gigaipc.com... -

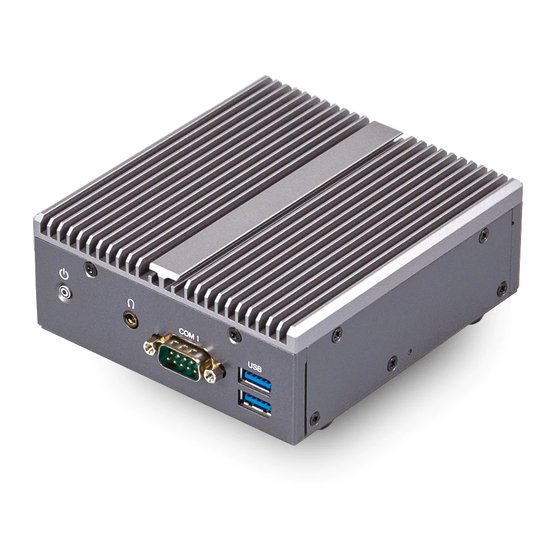

Page 17: Getting Familiar With Your Unit
1 x COM Port (RS-232) [Right Side] 1 x Headphone Jack 2 x USB3.0 [Rear Side] 2 x WiFi/BT Antennas (optional) [Right Side] 2 x HDMI Ports 2 x HDMI Ports 2 x RJ45 LAN ports 2 x USB 3.0 www.gigaipc.com... - Page 18 * Before Connecting the power, make sure to fasten the case securely. * 接上電源前 ，請確實將機殼完整鎖附 。 [Bottom PCB Side] Information 1 x M.2 slot (Supports NGFF-2280 SATA) 1 x M.2 slot (Support NGFF-2230 Wifi/BT) 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB www.gigaipc.com...
-
Page 19: A) Wireless Module : How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)
Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在，幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢，浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com... -
Page 20: B) Memory Installation: Ddr4 So-Dimm
B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com... -
Page 21: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)
Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com... -
Page 22: Vesa Bracket
VESA Bracket QBIX. VESA QBiX VESA VESA The QBiX can now be mounted by sliding the device into place. 將已安裝VESA支撐架螺絲的QBiX插入VESA支撐架 的滑軌孔，向下壓至定位點後即可固定。 www.gigaipc.com... -
Page 23: Support
Support ● For a list of tested memory, M.2, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com... -
Page 24: Safety And Regulatory Information
At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com... -
Page 25: Chapter 3 - Qbi-4125A Board Hardware Information
Chapter 3 Chapter 3 – QBi-4125A Board Hardware Information www.gigaipc.com... -
Page 26: Jumpers And Connectors
Jumpers and Connectors www.gigaipc.com... - Page 27 Code Description BATTERY Battery Cable Connector 80H Connector F_USB2_1 USB 2.0 Header F_USB2_2 USB 2.0 Header E-key, Supports NGFF-2230 (WiFi/BT) M-key, SATA 6.0 Gb/s PWR_BT Power Button Connector Speaker Out Speaker Out Connector www.gigaipc.com...
- Page 28 16 HP-out Header Phone-out 17 Power Button Power Button 18 DC_IN DC In Jack 19 USB3_1 Rear USB 3.0 Port x 2 20 HDMI_1 HDMI Port 21 HDMI_2 HDMI Port 22 LAN1 GbE LAN Port 23 LAN2 GbE LAN Port www.gigaipc.com...
-
Page 29: Battery (Battery Connector)
3.2.1 BATTERY (Battery connector) www.gigaipc.com... -
Page 30: 80H Connector)
3.2.2 80H (80H Connector) Pin 1 80H Connector Pin No. Definition Connector PN Vendor 87216-1206-06 ACES F_PANEL Pin No. Definition CK_LPC1_80H LFRAME# LAD0 RTL_RST_80H# LAD1 LAD3 LAD2 3.3V SERIRQ www.gigaipc.com... -
Page 31: F_Usb2_1, F_Usb2_2 (Usb 2.0 Header)
3.2.3 F_USB2_1, F_USB2_2 (USB 2.0 Header) Pin 1 USB 2.0 Header Connector PN Vendor A1250WV-S- JOINT-TECH 04PNLBT1T00L 50273-0047N-001 ACES Pin No. Definition D- (USBN) D+ (USBP) www.gigaipc.com... -
Page 32: M.2E (E-Key, Supports Ngff-2230 (Wifi/Bt) Slot)
3.2.4 M.2E (E-key, Supports NGFF-2230 (WiFi/BT) Slot) 3.2.5 M.2M (M-key, SATA 6.0 Gb/s Slot) www.gigaipc.com... -
Page 33: Spk_Out (Speaker Out Connector)
3.2.6 SPK_OUT (Speaker Out Connector) Pin 1 Speaker Out connector Pin No. Definition Out_R+ Out_R- Out_L+ Out_L- www.gigaipc.com... -
Page 34: Pwr_Bt (Power Button Connector)
3.2.7 PWR_BT (Power Button Connector) Pin 1 Power Button Connector Pin No. Definition Pin No. Definition PANSHW MDP_+ MDP_- SATA_LED +3.3V www.gigaipc.com... -
Page 35: Sata_Pwr_0 (Sata 6.0 Gb/S Power Connector)
3.2.8 SATA_PWR_0 (SATA 6.0 Gb/s power connector) Pin 1 SATA 6.0 Gb/s power connector Connector PN Vendor 85205-0570N ACES CI4405M1VRP-LF CVILUX Pin No. Definition +3.3V www.gigaipc.com... -
Page 36: Sata0 (Sata 6.0 Gb/S Connector)
3.2.9 SATA0 (SATA 6.0 Gb/s connector) Pin 1 SATA 6.0 Gb/s connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com... -
Page 37: Sodimm (Ddr4 So-Dimm Slot)
3.2.10 SODIMM (DDR4 SO-DIMM Slot) www.gigaipc.com... -
Page 38: Cpu Fan (Cpu Fan Connector)
3.2.11 CPU FAN (CPU FAN connector) Pin 1 CPU FAN connector Pin No. Definition TACH_PWRFAN1 www.gigaipc.com... -
Page 39: Edp (Embedded Display Port Connector)
+BL_PWR (10V or DCIN) +LCD_VCC (5V) +BL_PWR (10V or DCIN) +LCD_VCC (5V) Note: Please ensure pin 8 is connected Definition Definition to Ground. +LCD_VCC (5V) Connector PN Vendor EDP_LANN3 EDP_LANP3 20455-040E-12 I-PEX EDP_LANN2 EDP_LANP2 EDP_HPD_3V3 EDP_LANN1 EDP_LANP1 EDP_LANN0 EDP_BKLTEN_3V3 www.gigaipc.com...
