QBiX-JMB-CMLA47EHG-A1

Industrial System with Intel® Q470E Chipset, Support for Intel®

10th Gen. Core™ i Processor and Discrete GFX card support

Startup Manual

Packing List

Before you begin installing your card, please make

sure that the following items have been shipped:

For Main system : 9BQJQ47EAMR-SI

1. Terminal Blocks Male Plug x 1 (P/

N: 25IO0-2ESDV0-D2R)

2. Screw M3x4L x 16 (P/N : 25984G-1C014-S00)

Quantity of the HDD screws in the accessory kit may decreased based on

actual HDD assemble quantity.

For Expansion slot kit : 6BQJH310APR-SI

1. Screw #6-32x4L x11 (P/N: 25KS2-13004F-S0R)

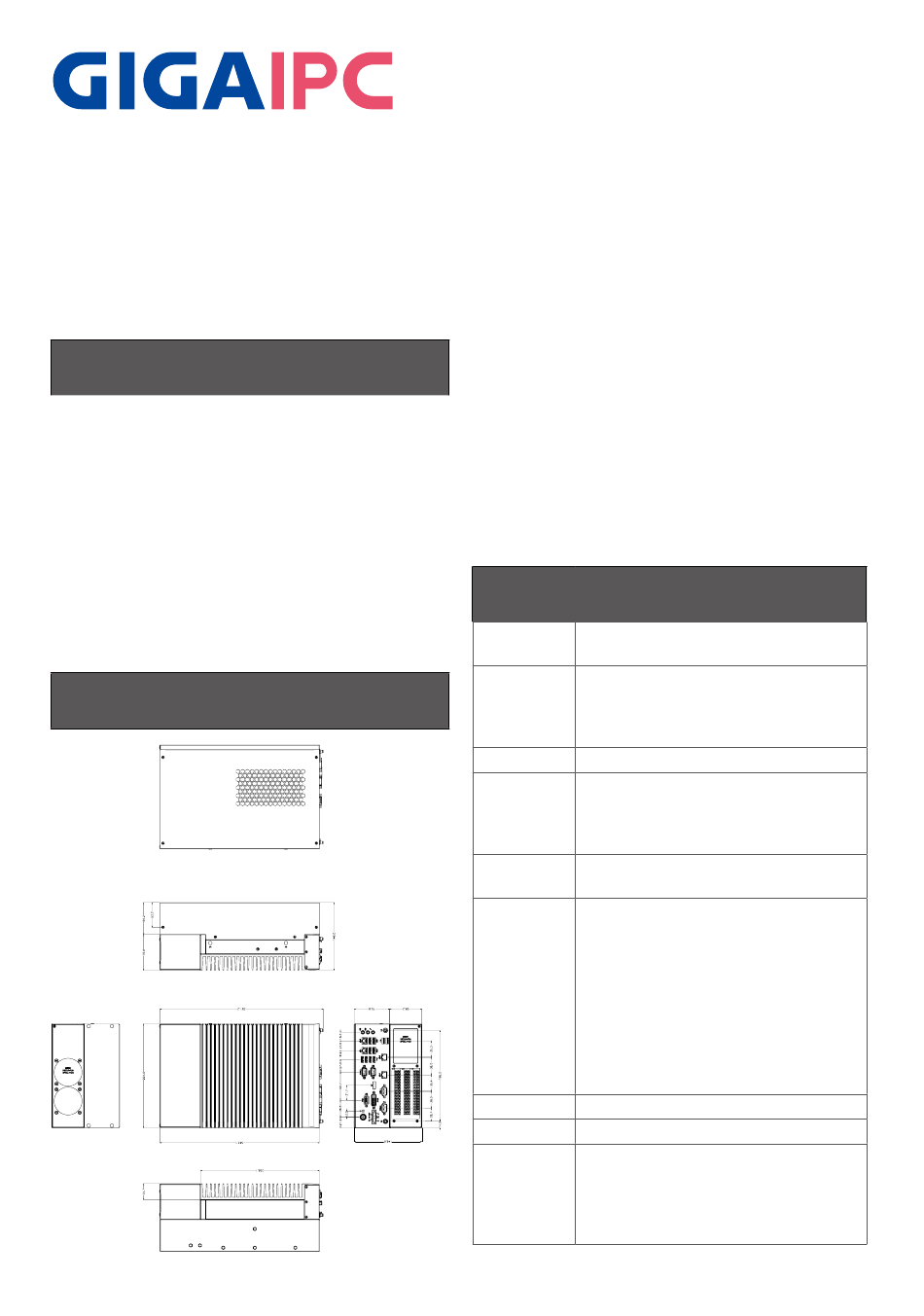

Dimension

GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.

Caution: DANGER OF EXPLOSION IF BATTERY IS

INCORRECTLY REPLACED. REPLACE ONLY WITH

THE SAME OR EQUIVALENT TYPE RECOMMENDED

BY THE MANUFACTURER, DISCARD USED

BATTERIES ACCORDING TO THE MANUFACTURER'S

INSTRUCTIONS.

Specifications

Dimension

System Size : 224W x 343D x 146H(mm) -

Discrete GFX max 250W support.(Optional)

CPU

Support for 10th Generation

Intel® Core™ i9/i7/i5/i3, Pentium® and

Celeron® processors in the LGA1200

package, TDP under 65W

Chipset

Intel® Q470E Express Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity

64 GB

Support Dual channel DDR4 2933/2666 MHz

memory modules

Ethernet

1 x GbE LAN Port (Intel® I219V)

3 x GbE LAN Ports (Intel® I211AT)

Graphic

Integrated Graphics Processor - Intel® HD

Support

Graphics support:

1 x DVI-D port, supporting a maximum

resolution of 1920x1080 @60Hz

1 x D-Sub port, supporting a maximum

resolution of 1920x1080 @60Hz

1 x DP port, supporting a maximum

resolution of 4096x2160 @60Hz

(3 independent display outputs)

Audio

Realtek® Audio Codec

Storage

4 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

Slots

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot (PCIe

x1 + USB2.0) -- support 3G/4G module

1 x PCIe slot -- Discrete riser card support

www.gigaipc.com

Table of Contents

Need help?

Do you have a question about the QBiX-JMB-CMLA47EHG-A1 and is the answer not in the manual?

Questions and answers

Summary of Contents for GIGAIPC QBiX-JMB-CMLA47EHG-A1

Page 1 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module 1 x PCIe slot -- Discrete riser card support www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 2 For Expansion slot kit : 6BQJH310APR-SI Carton size: 460 x 315 x 279 (mm) Packing Capacity: 1pc Including: Screw #6-32x4L x11 (P/N: 25KS2-13004F- S0R) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 3: Jumpers And Connectors
PCIE X8 Slot M2M Slot M2E Slot TPM Connector COM4 COM3 4 x SATA 6Gb/s Connector 2 x DDR4 SO-DIMM sockets SATA Power Connector www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 4 PCIE X4 Slot PCIEX8 PCIE X8 Slot PCIEX16 PCIE X16 Slot DC_OUT SYS_Fan 2 SYS_Fan 1 PCIE X4 Slot PCIE X16 Slot PCIE X8 Slot www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 5: System Dimensions
System Dimensions www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 6: Memory Installation
4. Install 4 screws and memory thermal cover. Note : Thermal pad and memory thermal cover must be fully mated and compacted. 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 7 4. Remove the release paper on the thermal pad. 5. Install 4 screws and M2E thermal cover. 6. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 8 3. Secure storage with 4 x screws. 4. Assemble SATA cable/power cable and replace storage tray securely with 4 x screws. 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 9 5. Install the 2 screws to securely replace the aluminum heat sink and heat sink paste. 6. Install 4 screws to firmly install storage tray. 7. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 10 3. Assemble the Mini-PCIe expansion Card (Mini-PCIex1 + USB2.0) or 3G/4G SIM Card in SIM Slot. 4. Install 4 screws to firmly install storage tray. 5. Replace the bottom cover and secure with screws. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 11 3. Loosen 2 screws on the system fan side of Expansion PCIE Slot Chassis to seperate into 2 parts as below A & B parts. (refer Figure 5 and 6) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 12 PCI-E extension chassis from top to bottom. Connect the power cord in the extension card to the power connector of the graphics card (refer Figure 10 to 15) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 13 8. Align the three grooves at the bottom of the case with the three iron posts in the fuselage (refer Figure 16 and 17), and place them from top to bottom. (refer Figure 18) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 14 9. Place the upper edge of the iron shell against the upper edge of the fuselage iron sheet, align the screw holes, and lock 8 screws (refer Figure 20 and 21) to complete the installation. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 15: Safety Instructions
17. RESTRICTED ACCESS AREA: The equipment should only be installed in a Restricted Access Area. 18. DISCLAIMER: This set of instructions is given according to IEC 704-1. GIGAIPC disclaims all responsibility for the accuracy of any statements contained here in.
Page 16 Decrease the numeric value or make changes – General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 17: The Main Menu
(Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 18 The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 19: Tpm Configuration
PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or having TPM Selection chip on MB) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 20 Disabled : Disables TPM feature None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 21: It8786 Super Io Configuration
Disabled : if Disabled, displays no configuration for the serial port Device settings : Display the specified Serial Port base I/O address and IRQ www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 22: Hardware Monitor
Shows current System fan 2 Speed for the extend kit of the system Speed (This numerical value will shows only if you add the extend kit on the system) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 23: S5 Rtc Wake Settings
Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 24: Cpu Configuration
Disabled : Disables CPU P states function (Default setting) To optimize CPU performance. Optimize Performance Enabled : Enables optimize performance function Disabled : Disables optimize performance function (Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 25: Sata And Rst Configuration
M.2 SSD information Serial ATA Port 0 Serial ATA Port 1 shows 2.5" SATA HDD/SSD information Serial ATA Port 3 Serial ATA Port 4 www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 26: Network Stack Configuration
Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 27: Nvme Configuration
2.8 NVMe Configuration www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 28 2.9 Offboard SATA Controller Configuration www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 29 Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 30 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 31 No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full authentication Management Press <Enter> to configure the advanced items www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 32 Key Exchange Keys Authorized Signatures These items allows you to enroll factory defaults or load Certificates from a file. Forbidden Signatures Authorized TimeStamps OsRecovery Signatures www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 33 Disabled : Disables Full screen LOGO Show on POST screen Boot Option #1 Shows the information of the storage that be installed in the system Boot Option #2 Choose/set the boot priority www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
Page 34: Save And Exit
Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com GIGAIPC reserves the right to modify or revise the content at anytime without prior notice.
