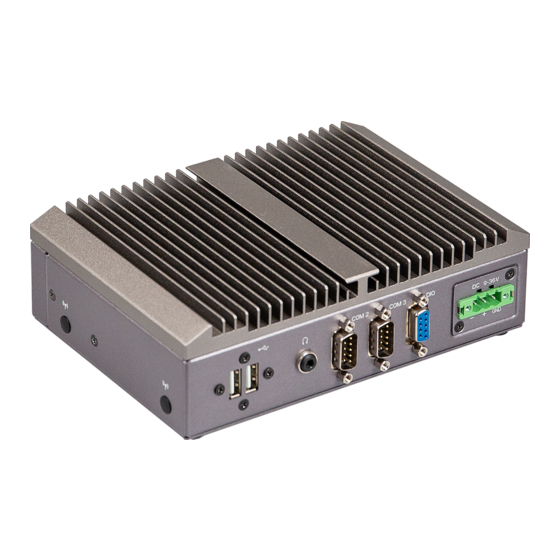

Qbix-pro industrial embedded system
Hide thumbs Also See for QBiX-Pro-TGLA1115G4EH-A1:
Table of Contents

Advertisement

Quick Links

QBiX-Pro-TGLA1115G4EH-A1
(QP-1115A-SI)

QBiX-Pro Industrial Embedded System

Quick Start Guide
1
www.gigaipc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QBiX-Pro-TGLA1115G4EH-A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GIGAIPC QBiX-Pro-TGLA1115G4EH-A1

  • Page 1: Qbix-Pro Industrial Embedded System

    QBiX-Pro-TGLA1115G4EH-A1 (QP-1115A-SI) QBiX-Pro Industrial Embedded System Quick Start Guide www.gigaipc.com...
  • Page 2: Copyright Notice

    While reasonable efforts have been made in the preparation of this document to assure its accuracy, GIGAIPC assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein.
  • Page 3: Acknowledgement

    Core, Atom are trademarks of Intel Corporation • • ITE is a trademark of Integrated Technology Express, Inc. IBM, PC/AT, PS/2, and VGA are trademarks of International Business • Machines Corporation. All other product names or trademarks are properties of their respective owners. www.gigaipc.com...
  • Page 4: Packing List

    System kit Terminal Blocks Male Plug (25IO0-5ESDV0-D2R) HDD screw, M3 x 8L (25KSG-130081-K1R) SATA Cable (25CRI-070000-S9R) Exsiccator (10g) Thermal pad for Memory (25ST3-200086-T5R) If any of these items are missing or damaged, please contact your distributor or sales representative immediately. www.gigaipc.com...
  • Page 5: About This Document

    (if any), its specifications, dimensions, jumper/ connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the GIGAIPC.com for the latest version of this document. www.gigaipc.com...
  • Page 6: Safety Precautions

    Make sure the device is installed near a power outlet and is easily accessible. 10. Keep this device away from humidity. 11. Place the device on a solid surface during installation to prevent falls 12. Do not cover the openings on the device to ensure optimal heat dissipation. www.gigaipc.com...
  • Page 7 18. D O N O T L E AV E T H I S D E V I C E I N A N U N C O N T R O L L E D ENVIRONMENT WITH TEMPERATURES BEYOND THE DEVICE’S PERMITTED STORAGE TEMPERATURES (SEE CHAPTER 1) TO PREVENT DAMAGE. www.gigaipc.com...
  • Page 8: Fcc Statement

    Skilled person have to pay special attention or take special protection. Only authorized by well trained professional person can access the restrict access location. (2) External metal parts are hot!! Before touching it, special attention or protection is necessary www.gigaipc.com...
  • Page 9: Table Of Contents

    FCC Statement ................8 High Temperature Warning ............8 Chapter 1 - Product Specifications Specifications ............... 14 Chapter 2 – QBiX-Pro-TGLA1115G4EH-A1 Industrial Embedded System Kit Dimension ..............17 Getting Familiar with Your Unit........18 A) Wireless Module: How to safely install the Module (Wireless Module inclusion may vary based on local distribution) ..............
  • Page 10 3.2.16 PCIEX1 (PCIe Gen3 x1 connector) ......... 44 3.2.17 ME (ME Enable jumper) ..........45 3.2.18 SPK_OUT (Speaker out connector) ....... 46 3.2.19 BKL_CN (Back light brightness control header) .... 47 3.2.20 LVDS (LVDS connector) ..........48 3.2.21 LSW (LVDS resolution jumper) ........49 www.gigaipc.com...
  • Page 11 4.3.7 Network Stack Configuration ........63 4.3.8 NVMe Configuration ............. 64 4.3.9 Offboard SATA Controller Configuration ...... 65 4.3.10 Digital IO Port Configuration ........66 Chipset ................67 Security ................. 68 Boot ................71 Save & Exit ..............72 www.gigaipc.com...
  • Page 12: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications www.gigaipc.com...
  • Page 13 52.7 56.7 134.65 www.gigaipc.com...
  • Page 14: Specifications

    Specifications System QBiX-Pro-TGLA1115G4EH-A1 (QP-1115A-SI) Dimension System Size : 178W x 125D x 52.7H (mm) Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.9 GHz Chipset 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Memory Support Dual channel DDR4 3200 MHz memory modules Ethernet 2 x GbE LAN Ports (Intel®...
  • Page 15 System QBiX-Pro-TGLA1115G4EH-A1 (QP-1115A-SI) Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Operation Non-operating temperature: -40°C to 85°C Temperature Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Operation: Vibration IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, with During SSD/M.2 2280...
  • Page 16: Chapter 2 - Qbix-Pro-Tgla1115G4Eh-A1

    Chapter 2 Chapter 2 – QBiX-Pro-TGLA1115G4EH-A1 Industrial Embedded System Kit www.gigaipc.com...
  • Page 17: Dimension

    Dimension 52.7 56.7 134.65 www.gigaipc.com...
  • Page 18: Getting Familiar With Your Unit

    1 x Power button with LED [Rear Side] [Right Side] 2 x USB 2.0 2 x Antenna (Optional) 1 x Headphone Jack 2 x COM Ports (COM2 & COM3, RS-232/422/485) 1 x 3-pin Terminal Block 1 x GPIO (8-bits) www.gigaipc.com...
  • Page 19 2 x DDR4 SO-DIMM sockets, DDR4 1 x M.2 slot (Support NGFF-2280 3200 MHz, Max. Capacity 64 GB SATA) 1 x Mini PCIe slot (PCIe x1 + 1 x M.2 slot (Support NGFF-2230 USB2.0) with SIM Slot WiFi/BT) support 2.5’’ Hard drive/SSD www.gigaipc.com...
  • Page 20: A) Wireless Module: How To Safely Install The Module (Wireless Module Inclusion May Vary Based On Local Distribution)

    Module (Wireless Module inclusion may vary based on local distribution) Carefully insert the wireless module into Lock the screw in the middle. the M.2 slot 鎖入固定於無線模組中央頂端的螺 小心地將無線模組安裝於M.2插槽中。 絲。 青山依舊在,幾度夕陽紅。慣看秋月春風。一 壺濁酒喜相逢,浪花淘盡英雄。是非成敗轉頭 Install the antenna on the left side of the connection wireless module down. 向下安裝連結於無線模組左側頂端天線。 www.gigaipc.com...
  • Page 21: B) Memory Installation: Ddr4 So-Dimm

    B) Memory Installation: DDR4 SO-DIMM SO-DIMM www.gigaipc.com...
  • Page 22: Antenna Installation (Antenna Inclusion May Vary Based On Local Distribution)

    Antenna Installation (Antenna inclusion may vary based on local distribution) www.gigaipc.com...
  • Page 23: Cable Pin-Define

    RS-485 DB9 Pin RS-232 Full Duplex Half Duplex TXD- TXD+ RXD+ – RXD- – – – – – – – – – 2. DBP DIO (25CR5-150606-S9R) DBP DIO Pin Pin Name GPIO-output_1 GPIO-input_1 GPIO-output_2 GPIO-input_2 GPIO-output_3 GPIO-input_3 GPIO-output_4 GPIO-input_4 www.gigaipc.com...
  • Page 24: Support

    Support ● For a list of tested memory, M.2, 2.5’’ SSD, wireless adapters and OS supported, go to: http://www.gigaipc.com ● To download the latest drivers and BIOS updates, go to: http://www. gigaipc.com ● For product support, go to: http://www.gigaipc.com www.gigaipc.com...
  • Page 25: Safety And Regulatory Information

    At the end of its serviceable life, this product should not be treated as household or general waste. It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment, or returned to the supplier for disposal. www.gigaipc.com...
  • Page 26: Chapter 3 - Hardware Information

    Chapter 3 Chapter 3 – Hardware Information www.gigaipc.com...
  • Page 27: Jumpers And Connectors

    Jumpers and Connectors www.gigaipc.com...
  • Page 28 General purpose input / ouput header FP_AUDIO Front Audio connector PCIEX1 PCIe Gen3 x1 connector ME Enable jumper SPK_OUT Speaker out connector BKL_CN Back light brightness control header LVDS LVDS connector LVDS resolution jumper M.2 Slot, SATA/PCIex2, NGFF 2280 www.gigaipc.com...
  • Page 29 Code Description SODIMM1 DDR4 SO-DIMM Slot SODIMM2 Trusted Platform Module connector USB31_1 USB 3.2 Gen2x1 connector USB31_2 HDMI_21 HDMI connector LAN1, LAN2 LAN connector COM1 Serial Port www.gigaipc.com...
  • Page 30: Sys_Fan (System Fan Connector)

    3.2.1 SYS_FAN (System fan connector) Pin 1 System fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com...
  • Page 31: Cpu_Fan (Cpu Fan Connector)

    3.2.2 CPU_FAN (CPU fan connector) Pin 1 CPU fan Connector Connector PN Vendor 85205-0470N ACES A1250WV-S-04PC JOINT-TECH Pin No. Definition Detect Speed control www.gigaipc.com...
  • Page 32: Fusb1, Fusb2 (Usb2.0 Headers)

    3.2.3 FUSB1, FUSB2 (USB2.0 headers) Pin 1 USB 2.0 Header Connector PN Vendor 210-92-05GB04 PINREX PH10R53BAZ009 HORNGTONG Pin No. Definition No Pin No Connect www.gigaipc.com...
  • Page 33: At_Cn (At/Atx Power Mode Select Jumper)

    AT_CN (AT/ATX power mode select jumper) Pin 1 AT/ATX power mode select jumper Connector PN Vendor 220-96-03GB01 PINREX HORNGTONG PH03N2 7BAN000 Pin No. Definition AT MODE TXD5 ATX MODE Jumper setting 1-2 Close : AT mode. 2-3 Close : ATX mode.(Default setting) www.gigaipc.com...
  • Page 34: Jcom1 (Com1 Ri# Pin Ri#/5V/12V Select)

    3.2.5 JCOM1 (COM1 RI# pin RI#/5V/12V Select) Pin 1 JCOM1 Jumper Select Connector PN Vendor 220-97-03GB01 PINREX 1-2 Close: 5V (Power COM) PH06N53BAZ000 HORNGTONG 3-4 Close: RI (Stand COM) (Default-Setting) 5-6 Close: 12V (Power COM) www.gigaipc.com...
  • Page 35: Sata0 (Sata 6Gb/S Connector)

    3.2.6 SATA0 (SATA 6Gb/s connector) SATA Connector Connector PN Vendor WATF-07DBLBA1UW WINWIN Pin No. Definition www.gigaipc.com...
  • Page 36: Satapw0 (Sata 6Gb/S Power Connector)

    3.2.7 SATAPW0 (SATA 6Gb/s power connector) Pin 1 Hard Disk Power Connector Connector PN Vendor 743-81-04TW00 PINREX WF04Q2-3BJQ000 HORNGTONG Pin No. Definition www.gigaipc.com...
  • Page 37: Com2, Com3, Com4

    3.2.8 COM2, COM3, COM4 (Serial port header, RS-232/422/485) Pin 1 Serial Port Cable Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition No Connect RI/ 5V/ 12V www.gigaipc.com...
  • Page 38: M2E (M.2 Slot, E-Key, Ngff2230, Wifi & Bluetooth Module)

    3.2.9 M2E (M.2 Slot, E-key, NGFF2230, WiFi & Bluetooth module) 3.2.10 MPCIE (Mini PCIe full size, support 3G/4G module) www.gigaipc.com...
  • Page 39: Battery (Battery Cable Connector)

    3.2.11 BATTERY (Battery cable Connector) Pin 1 Battery cable Connector Connector PN Vendor 85205-0270L ACES A1250WV-S-02PC JOINT-TECH Pin No. Definition 3.3V www.gigaipc.com...
  • Page 40: Dc_In (Dc In 1X4 Pin Power Connector)

    3.2.12 DC_IN (DC IN 1x4 pin power connector) Pin 1 DC IN connector Connector PN Vendor 753-81-04TW00 PINREX 1 2 34 Pin No. Definition Power Power www.gigaipc.com...
  • Page 41: Sys_Panel (Front Panel Header)

    3.2.13 SYS_PANEL (Front panel header) Pin 1 System Panel Header Connector PN Vendor 210-92-05G111 PINREX Pin No. Definition HDD LED+ Power LED+ HDD LED- Power LED- Power Button+ Reset Button Power Button- No Connect No Pin www.gigaipc.com...
  • Page 42: Gpio_Cnt (General Purpose Input/Output Header)

    3.2.14 GPIO_CNT (General Purpose input/output header) Pin 1 GPIO Connector Pin No. Definition SMB_DATA Connector PN Vendor Pin No. Definition 725-81-12TW00 PINREX GPO1 A2004WV-2X06P46 JOINT-TECH GPI1 GPO2 GPI2 GPO3 GPI3 GPO4 GPI4 SMB_CLK www.gigaipc.com...
  • Page 43: Fp_Audio (Front Audio Connector)

    3.2.15 FP_AUDIO (Front Audio connector) Pin 1 Front Audio Connector Connector PN Vendor 725-81-10TW00 PINREX A2004WV-2X05P46 JOINT-TECH Definition Pin Definition MIC_L MIC_JD FAUDIO_JD MIC_R No Connect Detect HPOUT_L HPOUT_R www.gigaipc.com...
  • Page 44: Pciex1 (Pcie Gen3 X1 Connector)

    3.2.16 PCIEX1 (PCIe Gen3 x1 connector) Pin 1 PCIe Gen3 x1 Connector Connector PN Vendor 115B20-100020-G4-R STARCONN Pin No. Definition Pin No. Definition SRC_DP SMDATA SRC_DN CLK_REQ# PLTRST# PEWAKE# SLP_S3# +V12A +V12A SMCLK +V12A www.gigaipc.com...
  • Page 45: Me (Me Enable Jumper)

    3.2.17 ME (ME Enable jumper) ME Enable Connector Connector PN Vendor 220-96-02GB01 PINREX ME Enable jumper Default Enable www.gigaipc.com...
  • Page 46: Spk_Out (Speaker Out Connector)

    3.2.18 SPK_OUT (Speaker out connector) Pin 1 Audio Amplifie Connector Connector PN Vendor 721-81-045W00 PINREX A2001WV-04P146 JOINT-TECH Pin No. Definition Speaker Out L+ Speaker Out L- Speaker Out R- Speaker Out R+ www.gigaipc.com...
  • Page 47: Bkl_Cn (Back Light Brightness Control Header)

    3.2.19 BKL_CN (Back light brightness control header) Pin 1 Back light brightness control Connector PN Vendor connector 721-81-05TW00 PINREX A2001WV-05P146 JOINT-TECH Pin No. Definition Back Light Enable www.gigaipc.com...
  • Page 48: Lvds (Lvds Connector)

    But below model no need to add. A0~A3 is odd channel 0~3, A4~A7 is even channel. Note: *The LVDS output connector of the unit is only intended to be connected to an UL/IEC/EN CLK2+ approval equipment with fire enclosure. CLK1+ CLK2- www.gigaipc.com...
  • Page 49: Lsw (Lvds Resolution Jumper)

    1024 x 600 1600 x 900 18bit 24bit 1280 x 800 1680 x 1050 18bit 24bit 1024 x 600 1600 x 1200 18bit 24bit 1280 x 1024 1920 x 1080 24bit 24bit 1366 x 768 1920 x 1200 18bit 24bit www.gigaipc.com...
  • Page 50: M2M (M.2 Slot, Sata/Pciex2, Ngff 2280)

    3.2.22 M2M (M.2 Slot, SATA/PCIeX2, NGFF 2280) 3.2.23 SODIMM1, SODIMM2 (DDR4 SO-DIMM Slot) www.gigaipc.com...
  • Page 51: Tpm (Trusted Platform Module Connector)

    3.2.24 TPM (Trusted Platform Module Connector) Pin 1 TPM Module Connector Connector PN Vendor 87216-1004-06 ACES Pin No. Definition SPI_CS#2 TPM_SO TPM_RST# TPM_SI TPM_CLK +V3.3A www.gigaipc.com...
  • Page 52: Chapter 4 - Bios

    Chapter 4 Chapter 4 – BIOS www.gigaipc.com...
  • Page 53: Introduction

    Execute command or enter the submenu Increase the numeric value or make + changes Decrease the numeric value or make – changes General Help Previous Values Load Optimized Defaults Settings Save changes & Exit the BIOS Setup program Exit the BIOS Setup program www.gigaipc.com...
  • Page 54: The Main Menu

    ME FW version Shows ME firmware version Set the Date for the system System Date (Format : Week - Month - Day - Year) Set the time for the system System Time (Format : Hour - Minute - Second) www.gigaipc.com...
  • Page 55: Advanced

    Advanced The Advanced menu is to configure the functions of hardware settings through submenu. Use arrow keys to move among the items, and press <Enter> to access into the related submenu. www.gigaipc.com...
  • Page 56: Tpm Configuration

    4.3.1 TPM Configuration Use TPM Configuration submenu to choose TPM interface. Item Description PTT : Internal TPM (Default setting) TPM Device dTPM : External TPM (When using External TPM module or Selection having TPM chip on MB) www.gigaipc.com...
  • Page 57 Item Description Security Device Enabled : Enables TPM feature (Default setting) support Disabled : Disables TPM feature Item Description None : No execution will be conducted (Default setting) Pending operation TPM clear : Set to clear data on TPM www.gigaipc.com...
  • Page 58: Sata And Rst Configuration

    Intel VMD feature helps you to control and manage NVMe PCIe SSD. / Enable VMD Enabled : Enables Intel VMD feature controller Disabled : Disables Intel VMD feature (Default setting) Serial ATA Port () shows 2.5" SATA HDD/SSD information shows M.2 SATA interface SSD information www.gigaipc.com...
  • Page 59: Cpu Configuration

    Enabled : Enables Intel(R) Speed Shift Technology Interrupt control (Default Interrupt control setting) Disabled : Disables Intel(R) Speed Shift Technology Interrupt control Enabled : Configure MSR 0xE2[15] , CFG Lock bit (Default setting) CFG Lock Disabled : Disables CFG Lock www.gigaipc.com...
  • Page 60: It8786 Super Io Configuration

    Disabled : if Disabled, displays no configuration for the serial port Serial Port 2 Configuration Device settings : Display the specified Serial Port base I/O address and IRQ COM Port Mode : Serial Port 3 Choose RS-232, RS-422, or RS-485 feature Configuration www.gigaipc.com...
  • Page 61: Hardware Monitor

    4.3.5 Hardware Monitor Item Description CPU Temperature Shows current CPU temperature System Shows current system temperature Temperature www.gigaipc.com...
  • Page 62: S5 Rtc Wake Settings

    Enable or Disable System to wake on a specific time. Wake system Disabled : Disables system to wake on a specific time (Default setting) from S5 Fixed Time : Enables system to wake on a specific time (Format : hr : min : sec) www.gigaipc.com...
  • Page 63: Network Stack Configuration

    When Network stack is enabled : Ipv4 PXE Support Disabled : Disables Ipv4 PXE Support Enabled : Enables Ipv4 PXE Support When Network stack is enabled : Ipv6 PXE Support Disabled : Disables Ipv6 PXE Support Enabled : Enables Ipv6 PXE Support www.gigaipc.com...
  • Page 64: Nvme Configuration

    4.3.8 NVMe Configuration NVMe Configuration shows information when your M.2 NVMe PCIe SSD is installed. www.gigaipc.com...
  • Page 65: Offboard Sata Controller Configuration

    4.3.9 Offboard SATA Controller Configuration www.gigaipc.com...
  • Page 66: Digital Io Port Configuration

    Enabled : If Digital IO Output value/level is modified in OS, they will be memorized and kept. SOGPO_1 (Pin 1) SOGPI_1 (Pin 2) SOGPO_2 (Pin 3) SOGPI_2 (Pin 4) Configure Digital IO Input or Output values for each pin. SOGPO_3 (Pin 5) SOGPI_3 (Pin 6) SOGPO_4 (Pin 7) SOGPI_4 (Pin 8) www.gigaipc.com...
  • Page 67: Chipset

    Enable/Disable XHCI Hand-off function XHCI Hand-off Enabled : Enables XHCI Hand-off function (Default setting) Disabled : Disables XHCI Hand-off function Enable/Disable BIOS Lock function BIOS Lock Enabled : Enables BIOS Lock function (Default setting) Disabled : Disabled BIOS Lock funtion www.gigaipc.com...
  • Page 68: Security

    To set up Administrator's password Administrator Minimum length : 3 Password Maximum length : 20 To set up User's password User Password Minimum length : 3 Maximum length : 20 Secure Boot Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 69 No : Cancel to restore factory settings Reset To Setup Yes : Agree to setup mode Mode No : Cancel to setup mode Enables expert users to modify Secure boot policy variables without full Key Management authentication Press <Enter> to configure the advanced items www.gigaipc.com...
  • Page 70 'UEFI CA' from database from DB No : Cancel to remove 'UEFI CA' from database Restore DB variables to fac tor y Restore DB defaults defaults Yes : Agree to restore DB defaults No : Cancel to restore DB defaults www.gigaipc.com...
  • Page 71: Boot

    Enabled : Enables Full screen LOGO Show on POST screen LOGO Show Disabled : Disables Full screen LOGO Show on POST screen (Default setting) Shows the information of the storage that be installed in the system Boot Option #1 Choose/set the boot priority www.gigaipc.com...
  • Page 72: Save & Exit

    Yes : Agree to load optimized defaults No : Cancel to load optimized defaults Enable/Disable Me FW image re-flash function Me FW Image Enabled : Enables Me FW image re-flash function Re-Flash Disabled : Disables Me FW image re-flash function (Default setting) www.gigaipc.com...

This manual is also suitable for:
