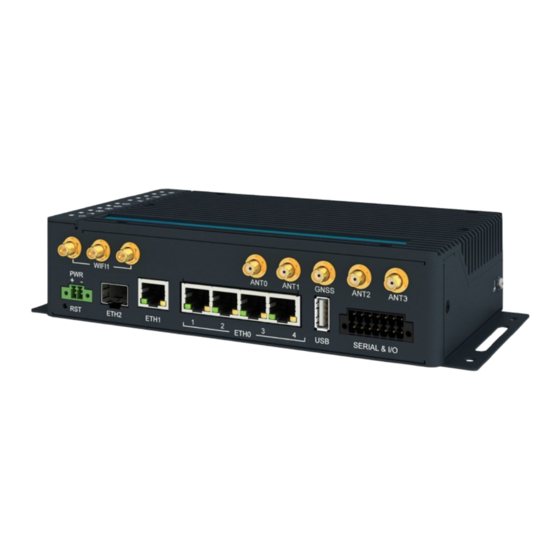

Advantech ICR-4453 Hardware Manual
5g industrial router
Hide thumbs
Also See for ICR-4453:
- User manual (52 pages) ,
- Start manual (8 pages) ,
- Start manual (8 pages)
Related Manuals for Advantech ICR-4453
Summary of Contents for Advantech ICR-4453
- Page 1 Hardware Manual 5G Industrial Router ICR-4453 Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN-0055-EN, revision from 7th March, 2024.
- Page 2 © 2024 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and it does not represent a commitment on the part of Advantech.
- Page 3 Used symbols Danger – Information regarding user safety or potential damage to the router. Attention – Problems that can arise in specific situations. Information – Useful tips or information of special interest.
-
Page 4: Table Of Contents
Contents 1. Product Overview 1.1 Product Introduction ......... 1.2 Usage Examples . - Page 5 Appendix B: Customer Support Appendix C: Regulatory & Safety Information Appendix D: Related Documents...
- Page 6 List of Figures Cellular Internet Access ........Backup for Internet Access .
- Page 7 List of Tables Router Hardware Overview: Front View ......Router Hardware Overview: Rear View .
-
Page 8: Product Overview
For maximal performance on the cellular network, the router utilizes 4x4 MIMO technology. An antenna for GNSS can be connected to the router. The ICR-4453 is positioned as a LTE Advanced Cat 12 router and a powerful edge computing gateway, tailored for the global market. -
Page 9: Usage Examples
• This example demonstrates a common scenario where the cellular router facilitates access from a local LAN to the Internet via the cellular network. • This functionality is not available on LAN routers lacking a cellular interface. Figure 1: Cellular Internet Access ICR-4453 Hardware Manual... -
Page 10: Backup For Internet Access
1.2 Usage Examples Backup for Internet Access • This example showcases how a cellular router’s Internet access can be backed up. • Backup options include PPPoE connections, Ethernet wired connections or WiFi. Figure 2: Backup for Internet Access ICR-4453 Hardware Manual... -
Page 11: Vpn Networks Interconnection
• This example highlights the establishment of a secure VPN tunnel for interconnecting the configured Advantech router with a router in a remote network, facilitated via the Internet. • The configured router connects to the Internet using the cellular network. -
Page 12: Serial Gateway
1.2 Usage Examples Serial Gateway • This example depicts a scenario where the configured Advantech router grants access to a PLC device interfaced serially with the router. • The PLC device, accessible over the entire Internet network, can be controlled from a remote local network, such as one running a SCADA system. -
Page 13: Hardware Overview
Table for module antenna map- ping and Chapter for GNSS parameters. WIFI1 RP-SMA Connectors for the WiFi antennas. See Chapter female more information and Chapter for WiFi parameters. Table 1: Router Hardware Overview: Front View ICR-4453 Hardware Manual... -
Page 14: Router Hardware Overview: Rear View
Chapter for cellular module parameters. MicroSD card slot; see Chapter 2.11. Wall clips — Wall mounting clips, included as standard accessories; see Chapter 1.9. Table 2: Router Hardware Overview: Rear View ICR-4453 Hardware Manual... -
Page 15: Order Codes
Initial version (revision number not printed on the labels). New design of the mainboard and PoE board; see PCN-2023-03 for details. Table 4: HW Revisions History This product has no E8 certification and has a limited operating temperature range of -40 C to +60 C. ICR-4453 Hardware Manual... -
Page 16: Package Contents
2-pin terminal block for power supply 1 pcs (deployed on the router) 14-pin terminal block for RS232, RS485, CAN BUS, and I/O 1 pcs (deployed on the router) Printed Quick Start Guide Leaflet 1 pcs Table 5: Contents of Package ICR-4453 Hardware Manual... -
Page 17: Product Dimensions
For the dimensions of the router see the figures below. Note that all sizes are measured in millimeters. Variant with Wall Mounting Clip Figure 7: Router Dimensions – Front, Top and Right view with Wall Mounting holder ICR-4453 Hardware Manual... -
Page 18: Router Dimensions - Front, Top And Right View With Din Holder
1. Product Overview 1.7 Product Dimensions Variant with DIN Rail Clip Figure 8: Router Dimensions – Front, Top and Right view with DIN holder ICR-4453 Hardware Manual... -
Page 19: Mounting Recommendations
• Data cables must not be bundled with mains voltage cables (230 V/50 Hz or 120 V/60 Hz). • Ensure sufficient space is left between each connector for cable handling. • For proper router functionality, use an earth-bonding distribution frame to ground the grounding screw (refer to Chapter 2.6). ICR-4453 Hardware Manual... -
Page 20: Wall Mounting
Each clip features two holes with a diameter of 5 millimeters for screw placement. For precise mounting dimensions, refer to Figure in Chapter 1.7. When attaching the wall mounting clip, tighten the screws with a maximum torque of 0.4 Nm. Figure 9: Rotated Wall Mounting Clips ICR-4453 Hardware Manual... -
Page 21: Din Rail Mounting
To remove the router from the DIN rail, lightly push down on the router to disengage the bottom part of the DIN rail clip from the rail. Then, pivot the bottom part of the router away from the DIN rail, as demonstrated in Figure 11. Figure 11: Removing Router from the DIN Rail ICR-4453 Hardware Manual... -
Page 22: Product Label
1. Product Overview 1.11 Product Label 1.11 Product Label The figure below shows an example of the product labels with all the information printed on them. Figure 12: Product Label ICR-4453 Hardware Manual... -
Page 23: Hardware Functionality
• To insert a SIM card, push the card into the slot until it clicks into place. • Put the cover back and secure it with the two screws. Figure 13: SIM Cards Insertion ICR-4453 Hardware Manual... -
Page 24: Antennas Interfaces
All four ETH0 ports can be used for PoE PSE if the router is equipped with this feature. For more information about the PoE, see Chapter 2.4; for technical parameters, see Chapter 4.9. The isolation barrier of the Ethernet ports against the ground is 1500 V. ICR-4453 Hardware Manual... -
Page 25: Power Over Ethernet (Poe) Pse
To monitor the current PoE state, navigate to the General status page in the GUI. When PoE is enabled and an external device is being powered, you can access information about current, voltage, power, and power class here. ICR-4453 Hardware Manual... -
Page 26: Poe Pse Parameters
Table 7: PoE PSE Parameters PoE Power Budget Examples Example #1 This example is for the Advantech RPS-ICR4-WR2-PSE power supply, which can supply a power of 65 W. We will use 15 W as the maximum router power consumption; see Chapter efchap:BasicParams. -
Page 27: Sfp Cage
Figure 16: SFP Module Installation See Table for a list of successfully tested SFP modules on the product. Model Manufacturer SFP-GSM-20K Advantech ML-S+31Dout-10 MaxLink S-3553LC20D MikroTik SFP-PLUS-LR10-HPE Hewlett Packard SFP-TXCIS TXM431-LR(UN) TP-Link UF-RJ45-1G Ubiquiti Table 8: Tested SFP Modules ICR-4453 Hardware Manual... -
Page 28: Power Supply
All metal parts, including the box, are interconnected with the negative pole of the power supply (common pole). If recommended for the installation environment, protect the router by properly grounding it using the grounding screw, as depicted in Figure 18. The maximum tightening torque for the grounding screw is 1 Nm. ICR-4453 Hardware Manual... - Page 29 2. Hardware Functionality 2.6 Power Supply Figure 18: Position of the Grounding Screw ICR-4453 Hardware Manual...
-
Page 30: Low Power Mode
BIN1 input or after a predefined period of time. To put the router into LPM mode, you can use the lpm command; for more information, refer to the Commands and Scripts application note. ICR-4453 Hardware Manual... -
Page 31: I/O Port Interfaces
Signal mark Description BIN0 The first digital input BOUT0 The first digital output BIN1 The second digital input BOUT1 The second digital output Table 10: Connection of I/O Ports Figure 20: Functional Scheme of the Digital Interface ICR-4453 Hardware Manual... -
Page 32: Serial Interfaces
Transmit Data Table 11: Connection of RS232 Signal mark Description CAN_H CAN High CAN_L CAN Low Table 12: Connection of CAN Bus Signal mark Description B (+) In/Out A (-) In/Out Ground Table 13: Connection of RS485 ICR-4453 Hardware Manual... -
Page 33: Usb Port
Positive pole of 5 V DC supply voltage, 0.5 A USB data - USB data signal – negative pole Input/Output USB data + USB data signal – positive pole Input/Output Negative pole of DC supply voltage Table 14: USB Connector Pinout ICR-4453 Hardware Manual... -
Page 34: Microsd Card Reader
• To mount the card to the mnt directory, use the mount command: mount /dev/mmcblk0p1 /mnt For more information about the commands for creating, mounting, checking, and unmounting a file system on a microSD card, refer to the application note for the Ext4 Filesystem Utilities router app. ICR-4453 Hardware Manual... -
Page 35: Led Status Indication
Selected 1 Gbps bit rate. ETH1 Green Selected 100/10 Mbps bit rate. ETH0 Yellow The network cable is connected. ETH1 Yellow Brief off blinks Data transmission. Yellow The network cable is not connected. Table 16: LED Status Indication ICR-4453 Hardware Manual... -
Page 36: Reset Functions
RST button for at least 10 seconds. This action will reset the router’s configuration to the default settings. Use a narrow screwdriver or any small tool to press the RST button. Figure 24: Resetting the Router ICR-4453 Hardware Manual... -
Page 37: First Use
All routers have the WebAccess/DMP client pre-installed by default. The activated client periodically uploads router identifiers and configuration to the WebAccess/DMP server. See the configuration manual [1], chapter Basic Information WebAccess/DMP Configuration, for more information. If the router’s label lacks a unique password, use the password root . ICR-4453 Hardware Manual... -
Page 38: Technical Parameters
Models having ICR-4453W1x order codes have an operating temperature range of -40 C to +60 C. Maximal power consumption for model with the PoE PSE (for maximal power load on all ETH0 ports). For device equipped with the PoE PSE. ICR-4453 Hardware Manual... -
Page 39: Standards And Regulations
EN 60068-2-2, EN 60068-2-1, EN 60068-2-14, EN 60068-2-30 Transportation E-Mark (E8), homologation number: 10R - 06 11459 National CE, UKCA compliant Environmental REACH, RoHS3 and WEEE compliant Table 18: Standards and Regulations Models having ICR-4453W1x order codes have no E8 certification. ICR-4453 Hardware Manual... -
Page 40: Type Tests And Environmental Conditions
Vibration, broad- EN 60068-2-64 Spectrum A.3 cat 1, breakpoints A.6 cat 1 band random Shock EN 60068-2-27 50 m/s , 11 ms, half sine, 10 in each dir. Table 19: Type Tests and Environmental Conditions ICR-4453 Hardware Manual... -
Page 41: Parameters Of Cellular Module
Uplink 2 x 2 MIMO is only supported in 5G SA mode. 5G NR FDD bands only support 15 kHz SCS, and NR TDD bands only support 30 kHz SCS. Supported bandwidth in the NSA and SA modes may differ for each frequency band. ICR-4453 Hardware Manual... -
Page 42: Technical Parameters Of Cellular Module
• DC-HSDPA: max. 42 Mbps (DL) • HSUPA: max. 5.76 Mbps (DL) • WCDMA: 384 kbps (DL) / 384 kbps (UL) • Max. output power: 24 dBm +1/-3 dB (Class 3) Table 20: Technical Parameters of Cellular Module ICR-4453 Hardware Manual... -
Page 43: Module Antenna Mapping
UHB_TRX UHB_TRX ANT3 MHB_DRX MHB_DRX, MHB_DRX, DRX0 1452-2690 3300-4200 4400-6000 UHB_DRX UHB_DRX LAA_DRX Table 21: Cellular Module Antenna Mapping UHB frequency range: 3400-3800 MHz. NR TRX1 = TX MIMO + PRX MIMO; NR DRX1 = DRX MIMO ICR-4453 Hardware Manual... -
Page 44: Parameters Of Gnss
Cold Start: -142 dBm (autonomous) Reacquisition: -154 dBm Tracking: -154 dBm TTFF Cold start: 36.26 s (autonomous) Warm start: 34.05 s Hot start: 1.22 s Accuracy (CEP-50) 1.9 m (at open sky) (autonomous) Table 22: Technical Parameters of GNSS ICR-4453 Hardware Manual... -
Page 45: Parameters Of Wifi
Security – Encryption WEP, TKIP, AES Security – EAP Types EAP–FAST, EAP–TLS, EAP–TTLS, PEAP–GTC, PEAP–MSCHAPv2, PEAP–TLS, LEAP TX Power (per chain) Max. 21 dBm @ 2.4 GHz Max. 18 dBm @ 5 GHz Table 23: Technical Parameters of WiFi ICR-4453 Hardware Manual... -
Page 46: Parameters Of I/O Ports
Flow Control none, hardware. Table 25: Parameters of Serial Interfaces The digital status returned by the io get shell command. The digital status returned by the status ports shell command and displayed on the General Status page. ICR-4453 Hardware Manual... -
Page 47: Parameters Of Poe
• The remaining space is reserved for the system. RAM size 1 024 MB Watchdog HW watchdog Battery backup RTC Trusted Platform Module (TPM) 2.0 eSIM Embedded SIM module Table 26: System Configuration Not assembled by default, for dedicated customer orders only. ICR-4453 Hardware Manual... -
Page 48: Appendix A: Troubleshooting
Also enable "Send all remaining incoming packets to default server" feature and fill in the IP address of your Web server. On the Web server, the default gateway has to be the IP address of the router. DynDNS doesn’t work. • With private APN this will not work. ICR-4453 Hardware Manual... - Page 49 I switched the router to offline mode by SMS message, but the router is in online mode after reboot. • SMS messages do not change the router configuration. They remain in effect only until the router is rebooted. ICR-4453 Hardware Manual...
- Page 50 Web interface in "Configuration" section, "Services", "SSH". Then connect with any SSH client on port 22 of the router. User and password is the same as for the Web interface. Telnet on v2 routers can be enabled here: "Configuration" section, "Services", "Telnet". ICR-4453 Hardware Manual...
- Page 51 +1-800-346-3119 (Monday – Friday, 7 a.m. to 5:30 p.m. CST) Fax: +1-815-433-5109 E-mail: support.iiot.ana@advantech.com Web: www.advantech.com Customer Support for Asia Phone: +886-2-2792-7818 #1299 (Monday – Friday, 9 a.m. to 5:30 p.m. UTC+8) Fax: +886-2-2794-7327 E-mail: icg.support@advantech.com.tw Web: www.advantech.com ICR-4453 Hardware Manual...
- Page 52 At the end of it’s life this pro- duct MUST NOT be mixed with other commercial waste for disposal. The device contains a battery. Remove the battery from the device before disposal. The battery in the device needs to be disposed of apart accordingly. Check the terms and conditions of your supplier for disposal information. ICR-4453 Hardware Manual...
- Page 53 Appendix D: Related Documents ICR-4400 Configuration Manual [EP] Product-related documents and applications can be obtained on Engineering Portal at https://icr.advantech.com/download address. ICR-4453 Hardware Manual...
- Page 54 We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Directive 2014/53/EU. We, Advantech Czech s.r.o., declare that the radio equipment narrated in this user’s manual complies with Radio Equipment Regulations 2017 (S.I. 2017 No. 1206).
