- Page 1 CDMA Industrial Router CR10 v2 USER MANUAL LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
- Page 2 Website www.advantech- bb.com c 2020 Advantech Czech s.r.o. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photography, recording, or any information storage and retrieval system without written consent. Information in this manual is subject to change without notice, and does not represent a commitment on the part of Advantech.
- Page 3 Please see http://ep.advantech- bb.cz/devzone for more information. Advantech Czech s.r.o., Sokolska 71, 562 04 Usti nad Orlici, Czech Republic Document No. MAN- 0051- EN, revision from January 17, 2020. Released in the Czech Republic. LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de...
-
Page 4: Table Of Contents
CR10 v2 Contents 1 Safety Instructions 2 WEEE directive 3 Router Description 4 Contents of Package 5 Router Design 5.1 Router versions ........ - Page 5 CR10 v2 7.1 Basic parameters ........
- Page 6 CR10 v2 List of Figures Contents of package ....... . .
- Page 7 CR10 v2 List of Tables Router versions ........
-
Page 8: Safety Instructions
CR10 v2 1. Safety Instructions Please, observe the following instructions: The router must be used in compliance with all applicable international and national laws and in compliance with any special restrictions regulating the utilization of the router in prescribed applications and environments. -
Page 9: Weee Directive
CR10 v2 2. Product Disposal Instructions The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) directive was in- troduced to ensure that electrical/electronic products are recycled using the best available recovery techniques in order to minimize impact on the environment. This product contains high quality materials and components which can be recycled. -
Page 10: Router Description
CR10 v2 3. Router Description CDMA router CR10 v2 is used to wirelessly connect various equipments and devices via Ethernet interface 10/100 to the Internet or intranet. Thanks to high data transfer speed of up to 14.7 Mbps (download) and upload speed up to 5.4 Mbps it is an ideal wireless solution for traffic and security camera systems, individual computers, LAN networks, automatic teller... -
Page 11: Contents Of Package
CR10 v2 4. Contents of Package Basic delivered set of router includes: router, power supply, crossover UTP cable, up to three external antennas, clip for the DIN rail, paper start guide. Figure 1: Contents of package Temperature range for power supply is reduced to 0 C to +40 C! -
Page 12: Router Design
CR10 v2 5. Router Design 5.1 Router versions CR10 v2 router is supplied in the following versions (see table below). All versions are available in plastic or metal box according to customer requirements. Router versions Router Box CR10 v2B Plastic... -
Page 13: Label Examples
CR10 v2 5.2 Delivery identification Trade name Order code Description CR10 v2B CR- 10- v2 Basic version CR10 v2B SL CR- 10- v2 Basic version in the metal box CR10 v2F CR- 10- v2 Full version CR10 v2F SL CR- 10- v2 Full version in the metal box Table 2: Delivery identification... -
Page 14: Type Of Port #1
CR10 v2 5.3 Order codes 5.3.1 Order code structure Order code has following structure: BB- CR2tuuvwxy , where: t = router version, B = basic version (1x SIM slot, 1x extension port), F = full version (2x SIM slot, 2x extension port), uu = version of firmware for CDMA module,... -
Page 15: Type Of Port #2
CR10 v2 Letter "w" – port #2 Port type Letter "w" in code none RS232 RS485 RS422 MBUS WiFi WMBUS Table 4: Type of port #2 Letter "x" – type of the router box Type of router box Letter "x" in code... -
Page 16: Basic Dimensions Of Plastic Box (Bottom And Front View)
CR10 v2 5.4 Basic dimensions of the router box 5.4.1 Plastic box Figure 9: Basic dimensions of plastic box (bottom and front view) 5.4.2 Metal box Figure 10: Basic dimensions of metal box (bottom and front view) LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 17: Space Around Antennas (Plastic)
CR10 v2 5.5 Mounting recommendations possibility to be put on a work surface, DIN rail EN 60715 with included plastic or metal clip. For the most of applications with a built- in router in a switch board it is possible to recognize... -
Page 18: Cable Routing (Plastic)
CR10 v2 For every cables we recommend to bind the bunch, we recommend for this use: – Length of the bunch (combination of power supply and data cables) can be maxi- mum 1.5 m. If the length of data cables exceeds 1.5 m or in the event of, the cable leads towards the switch –... -
Page 19: Default Position Of Plastic And Metal Din Rail Clip
CR10 v2 5.6 Removal from the DIN rail The DIN rail clip is suitable for a DIN rail according to EN 60715 standard only. The default position of plastic or metal rail clip, which is used for mounting the router on a DIN rail, is shown in the following figure. -
Page 20: Front Panel Cr10 V2F

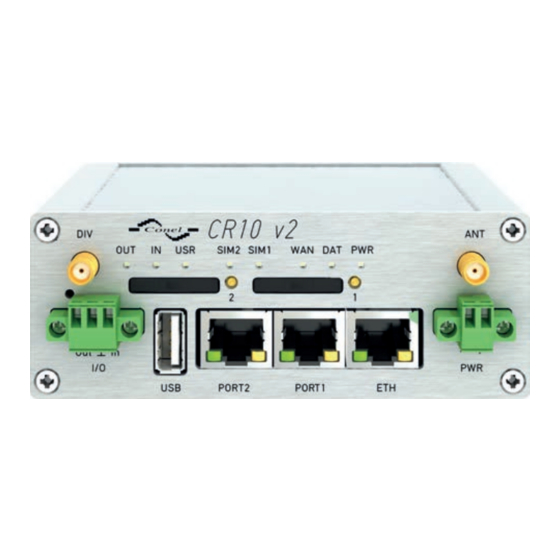

CR10 v2 5.7 Description of the front panel On the front panel is the following: Caption Connector Description 2- pin Connector for the power supply adapter. RJ45 Connector for connection into the local computer network. PORT1 RJ45 Connector for expansion port RS232, RS458/422, MBUS, ETHERNET, CNT or SWITCH. -
Page 21: Status Indication
CR10 v2 5.7.1 Status indication About router status inform eight LED indicators on the front panel. ETH port, PORT1 and PORT2 have two additional LEDs that provide information about port status. Caption Color State Description Green Blinking Router is ready... -
Page 22: Power Connector
CR10 v2 5.7.2 Power connector PWR Panel socket 2- pin. Pin number Signal mark Description VCC(+) Positive pole of DC supply voltage (+9 to +36 V DC) GND(- ) Negative pole of DC supply voltage Table 9: Connection of power connector Figure 20: Power connector Power supply for router is required between +9 V to +36 V DC supply. -
Page 23: Connecting Of The Antenna
CR10 v2 5.7.3 Antenna connector ANT, DIV (alternatively WIFI or WMBUS) Main and diversity antennas are connected to the router using the SMA connector on the front panel. If WIFI or WMBUS expansion port is equipped on customer’s request, the third SMA antenna connector is also available on the front panel. -
Page 24: Ejected Sim Holder
CR10 v2 5.7.4 SIM card reader The SIM card reader for 3 V and 1,8 V SIM cards is placed on the front panel of the router. For getting the router to work is necessary to insert an activated SIM card with an unblocked PIN code. -
Page 25: Ethernet Connector
CR10 v2 5.7.5 Ethernet Port ETH Panel socket RJ45. Signal mark Description Data flow direction TXD+ Transmit Data – positive pole Input/Output TXD- Transmit Data – negative pole Input/Output RXD+ Receive Data – positive pole Input/Output — — — —... -
Page 26: Port1 Cable Connection
CR10 v2 5.7.6 PORT1 The PORT1 is equipped on customer’s request with one of the offered expansion ports: RS232 MBUS RS485 RS422 SWITCH (together with PORT2) ETHERNET Description and examples of expansion ports connection can be found in user’s guide for corresponding expansion port. -
Page 27: Port2 Cable Connection
CR10 v2 Plug cable for the second expansion port into the RJ45 connector labeled as PORT2 (see the figure below). Figure 27: PORT2 cable connection 5.7.8 USB Port Panel socket USB- A. Signal mark Description Data flow direction +5 V Positive pole of 5 V DC supply voltage, 0.5 A... -
Page 28: O Connector
CR10 v2 5.7.9 I/O Port Panel socket 3- pin. Signal mark Description Data flow direction BIN0 Binary input Input Signal ground OUT0 Binary output Output Table 12: Connection of I/O port Figure 29: I/O connector I/O user interface is designed for processing of binary input and control (setting) binary output. -
Page 29: Connection Of Input And Output To The Router
CR10 v2 Example of a circuit describing connection of binary input and output to the router: Figure 31: Connection of input and output to the router LUCOM GmbH — Flößaustr. 22a — 90763 Fürth — Tel.: +49 911/ 957 606 00 — E-Mail: info@lucom.de — www.lucom.de... -
Page 30: Router Reset
CR10 v2 5.7.10 Reset When PWR LED starts flashing on the front panel, it is possible to restore the default con- figuration of the router by pressing the RST button on the front panel. After pressing this button the default configuration is restored and then router reboots (green LED will be on). -
Page 31: First Use
CR10 v2 6. First Use 6.1 Connecting the router before first use Before putting the router into operation it is necessary to connect all components which are required to run your applications. Don’t forget to insert SIM card. The router can not operate without a connected antenna, SIM card and power supply. If the antenna is not connected, router can be damaged. -
Page 32: Entering The Ip Address Of The Router
CR10 v2 6.2 Start The router is put into operation when the power supply is connected to this router. By default, the router will automatically start to log on to the default APN. DHCP server will start to assign addresses for devices on the Ethernet port ETH0. Router’s behavior can be changed via the web interface. -
Page 33: Router Web Interface
CR10 v2 After successfully entering login information user gains access to the router via his internet browser. Figure 36: Router web interface A detailed description of the router settings via the Web interface can be found in the document Configuration manual for v2 routers. -
Page 34: Technical Parameters
Metal box 42 x 87 x 113 mm (DIN 35 mm) Weight CR10 v2 – 150 g CR10 v2 SL – 280 g Antenna connector 2x SMA – 50 Ohm 1x R- SMA – 50 Ohm (only for WiFi) User interface Ethernet (10/100 Mbps) USB 2.0... -
Page 35: Technical Parameters Of Module
CR10 v2 7.3 Technical parameters of module CDMA module CDMA parameters Rev. A: Bit rate 3.1 Mbps (DL) / 1.8 Mbps (UL) Rev. B: Bit rate 14.7 Mbps (DL) / 5.4 Mbps (UL) Backward compatible with Rev.0 Transmit power 0.25 W... -
Page 36: Recommended Literature
CR10 v2 8. Related Documents Advantech Czech: Start Guide for v2 routers, Advantech Czech: Configuration Manual for v2 routers, Advantech Czech: User’s manual – Expansion port RS232, Advantech Czech: User’s manual – Expansion port RS485/RS422, Advantech Czech: User’s manual – Expansion port MBUS, Advantech Czech: User’s manual –... -
Page 37: Troubleshooting
CR10 v2 9. Troubleshooting If you cannot connect to the router from your PC, your network card may be configured in such a way that it is not possible to connect to the router. Take one or more of the following steps in order to solve the problem: Make sure your PC’s network card is configured to obtain the IP address form the... - Page 38 CR10 v2 In a private APN it is not recommended to get the DNS settings from operator (on "Mobile WAN" page) Go to "System Log" page in "Status" section and observe where the error occurs. I cannot connect from the Internet to the device behind the router. I have NAT enabled.
- Page 39 CR10 v2 Serial communication is not working. Verify that the router model supports serial communications. Also verify the serial communication settings. To do so, open the router’s configuration menu via the web browser, select the appropriate "Expansion Port" from "Configuration" part of the menu and verify the settings.
-
Page 40: Customers Support
During cleaning of the router do not use aggressive chemicals, solvents and abrasive cleaners! Hereby, Advantech Czech s.r.o. company declares that the radio equipment narrated in this user’s guide is in compliance with EU Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.advantech- bb.cz/eudoc...
